Material Review

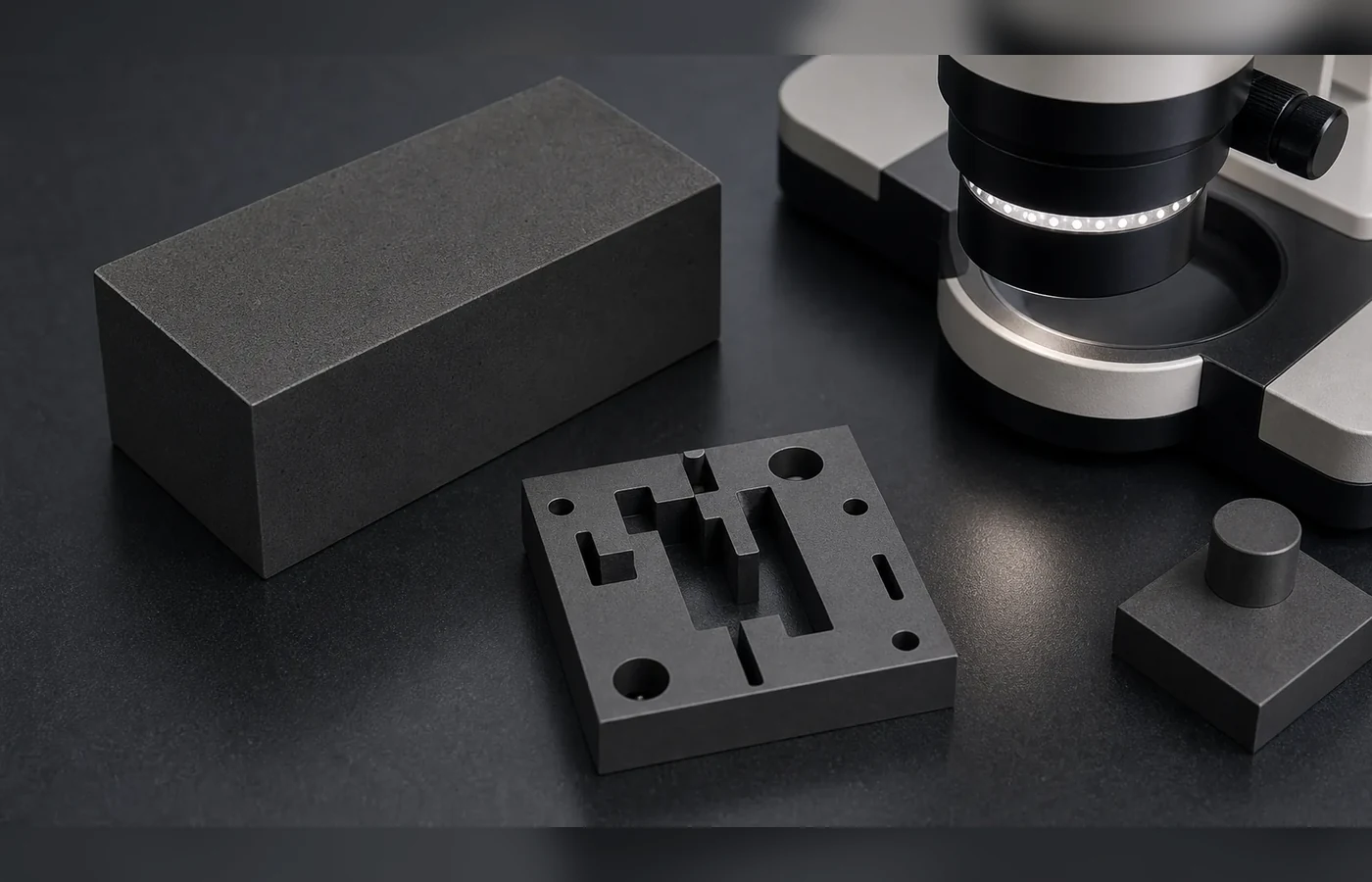

Conductive Silicon Carbide EDM Machining
Conductive Silicon Carbide is an electrically conductive ceramic composite grade that can be EDM processed only when its resistivity supports stable discharge. It is compatible with EDM, while feature access selects Wire, Sinker, Small Hole, or Micro EDM and the supplied condition sets support, finishing, surface control, and inspection.
Quick Answer
Conductive Silicon Carbide is electrically conductive and can be machined by EDM. Feature access selects the process; the exact condition then sets support, finishing, post-processing, and inspection. The main concern is that ceramic brittleness, porosity and edge chipping can dominate even when conductivity is adequate.
Key Material Decisions
How This Material Behaves
Its condition changes dimensional stability, discharge response, surface-integrity risk, and the finishing plan.
Choosing the Right Condition
Select Wire EDM for through profiles, Sinker EDM for blind cavities, Small Hole EDM for small or deep holes, and Micro EDM for miniature features. State the exact Conductive Silicon Carbide condition before assigning tolerance and finish.
Risks to Manage
The main material risk is clear: Ceramic brittleness, porosity and edge chipping can dominate even when conductivity is adequate. We manage it with condition-aware support, selective finishing, and inspection of the functional faces rather than one whole-part requirement.
How the EDM Route Is Selected
Feature access chooses the EDM route. The supplied Conductive Silicon Carbide condition then changes support, discharge energy, finishing passes, post-processing, and the method used to verify the result.
Conductive Silicon Carbide EDM Process Reference
| What you're asking | What you can expect |
|---|---|
| Through profiles | Wire EDM |
| Blind cavities and ribs | Sinker EDM |
| Small or deep holes | Small Hole EDM |
| Miniature holes, slots, or cavities | Micro EDM |
| Material-specific concern | ceramic brittleness, porosity and edge chipping can dominate even when conductivity is adequate |
Material Condition Reference
| Condition | What to expect | Watch out for | Surface notes |
|---|---|---|---|
| as-sintered or supplied condition | Use low-force fixturing and conservative discharge energy. | Brittle edges can chip or binder-rich zones can erode unevenly. | Inspect edge breakout and surface integrity rather than Ra alone. |
| stress-relieved or recrystallized | Use stable support and reduced energy on finished stock. | Grinding stress or porosity can cause local cracking. | Apply selective polishing or lapping where practical. |
| ground or finished condition | Protect the final surface condition. | Coated, polished, or dense finished surfaces can be damaged by aggressive roughing. | Keep finishing local to the controlled feature. |
How This Material Behaves
Conductive silicon carbide is an electrically machinable ceramic only when its grade provides sufficient conductivity. In EDM, this means brittle fracture and thermal cracking, not hardness, set the practical limit; pores or secondary phases can also create uneven erosion. Confirm the exact conductive grade, support fragile edges, use low-energy finishing, and inspect cracks and grain pullout directly.
Surface Integrity and Post-Process
For Conductive Silicon Carbide, use conservative energy, strong support and inspection focused on edge chipping and subsurface damage. Mark fatigue, seal, wear, contact, corrosion, or cosmetic faces separately so nonfunctional surfaces are not over-finished.
Conductive Silicon Carbide Planning Checkpoints
- State the exact grade and supplied condition: as-sintered or supplied condition, stress-relieved or recrystallized, and ground or finished condition.
- Mark through features, blind forms, holes, and miniature details so each feature is routed to the correct EDM process.
- Identify critical datums, functional surfaces, corrosion protection, and any dimensional or metallurgical inspection.
Typical Parts
- wear inserts
- high-temperature contacts
- hard-metal nozzles
- precision refractory features
Limits and Better Alternatives
Main Limit
For Conductive Silicon Carbide, EDM requires a conductive workpiece and offers little advantage on open, loose-tolerance geometry that conventional machining can reach faster. Ceramic brittleness, porosity and edge chipping can dominate even when conductivity is adequate.
Consider Another Route When
Use CNC or grinding for accessible open geometry and simple precision faces; reserve EDM for hardness, access, sharp corners, deep small holes, and burr-free edges.
Practical Next Step
For a Conductive Silicon Carbide EDM quote, send the drawing, exact material condition, critical dimensions, functional surface requirements, quantity, and inspection expectations. If the condition or process is uncertain, send the available material specification and drawing for review.
Practical Takeaway
Conductive Silicon Carbide is suitable for EDM. Feature access selects the process, and the supplied condition determines support, finishing, surface control, and inspection.
