Material Review

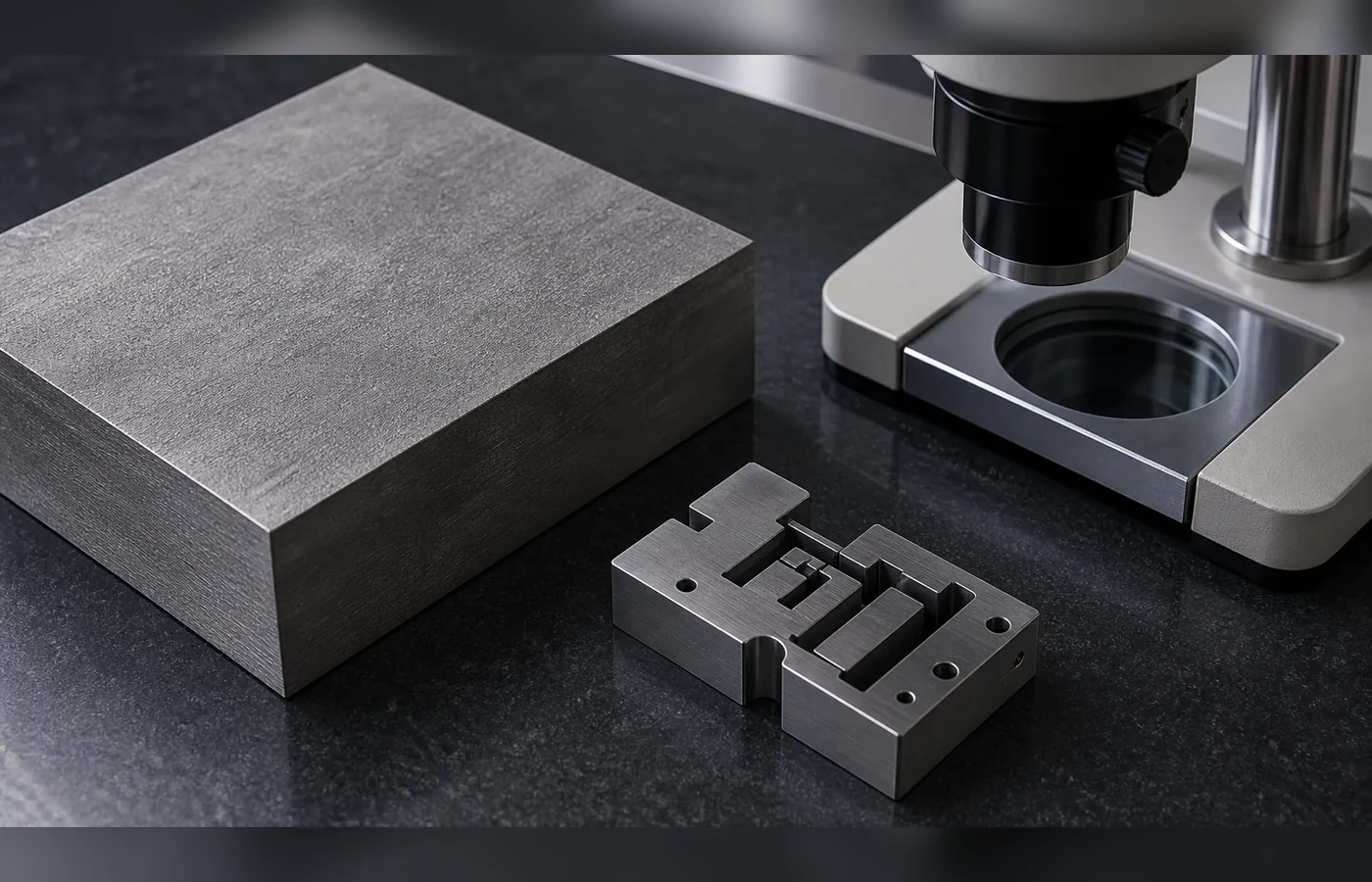

Molybdenum EDM Machining
Molybdenum is a refractory metal with high melting temperature, good conductivity and limited room-temperature ductility in some forms. It is compatible with EDM, while feature access selects Wire, Sinker, Small Hole, or Micro EDM and the supplied condition sets support, finishing, surface control, and inspection.
Quick Answer
Molybdenum is electrically conductive and can be machined by EDM. Feature access selects the process; the exact condition then sets support, finishing, post-processing, and inspection. The main concern is that brittle edge behavior, grain direction and thin-feature support require conservative energy.
Key Material Decisions
How This Material Behaves
Its condition changes dimensional stability, discharge response, surface-integrity risk, and the finishing plan.
Choosing the Right Condition
Select Wire EDM for through profiles, Sinker EDM for blind cavities, Small Hole EDM for small or deep holes, and Micro EDM for miniature features. State the exact Molybdenum condition before assigning tolerance and finish.
Risks to Manage
The main material risk is clear: Brittle edge behavior, grain direction and thin-feature support require conservative energy. We manage it with condition-aware support, selective finishing, and inspection of the functional faces rather than one whole-part requirement.
How the EDM Route Is Selected
Feature access chooses the EDM route. The supplied Molybdenum condition then changes support, discharge energy, finishing passes, post-processing, and the method used to verify the result.
Molybdenum EDM Process Reference
| What you're asking | What you can expect |
|---|---|
| Through profiles | Wire EDM |
| Blind cavities and ribs | Sinker EDM |
| Small or deep holes | Small Hole EDM |
| Miniature holes, slots, or cavities | Micro EDM |
| Material-specific concern | brittle edge behavior, grain direction and thin-feature support require conservative energy |
Material Condition Reference
| Condition | What to expect | Watch out for | Surface notes |
|---|---|---|---|
| as-sintered or supplied condition | Use low-force fixturing and conservative discharge energy. | Brittle edges can chip or binder-rich zones can erode unevenly. | Inspect edge breakout and surface integrity rather than Ra alone. |
| stress-relieved or recrystallized | Use stable support and reduced energy on finished stock. | Grinding stress or porosity can cause local cracking. | Apply selective polishing or lapping where practical. |
How This Material Behaves
Molybdenum is a refractory metal with high melting temperature but limited room-temperature ductility. In EDM, this means fine corners can chip and thermal gradients can create microcracks even though the material is electrically machinable. Use low-energy finishing, avoid unsupported sharp edges, and verify crack-sensitive surfaces with microscopy rather than visual inspection alone.
Surface Integrity and Post-Process
For Molybdenum, use conservative energy, strong support and inspection focused on edge chipping and subsurface damage. Mark fatigue, seal, wear, contact, corrosion, or cosmetic faces separately so nonfunctional surfaces are not over-finished.
Molybdenum Planning Checkpoints
- State the exact grade and supplied condition: as-sintered or supplied condition and stress-relieved or recrystallized.
- Mark through features, blind forms, holes, and miniature details so each feature is routed to the correct EDM process.
- Identify critical datums, functional surfaces, corrosion protection, and any dimensional or metallurgical inspection.
Typical Parts
- wear inserts
- high-temperature contacts
- hard-metal nozzles
- precision refractory features
Limits and Better Alternatives
Main Limit
For Molybdenum, EDM requires a conductive workpiece and offers little advantage on open, loose-tolerance geometry that conventional machining can reach faster. Brittle edge behavior, grain direction and thin-feature support require conservative energy.
Consider Another Route When
Use CNC or grinding for accessible open geometry and simple precision faces; reserve EDM for hardness, access, sharp corners, deep small holes, and burr-free edges.
Practical Next Step
For a Molybdenum EDM quote, send the drawing, exact material condition, critical dimensions, functional surface requirements, quantity, and inspection expectations. If the condition or process is uncertain, send the available material specification and drawing for review.
Practical Takeaway
Molybdenum is suitable for EDM. Feature access selects the process, and the supplied condition determines support, finishing, surface control, and inspection.
Technical Reference
Use the values as planning references and define the functional requirement on the controlled drawing.
