Material Review

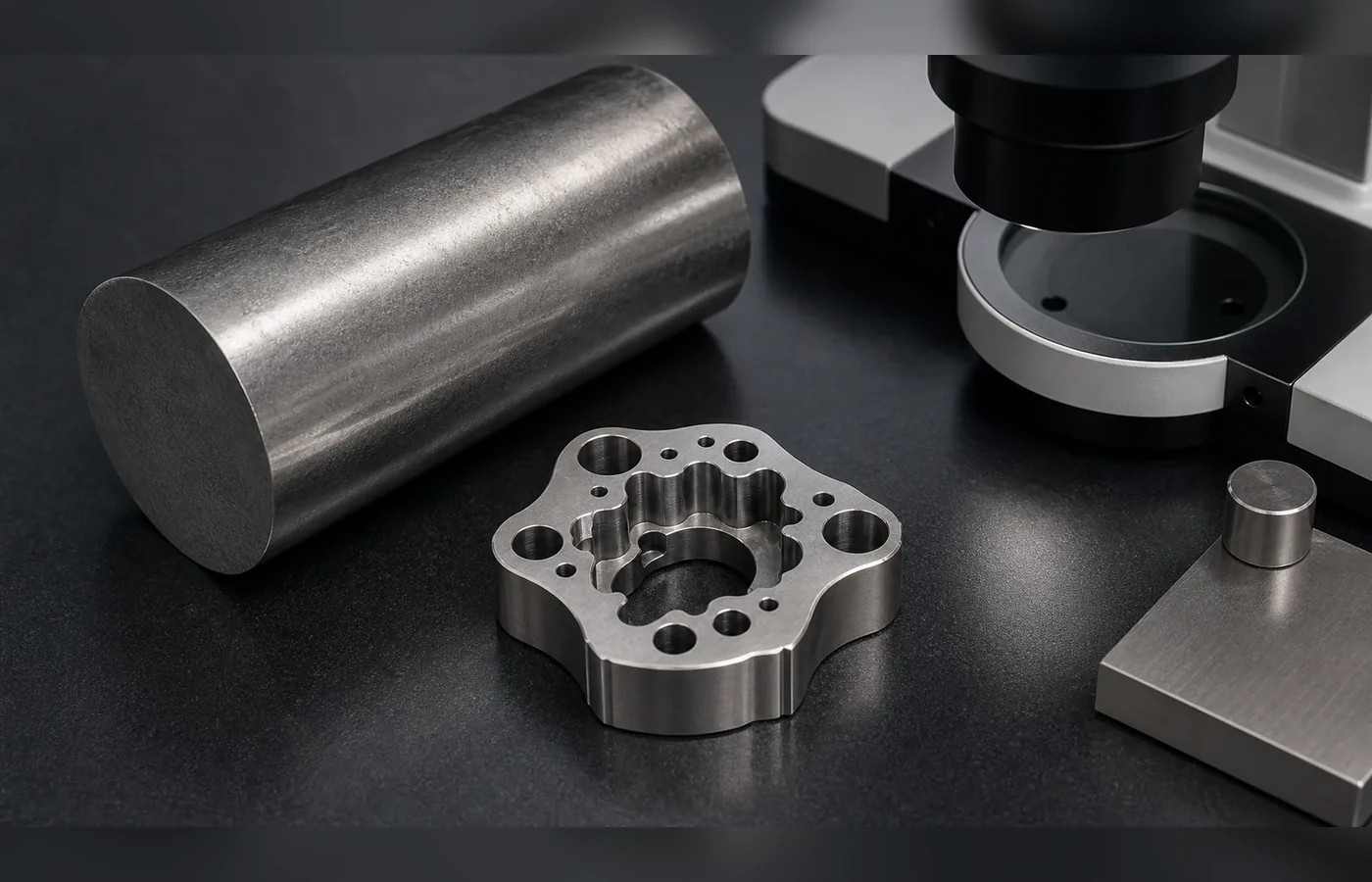

Cobalt Chrome EDM Machining
Cobalt Chrome is a hard corrosion-resistant cobalt alloy used for wear, medical and high-temperature features. It is compatible with EDM, while feature access selects Wire, Sinker, Small Hole, or Micro EDM and the supplied condition sets support, finishing, surface control, and inspection.
Quick Answer
Cobalt Chrome is electrically conductive and can be machined by EDM. Feature access selects the process; the exact condition then sets support, finishing, post-processing, and inspection. The main concern is that brittle edge behavior and fatigue-critical surfaces make recast and microcrack review important.
Key Material Decisions
How This Material Behaves
Its condition changes dimensional stability, discharge response, surface-integrity risk, and the finishing plan.
Choosing the Right Condition
Select Wire EDM for through profiles, Sinker EDM for blind cavities, Small Hole EDM for small or deep holes, and Micro EDM for miniature features. State the exact Cobalt Chrome condition before assigning tolerance and finish.
Risks to Manage
The main material risk is clear: Brittle edge behavior and fatigue-critical surfaces make recast and microcrack review important. We manage it with condition-aware support, selective finishing, and inspection of the functional faces rather than one whole-part requirement.
How the EDM Route Is Selected
Feature access chooses the EDM route. The supplied Cobalt Chrome condition then changes support, discharge energy, finishing passes, post-processing, and the method used to verify the result.
Cobalt Chrome EDM Process Reference
| What you're asking | What you can expect |
|---|---|
| Through profiles | Wire EDM |
| Blind cavities and ribs | Sinker EDM |
| Small or deep holes | Small Hole EDM |
| Miniature holes, slots, or cavities | Micro EDM |
| Material-specific concern | brittle edge behavior and fatigue-critical surfaces make recast and microcrack review important |
Material Condition Reference
| Condition | What to expect | Watch out for | Surface notes |
|---|---|---|---|
| solution annealed | Use stable support and conservative energy. | High-temperature alloys can retain a hard recast layer. | Identify fatigue and hot-section faces before finishing. |
| cold-worked or stabilized | Account for cold-work and service stress. | Thin features can move and electrode wear can grow corners. | Use low-energy finishing and selective metallurgical inspection. |
| age-hardened or service condition | Use the final aged or service condition only with explicit surface requirements. | Microcracks and tensile residual stress can reduce fatigue life. | Remove or limit recast on fatigue-critical faces. |
How This Material Behaves
Cobalt-chrome alloys combine high hardness, wear resistance, and low thermal conductivity. In EDM, this means heat remains concentrated near the discharge zone, increasing recast and microcrack risk on fatigue, wear, or medical surfaces. Use progressive low-energy finishing, keep edges well supported, and specify recast removal or metallographic verification on critical faces.
Surface Integrity and Post-Process
For Cobalt Chrome, use lower-energy finishing and inspect critical surfaces when fatigue, sealing or corrosion performance is specified. Mark fatigue, seal, wear, contact, corrosion, or cosmetic faces separately so nonfunctional surfaces are not over-finished.
Cobalt Chrome Planning Checkpoints
- State the exact grade and supplied condition: solution annealed, cold-worked or stabilized, and age-hardened or service condition.
- Mark through features, blind forms, holes, and miniature details so each feature is routed to the correct EDM process.
- Identify critical datums, functional surfaces, corrosion protection, and any dimensional or metallurgical inspection.
Typical Parts
- turbine and energy features
- corrosion-resistant inserts
- precision seals
- instrument components
Limits and Better Alternatives
Main Limit
For Cobalt Chrome, EDM requires a conductive workpiece and offers little advantage on open, loose-tolerance geometry that conventional machining can reach faster. Brittle edge behavior and fatigue-critical surfaces make recast and microcrack review important.
Consider Another Route When
Use CNC or grinding for accessible open geometry and simple precision faces; reserve EDM for hardness, access, sharp corners, deep small holes, and burr-free edges.
Practical Next Step
For a Cobalt Chrome EDM quote, send the drawing, exact material condition, critical dimensions, functional surface requirements, quantity, and inspection expectations. If the condition or process is uncertain, send the available material specification and drawing for review.
Practical Takeaway
Cobalt Chrome is suitable for EDM. Feature access selects the process, and the supplied condition determines support, finishing, surface control, and inspection.
Additional Project Information
Include application, destination and end-use notes together with the material, quantity and drawing requirements.
Project Details for Technical Review
Include application and end-use notes when they affect material, inspection, documentation, or export review.
- Material: Cobalt Chrome
- Drawing or part sketch
- Material grade
- Thickness / part size
- Quantity
- Tolerance and critical dimensions
- Surface finish or inspection requirement
STEP/STP, DXF, DWG, PDF, IGS/IGES or ZIP.
Confidential drawing review. NDA support available on request.
Frequently Asked Questions
Can Cobalt Chrome be machined by EDM?
Yes. Use Wire EDM for through profiles, Sinker EDM for blind cavities, Small Hole EDM for difficult holes, and Micro EDM for miniature features. The process choice follows the geometry, not the material name alone.
How does the condition of Cobalt Chrome affect the job?
The condition changes support, residual-stress response, finishing energy, dimensional stability, and surface-integrity requirements. State the supplied condition; if it is unknown, send the material specification.
What is the main risk with Cobalt Chrome?
Brittle edge behavior and fatigue-critical surfaces make recast and microcrack review important. We manage this with condition-aware fixturing, appropriate finishing energy, and process-specific inspection on the functional faces.
What information is needed for a quote?
Send the drawing, exact Cobalt Chrome condition, critical dimensions, surface requirements, quantity, and inspection expectations. If some details are unknown, send what you have and we will help complete the review.
