Material Review

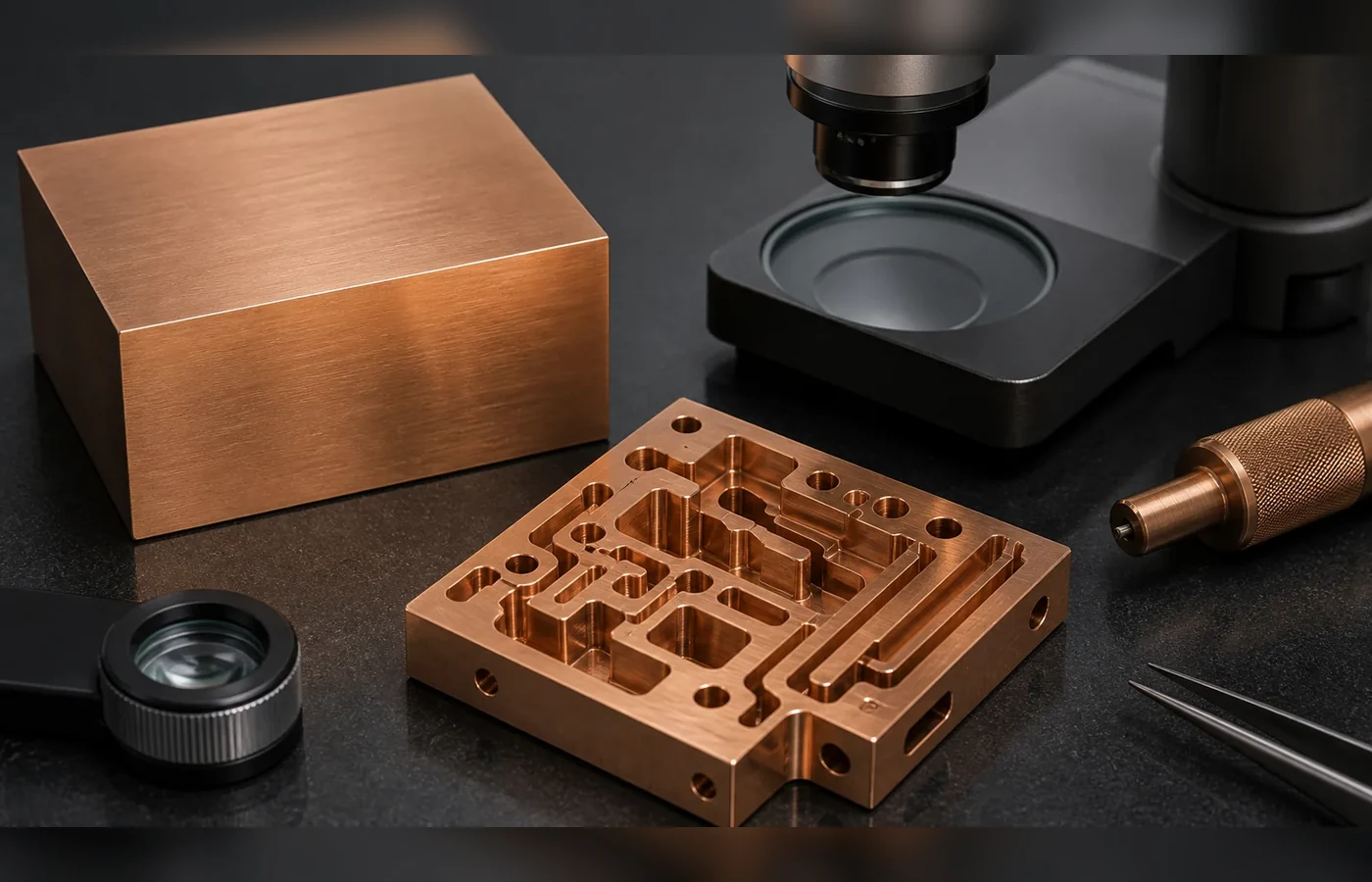

Beryllium Copper EDM Machining
Beryllium Copper is age-hardenable copper alloy used for conductive spring and tooling features. It is compatible with EDM, while feature access selects Wire, Sinker, Small Hole, or Micro EDM and the supplied condition sets support, finishing, surface control, and inspection.
Quick Answer
Beryllium Copper is electrically conductive and can be machined by EDM. Feature access selects the process; the exact condition then sets support, finishing, post-processing, and inspection. The main concern is that heat-treatment condition and safe downstream handling must be identified.
Key Material Decisions
How This Material Behaves
Its condition changes dimensional stability, discharge response, surface-integrity risk, and the finishing plan.
Choosing the Right Condition
Select Wire EDM for through profiles, Sinker EDM for blind cavities, Small Hole EDM for small or deep holes, and Micro EDM for miniature features. State the exact Beryllium Copper condition before assigning tolerance and finish.
Risks to Manage
The main material risk is clear: Heat-treatment condition and safe downstream handling must be identified. We manage it with condition-aware support, selective finishing, and inspection of the functional faces rather than one whole-part requirement.
How the EDM Route Is Selected
Feature access chooses the EDM route. The supplied Beryllium Copper condition then changes support, discharge energy, finishing passes, post-processing, and the method used to verify the result.
Beryllium Copper EDM Process Reference
| What you're asking | What you can expect |
|---|---|
| Through profiles | Wire EDM |
| Blind cavities and ribs | Sinker EDM |
| Small or deep holes | Small Hole EDM |
| Miniature holes, slots, or cavities | Micro EDM |
| Material-specific concern | heat-treatment condition and safe downstream handling must be identified |
Material Condition Reference
| Condition | What to expect | Watch out for | Surface notes |
|---|---|---|---|
| solution annealed | Use gentle fixturing and adjust energy for high conductivity. | Soft edges can mark or roll under poor support. | Keep contact, bearing, and cosmetic faces as separate finish requirements. |
| cold-worked | Balance work-hardening stress with wear compensation. | Thin sections can move and micro features can round as electrodes wear. | Inspect edge radius and functional texture. |
| age-hardened | Use conservative finishing on hard-drawn or aged stock. | Over-finishing can remove useful texture or shift contact dimensions. | Apply finishing only to functional faces. |
How This Material Behaves
Beryllium copper changes markedly between solution-treated and age-hardened conditions. In EDM, this means hardness, springback, residual stress, and contact-surface behavior depend on the exact temper, while a thermally altered layer can reduce fatigue or electrical performance. State the alloy and age condition, support spring features, and keep recast, cleanliness, and plating requirements separate from Ra.
Surface Integrity and Post-Process
For Beryllium Copper, use gentle fixturing and a finish strategy that protects contact, sealing or heat-transfer surfaces. Mark fatigue, seal, wear, contact, corrosion, or cosmetic faces separately so nonfunctional surfaces are not over-finished.
Beryllium Copper Planning Checkpoints
- State the exact grade and supplied condition: solution annealed, cold-worked, and age-hardened.
- Mark through features, blind forms, holes, and miniature details so each feature is routed to the correct EDM process.
- Identify critical datums, functional surfaces, corrosion protection, and any dimensional or metallurgical inspection.
Typical Parts
- electrical contacts
- electrodes
- busbar details
- bearing and heat-transfer features
Limits and Better Alternatives
Main Limit
For Beryllium Copper, EDM requires a conductive workpiece and offers little advantage on open, loose-tolerance geometry that conventional machining can reach faster. Heat-treatment condition and safe downstream handling must be identified.
Consider Another Route When
Use CNC or grinding for accessible open geometry and simple precision faces; reserve EDM for hardness, access, sharp corners, deep small holes, and burr-free edges.
Practical Next Step
For a Beryllium Copper EDM quote, send the drawing, exact material condition, critical dimensions, functional surface requirements, quantity, and inspection expectations. If the condition or process is uncertain, send the available material specification and drawing for review.
Practical Takeaway
Beryllium Copper is suitable for EDM. Feature access selects the process, and the supplied condition determines support, finishing, surface control, and inspection.
Additional Project Information
Include application, destination and end-use notes together with the material, quantity and drawing requirements.
Project Details for Technical Review
Include application and end-use notes when they affect material, inspection, documentation, or export review.
- Material: Beryllium Copper
- Drawing or part sketch
- Material grade
- Thickness / part size
- Quantity
- Tolerance and critical dimensions
- Surface finish or inspection requirement
STEP/STP, DXF, DWG, PDF, IGS/IGES or ZIP.
Confidential drawing review. NDA support available on request.
Frequently Asked Questions
Can Beryllium Copper be machined by EDM?
Yes. Use Wire EDM for through profiles, Sinker EDM for blind cavities, Small Hole EDM for difficult holes, and Micro EDM for miniature features. The process choice follows the geometry, not the material name alone.
How does the condition of Beryllium Copper affect the job?
The condition changes support, residual-stress response, finishing energy, dimensional stability, and surface-integrity requirements. State the supplied condition; if it is unknown, send the material specification.
What is the main risk with Beryllium Copper?
Heat-treatment condition and safe downstream handling must be identified. We manage this with condition-aware fixturing, appropriate finishing energy, and process-specific inspection on the functional faces.
What information is needed for a quote?
Send the drawing, exact Beryllium Copper condition, critical dimensions, surface requirements, quantity, and inspection expectations. If some details are unknown, send what you have and we will help complete the review.
