Tungsten Copper EDM Machining

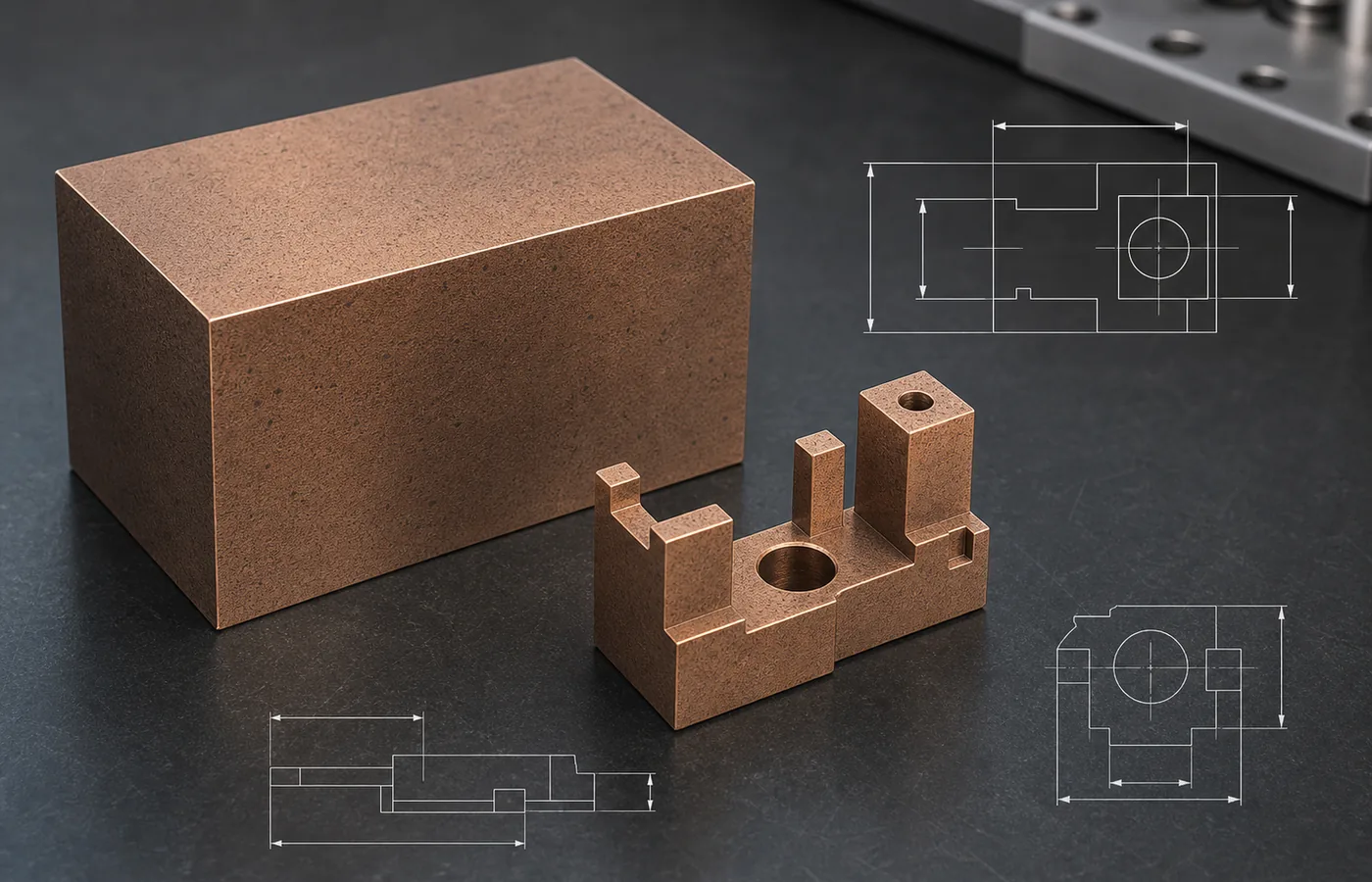

Tungsten Copper is a powder-metallurgy tungsten-copper composite combining refractory skeleton with conductive copper. It is compatible with EDM, while feature access selects Wire, Sinker, Small Hole, or Micro EDM and the supplied condition sets support, finishing, surface control, and inspection.
Quick Answer
Tungsten Copper is electrically conductive and can be machined by EDM. Feature access selects the process; the exact condition then sets support, finishing, post-processing, and inspection. The main concern is that local composition, porosity and brittle tungsten-rich edges can create nonuniform discharge and chipping.
Key Material Decisions
How This Material Behaves
Its condition changes dimensional stability, discharge response, surface-integrity risk, and the finishing plan.
Choosing the Right Condition
Select Wire EDM for through profiles, Sinker EDM for blind cavities, Small Hole EDM for small or deep holes, and Micro EDM for miniature features. State the exact Tungsten Copper condition before assigning tolerance and finish.
Risks to Manage
The main material risk is clear: Local composition, porosity and brittle tungsten-rich edges can create nonuniform discharge and chipping. We manage it with condition-aware support, selective finishing, and inspection of the functional faces rather than one whole-part requirement.
How the EDM Route Is Selected
Feature access chooses the EDM route. The supplied Tungsten Copper condition then changes support, discharge energy, finishing passes, post-processing, and the method used to verify the result.
Tungsten Copper EDM Process Reference
| What you're asking | What you can expect |
|---|---|
| Through profiles | Wire EDM |
| Blind cavities and ribs | Sinker EDM |
| Small or deep holes | Small Hole EDM |
| Miniature holes, slots, or cavities | Micro EDM |
| Material-specific concern | local composition, porosity and brittle tungsten-rich edges can create nonuniform discharge and chipping |
Material Condition Reference
| Condition | What to expect | Watch out for | Surface notes |
|---|---|---|---|
| annealed | Use gentle fixturing and adjust energy for high conductivity. | Soft edges can mark or roll under poor support. | Keep contact, bearing, and cosmetic faces as separate finish requirements. |
| half-hard or work-hardened | Balance work-hardening stress with wear compensation. | Thin sections can move and micro features can round as electrodes wear. | Inspect edge radius and functional texture. |
How This Material Behaves
Tungsten copper is a composite in which refractory tungsten and conductive copper respond differently to each discharge. In EDM, this means the copper phase can erode faster, leaving texture variation or undercut around tungsten-rich regions. Use stable low-energy finishing, avoid assuming one uniform removal rate, and inspect functional faces for local erosion and edge integrity.
Surface Integrity and Post-Process
For Tungsten Copper, use gentle fixturing and a finish strategy that protects contact, sealing or heat-transfer surfaces. Mark fatigue, seal, wear, contact, corrosion, or cosmetic faces separately so nonfunctional surfaces are not over-finished.
Tungsten Copper Planning Checkpoints
- State the exact grade and supplied condition: annealed and half-hard or work-hardened.
- Mark through features, blind forms, holes, and miniature details so each feature is routed to the correct EDM process.
- Identify critical datums, functional surfaces, corrosion protection, and any dimensional or metallurgical inspection.
Typical Parts
- electrical contacts
- electrodes
- busbar details
- bearing and heat-transfer features
Limits and Better Alternatives
Main Limit
For Tungsten Copper, EDM requires a conductive workpiece and offers little advantage on open, loose-tolerance geometry that conventional machining can reach faster. Local composition, porosity and brittle tungsten-rich edges can create nonuniform discharge and chipping.
Consider Another Route When
Use CNC or grinding for accessible open geometry and simple precision faces; reserve EDM for hardness, access, sharp corners, deep small holes, and burr-free edges.
Practical Next Step
For a Tungsten Copper EDM quote, send the drawing, exact material condition, critical dimensions, functional surface requirements, quantity, and inspection expectations. If the condition or process is uncertain, send the available material specification and drawing for review.
Practical Takeaway
Tungsten Copper is suitable for EDM. Feature access selects the process, and the supplied condition determines support, finishing, surface control, and inspection.
