Material Review

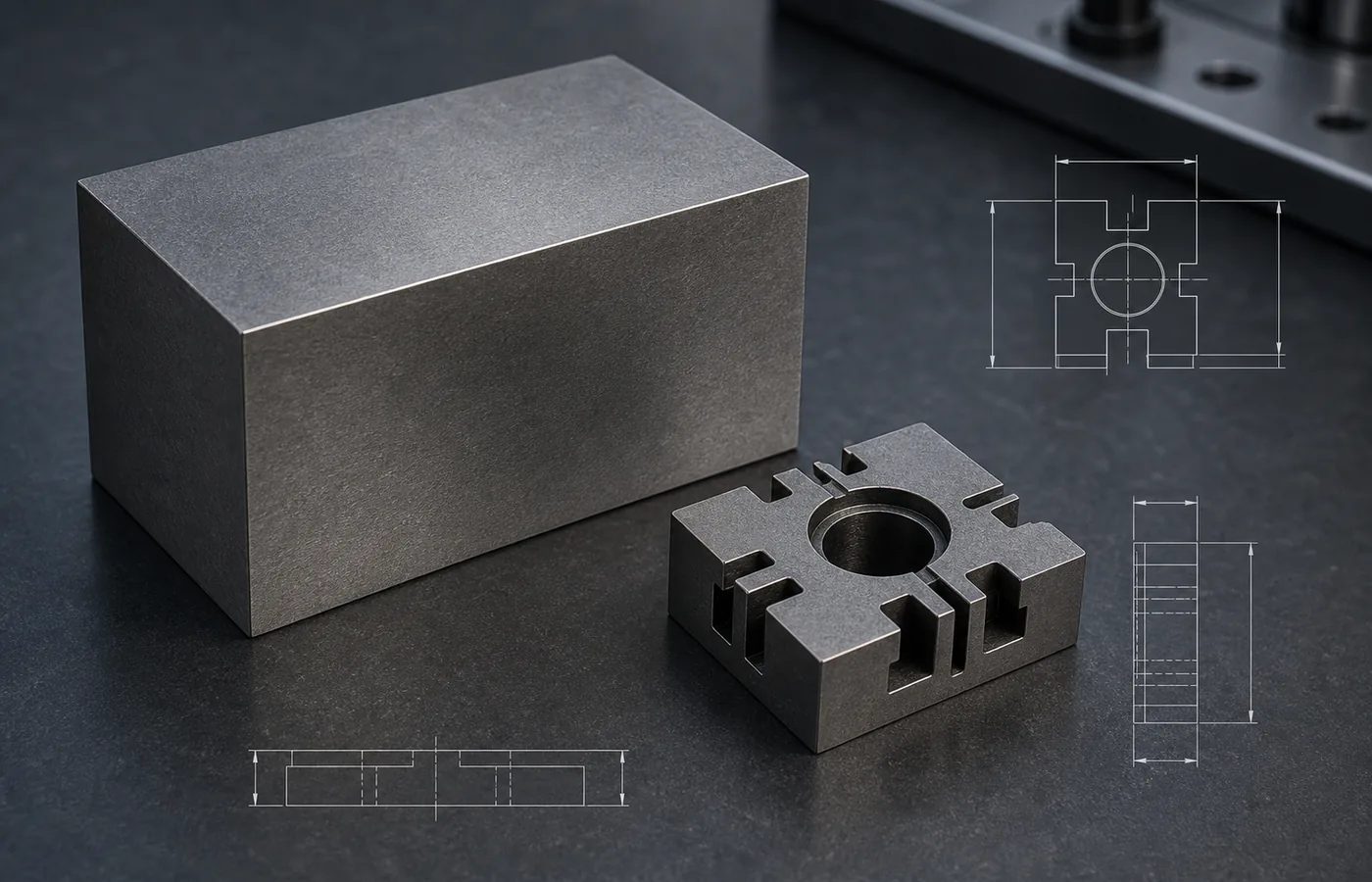

Tungsten Carbide EDM Machining
Tungsten Carbide is hard, brittle composite whose binder content affects conductivity and fracture behavior. It is compatible with EDM, while feature access selects Wire, Sinker, Small Hole, or Micro EDM and the supplied condition sets support, finishing, surface control, and inspection.
Quick Answer
Tungsten Carbide is electrically conductive and can be machined by EDM. Feature access selects the process; the exact condition then sets support, finishing, post-processing, and inspection. The main concern is that edge chipping and microcracks matter more than nominal bulk hardness.
Key Material Decisions
How This Material Behaves
Its condition changes dimensional stability, discharge response, surface-integrity risk, and the finishing plan.
Choosing the Right Condition
Select Wire EDM for through profiles, Sinker EDM for blind cavities, Small Hole EDM for small or deep holes, and Micro EDM for miniature features. State the exact Tungsten Carbide condition before assigning tolerance and finish.
Risks to Manage
The main material risk is clear: Edge chipping and microcracks matter more than nominal bulk hardness. We manage it with condition-aware support, selective finishing, and inspection of the functional faces rather than one whole-part requirement.
How the EDM Route Is Selected
Feature access chooses the EDM route. The supplied Tungsten Carbide condition then changes support, discharge energy, finishing passes, post-processing, and the method used to verify the result.
Tungsten Carbide EDM Process Reference
| What you're asking | What you can expect |
|---|---|
| Through profiles | Wire EDM |
| Blind cavities and ribs | Sinker EDM |
| Small or deep holes | Small Hole EDM |
| Miniature holes, slots, or cavities | Micro EDM |
| Material-specific concern | edge chipping and microcracks matter more than nominal bulk hardness |
Material Condition Reference
| Condition | What to expect | Watch out for | Surface notes |
|---|---|---|---|
| as-sintered | Use low-force fixturing and conservative discharge energy. | Brittle edges can chip or binder-rich zones can erode unevenly. | Inspect edge breakout and surface integrity rather than Ra alone. |
| ground finish | Use stable support and reduced energy on finished stock. | Grinding stress or porosity can cause local cracking. | Apply selective polishing or lapping where practical. |
How This Material Behaves
Tungsten carbide is a hard WC grain structure bonded with cobalt or nickel. In EDM, this means binder content and grain size control erosion, edge strength, and crack sensitivity; the metallic binder can be removed faster than the carbide. Match energy to the grade, use fine finishing on cutting edges, and inspect for grain pullout and microcracks.
Surface Integrity and Post-Process
For Tungsten Carbide, use conservative energy, strong support and inspection focused on edge chipping and subsurface damage. Mark fatigue, seal, wear, contact, corrosion, or cosmetic faces separately so nonfunctional surfaces are not over-finished.
Tungsten Carbide Planning Checkpoints
- State the exact grade and supplied condition: as-sintered and ground finish.
- Mark through features, blind forms, holes, and miniature details so each feature is routed to the correct EDM process.
- Identify critical datums, functional surfaces, corrosion protection, and any dimensional or metallurgical inspection.
Typical Parts
- wear inserts
- high-temperature contacts
- hard-metal nozzles
- precision refractory features
Limits and Better Alternatives
Main Limit
For Tungsten Carbide, EDM requires a conductive workpiece and offers little advantage on open, loose-tolerance geometry that conventional machining can reach faster. Edge chipping and microcracks matter more than nominal bulk hardness.
Consider Another Route When
Use CNC or grinding for accessible open geometry and simple precision faces; reserve EDM for hardness, access, sharp corners, deep small holes, and burr-free edges.
Practical Next Step
For a Tungsten Carbide EDM quote, send the drawing, exact material condition, critical dimensions, functional surface requirements, quantity, and inspection expectations. If the condition or process is uncertain, send the available material specification and drawing for review.
Practical Takeaway
Tungsten Carbide is suitable for EDM. Feature access selects the process, and the supplied condition determines support, finishing, surface control, and inspection.
