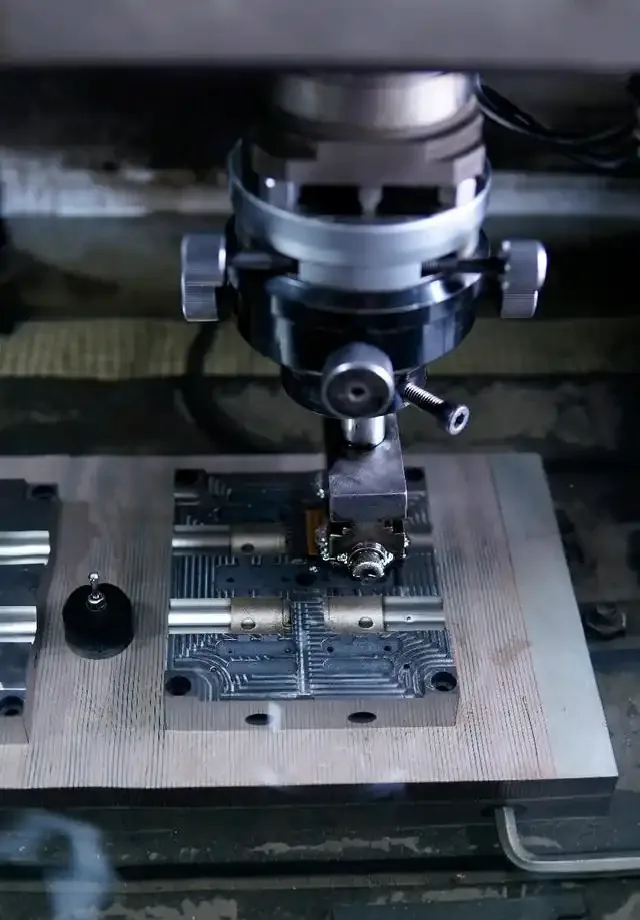

Tooling Inserts
Mold inserts, fixture blocks and tooling components where slots, pockets, internal profiles and edge condition may require EDM review.
EDM Sample Parts Gallery
EDM-machined part and feature examples for slots, holes, tooling inserts, conductive materials and drawing-based quotation discussions.
Use this gallery to compare your part features with common EDM-machined examples. These images are references for quotation discussions; final feasibility depends on the drawing, material grade, tolerance, surface finish, quantity and inspection requirements.
- EDM part and feature examples
- Flexible China-based manufacturing resource matching
- Drawing review required before quotation
EDM Feature Examples
EDM Parts & Feature Examples
These examples show the types of EDM-machined features we can review from a drawing, including precision slots, internal profiles, small holes, side windows, tooling details and conductive material parts.

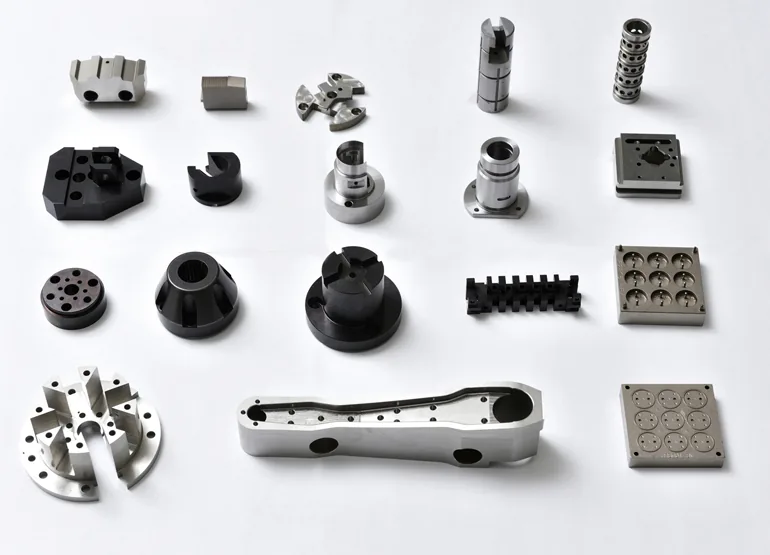

Slotted Cylindrical Parts
Cylindrical components with side windows, through features and internal profiles that should be reviewed from the drawing.

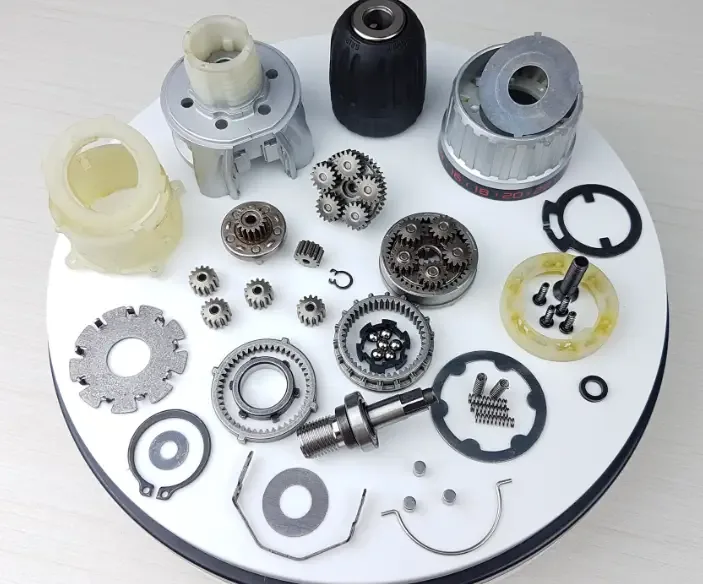

Small Precision Components
Small conductive parts, thin profiles and tight features where EDM, CNC or hybrid machining may need comparison.

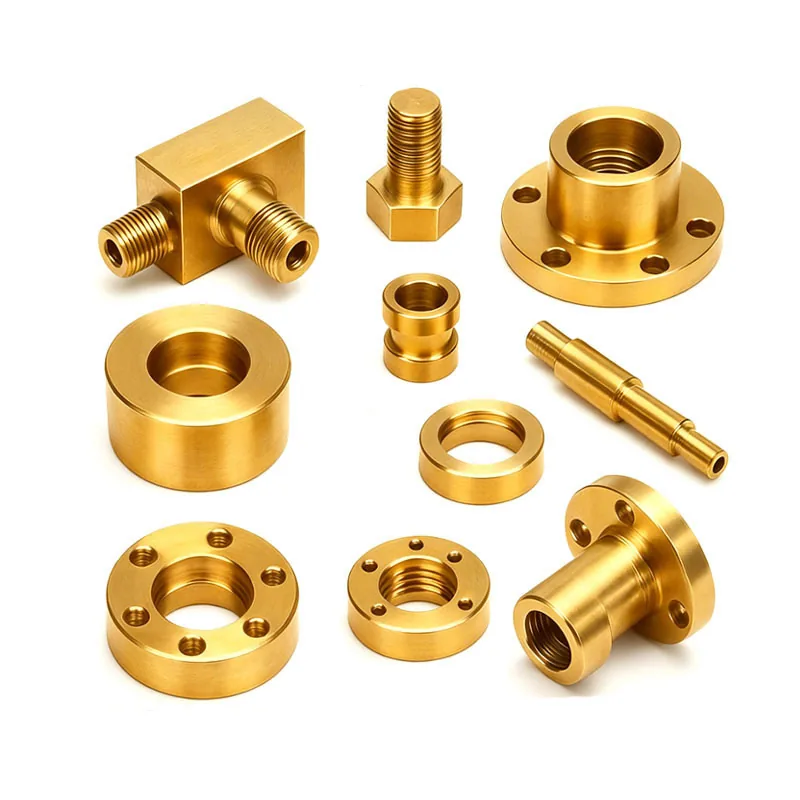

Copper Alloy Features
Conductive copper and brass alloy parts where geometry, burr control and finish requirement guide the machining route.

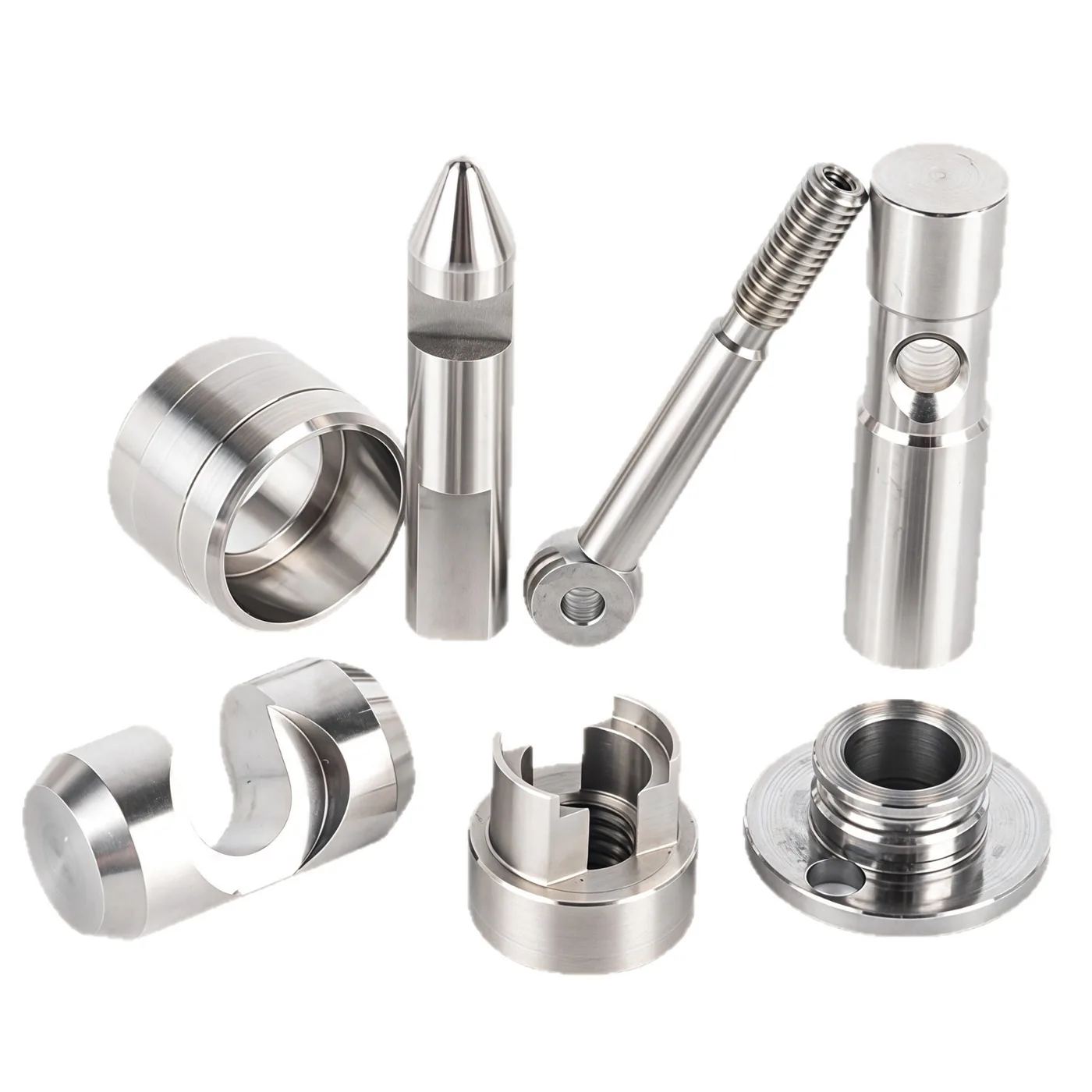

Precision Metal Components
Metal components used to discuss prototype, fixture and batch-production requirements from the drawing.

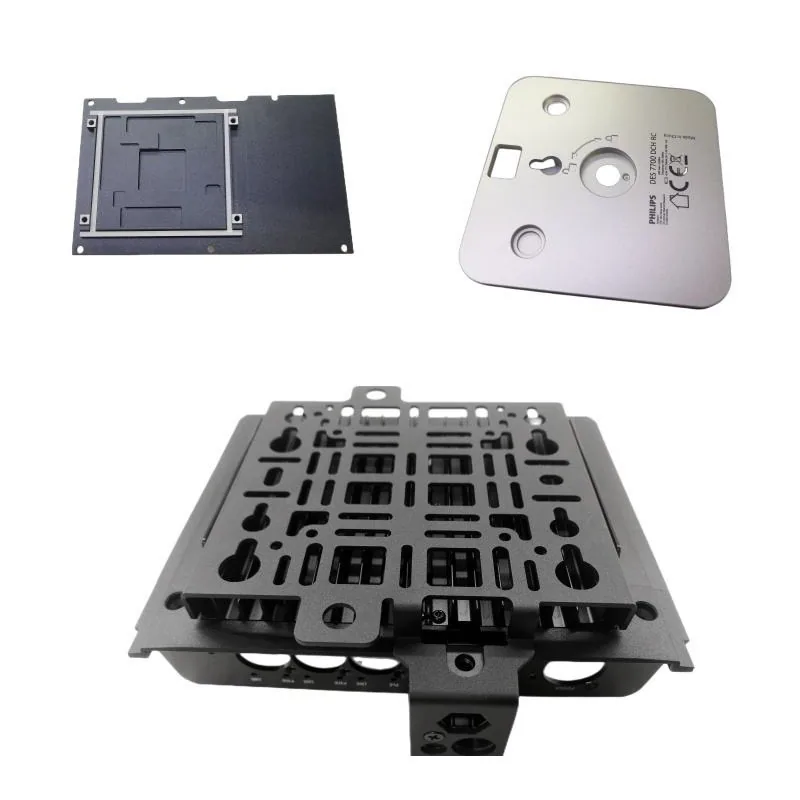

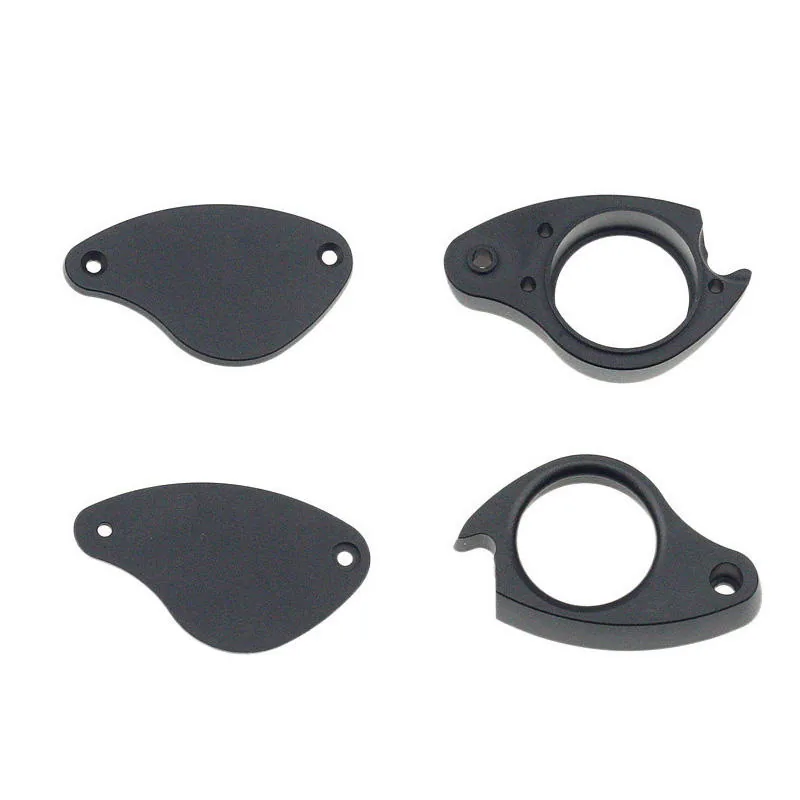

Flat Profiles & Cutouts
Flat profiles, cutouts, tabs and through features where wire path, kerf, burr control and inspection points should be reviewed.
Rings, Bushings & Sleeves
Round conductive components where bore size, slot geometry, side-window access or edge condition can drive process selection.
Flanged Components
Flanged parts with bores, bolt patterns and precision details that should be reviewed for process fit and inspection method.
Fixture Plate Parts
Fixture plate and tooling components where datum definition, hole pattern, flatness and inspection points matter.

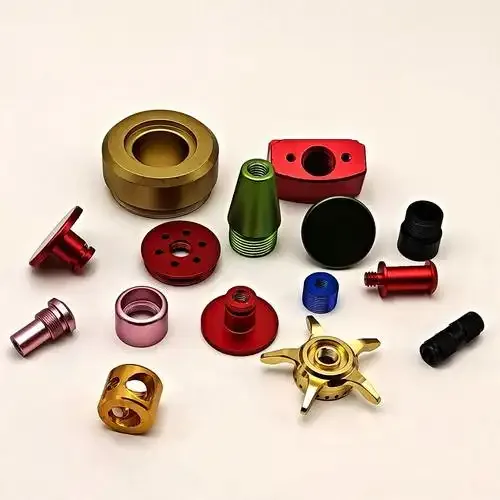

Mixed Part Examples
Mixed metal components used to discuss feature variety, material grade, machining route and resource matching.

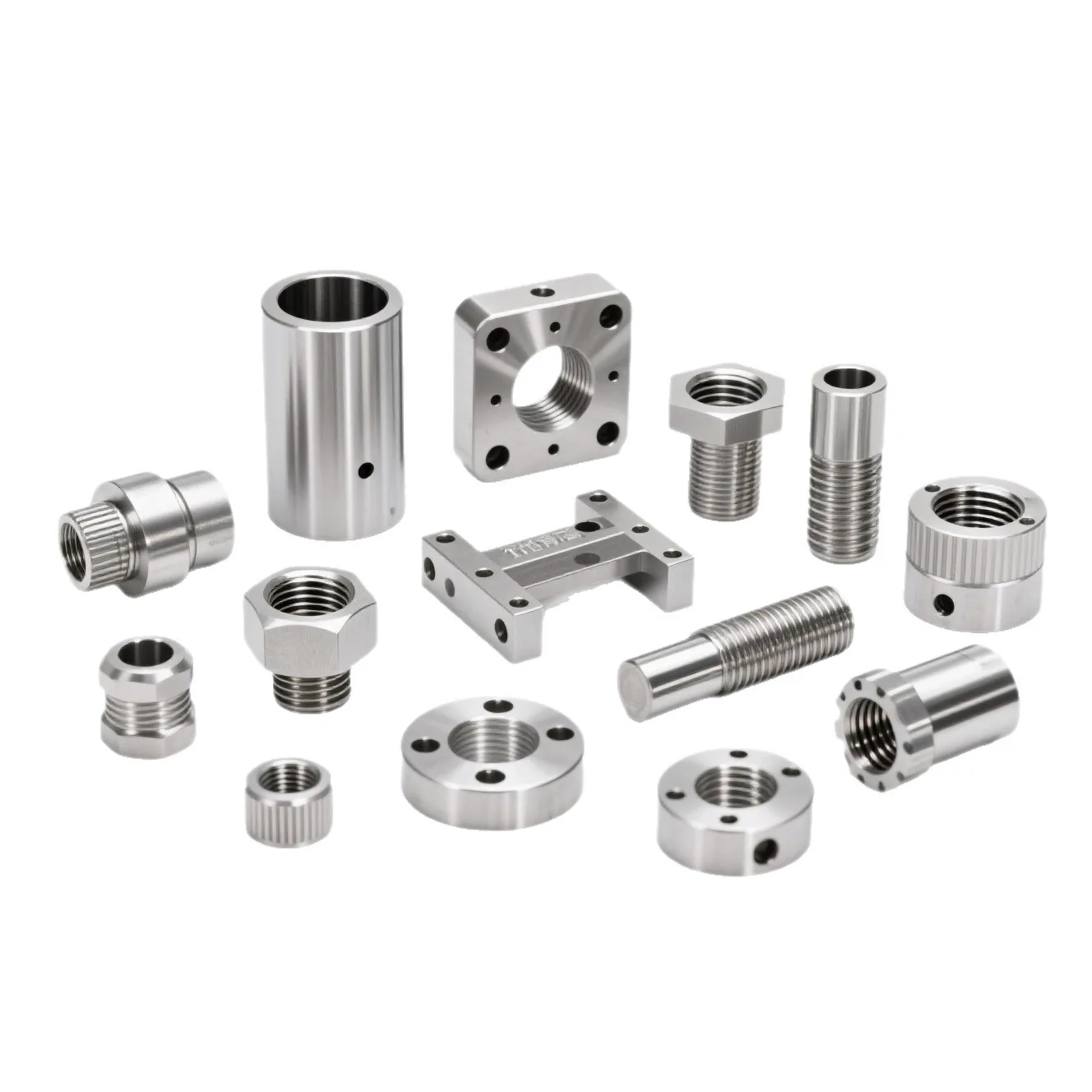

Conductive Metal Parts
Conductive metal fittings and small parts where geometry and tolerance decide whether EDM, CNC or hybrid machining is appropriate.

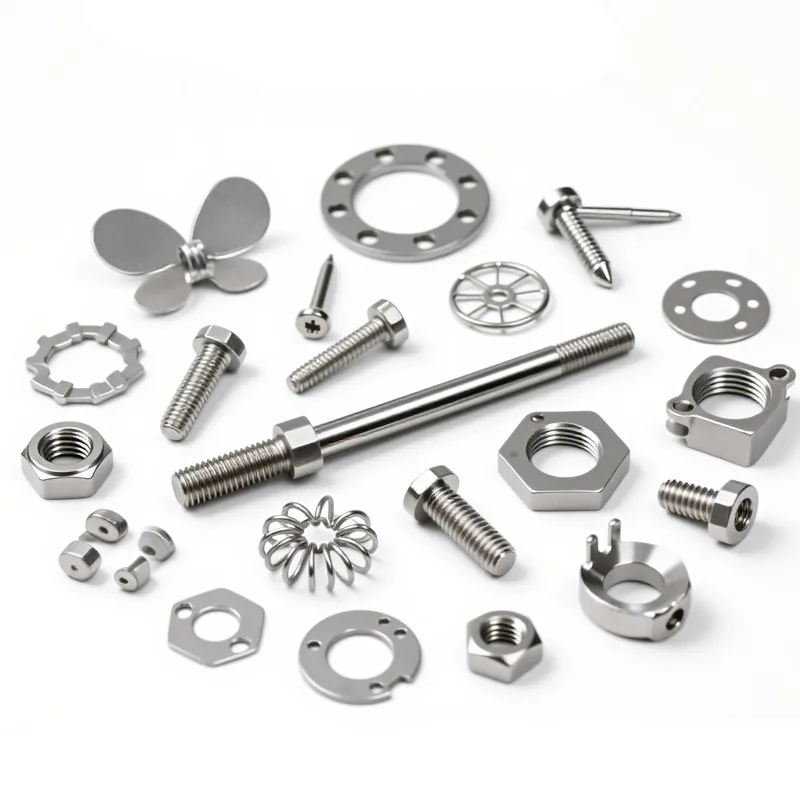

Pins, Bushings & Small Parts
Small precision metal components where drawings should define size, tolerance, surface finish, quantity and inspection requirements.
EDM RFQ Support
Send Your Drawing for EDM Review
Upload STEP, STP, DXF, DWG, PDF, IGS, IGES or ZIP files. Include material, thickness, tolerance, surface finish, quantity and any inspection requirements so we can review process fit before quoting.
