Drawing Review & EDM RFQ Preparation
Prepare an EDM RFQ with the drawing files, material, tolerance, surface finish, quantity and inspection information needed for a clear feasibility review.
A clear EDM RFQ helps us check process fit and quotation direction faster. Include the drawing, material, tolerance, surface finish, quantity and inspection notes so the project can be matched with the right EDM route.
RFQ Checklist
What to Include When Sending Drawings
2D drawing or 3D model file: STEP, STP, DXF, DWG, PDF, IGS, IGES or ZIP.
Material grade, heat treatment condition and any material certificate requirement.
Critical dimensions, datums, tolerance, hole diameter, slot width, corner radius and surface finish.
Quantity, prototype or batch requirement, target delivery time and destination country.
Inspection requirement such as dimensional report, CMM check, surface roughness or photo confirmation.
Drawing Examples
Drawing Details That Help EDM Review
These drawing examples show the details that speed up EDM review: material notes, tolerances, surface finish, datums, hole locations, slot widths, corner radii and critical features. Remove confidential customer information before sharing when needed.

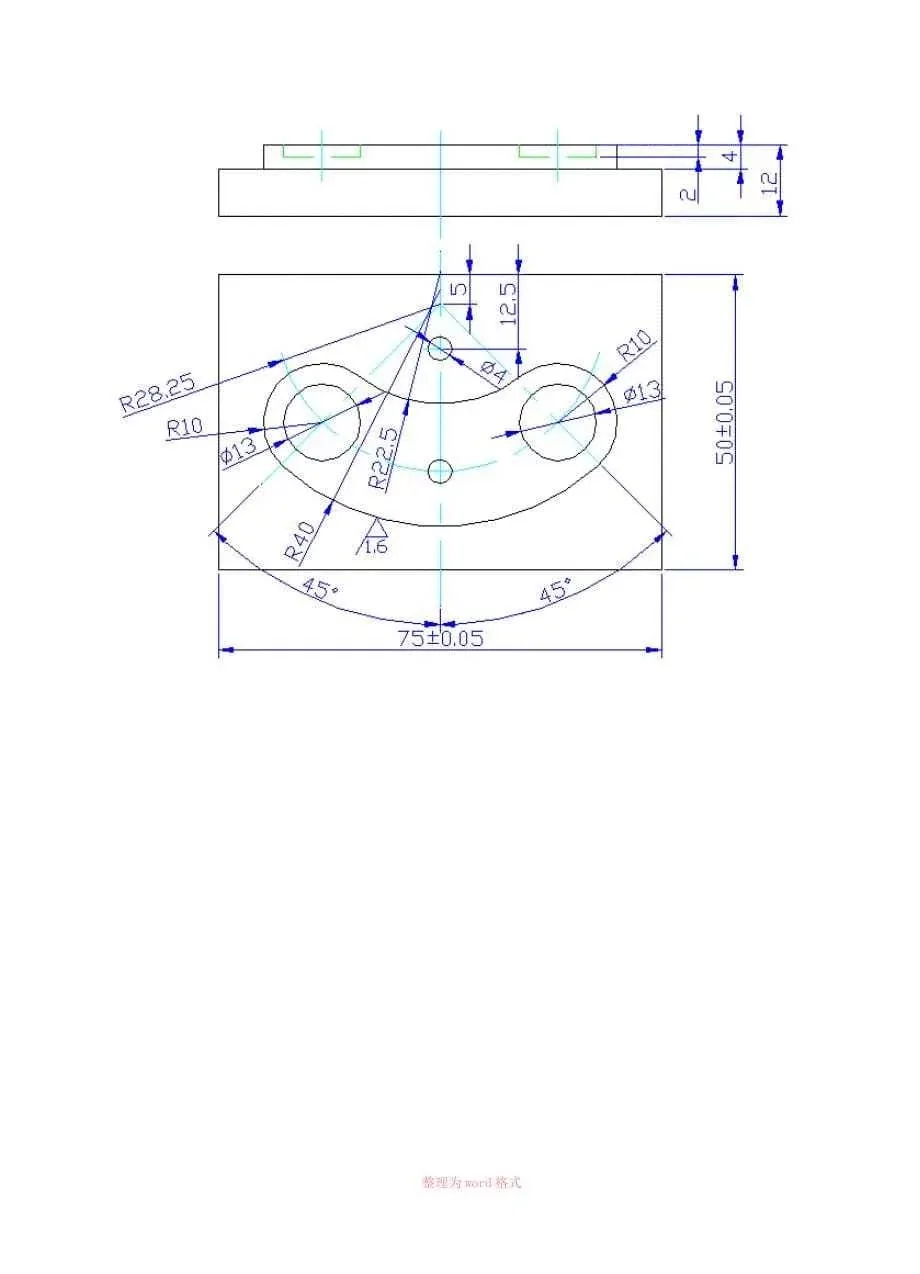

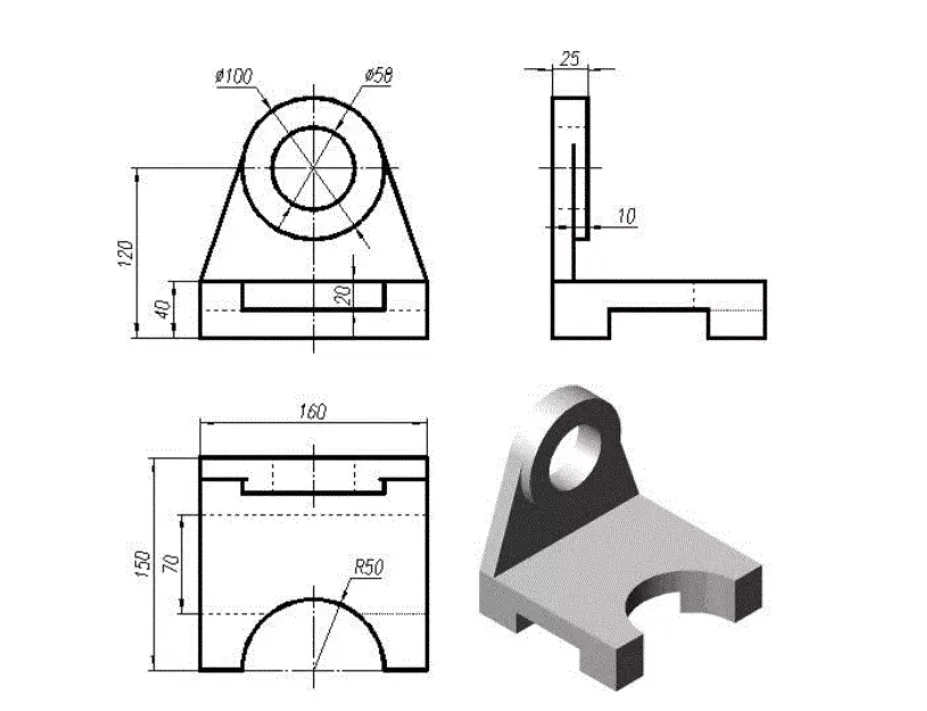

Bore and feature drawing

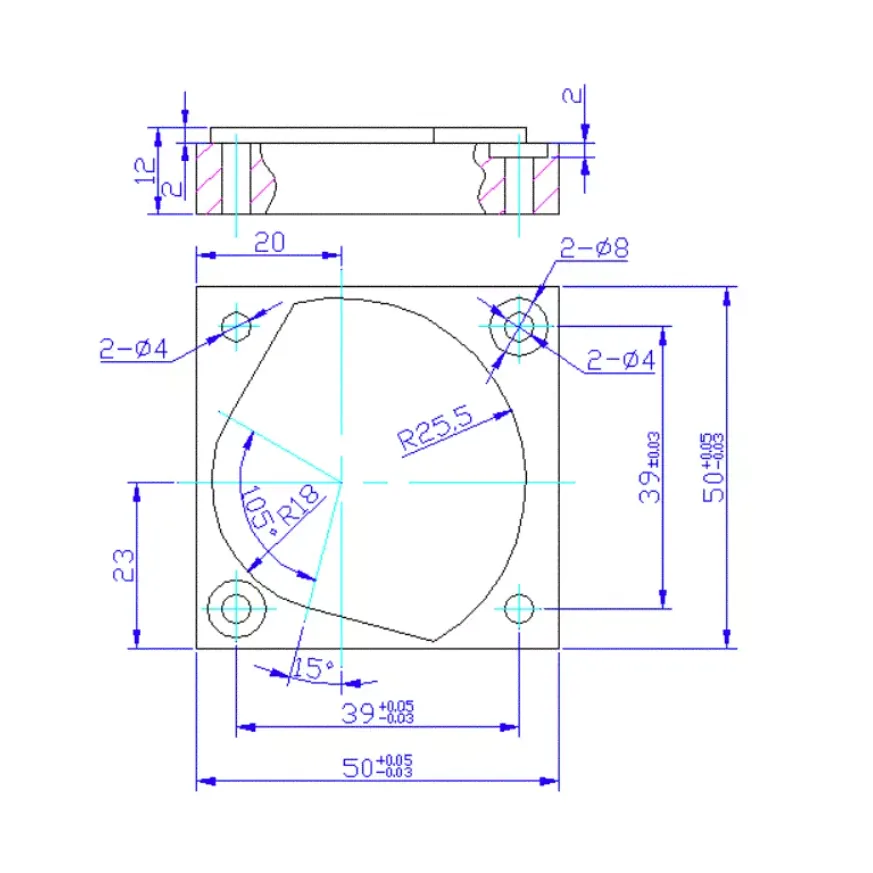

Dimensioned part drawing

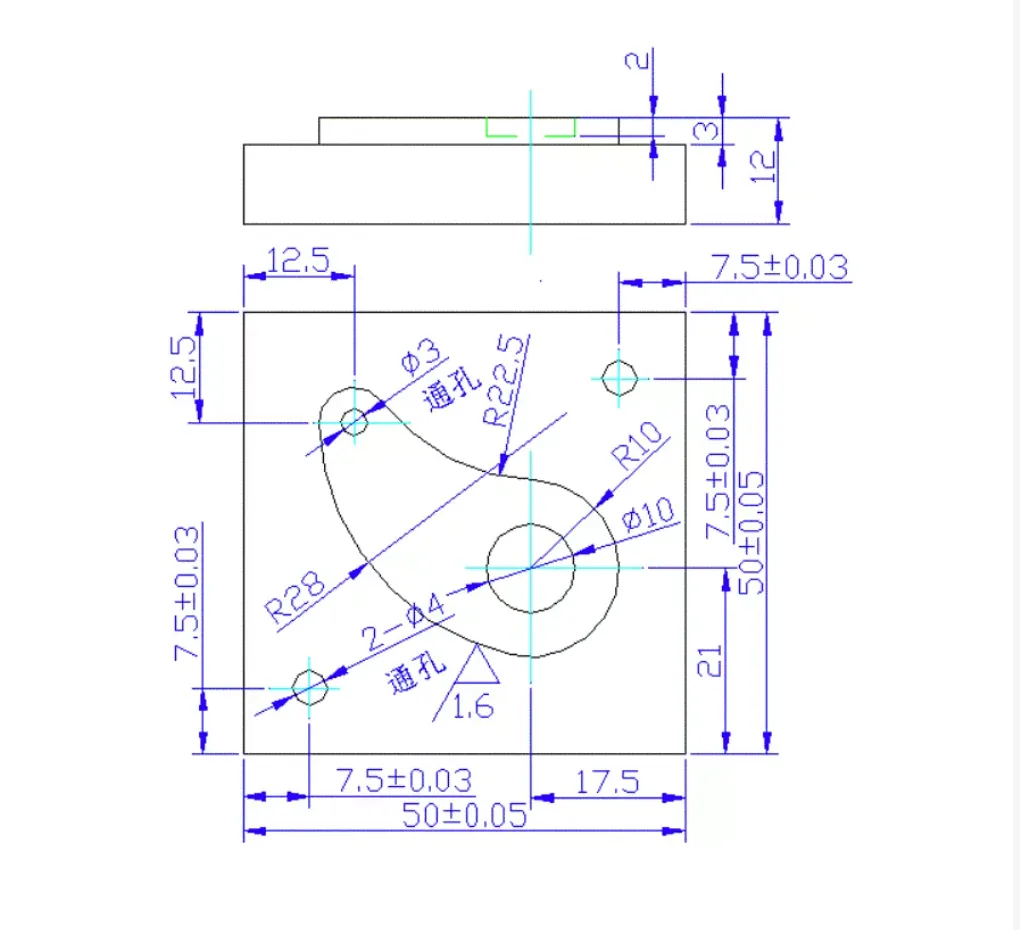

Hole location review

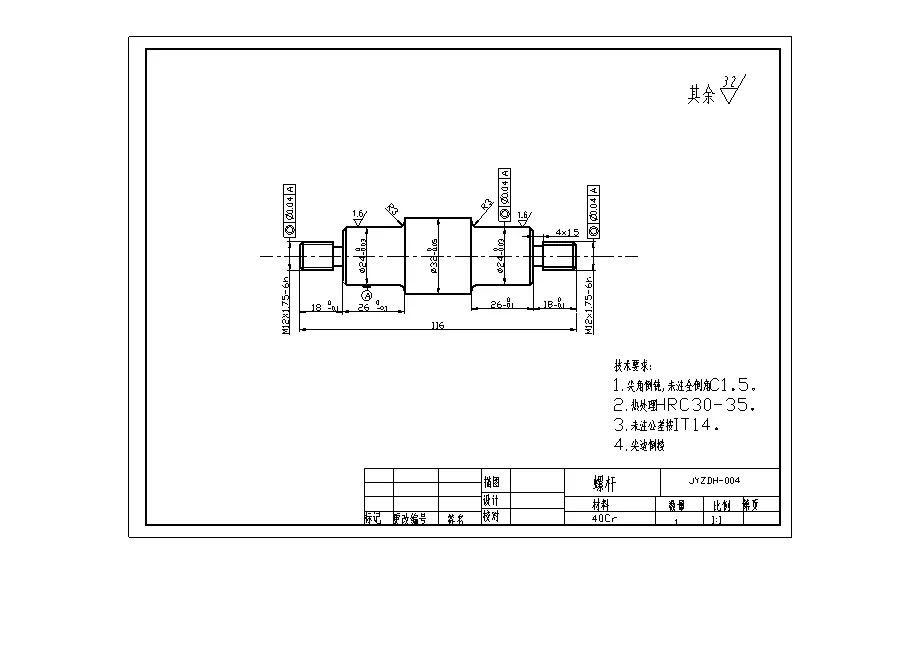

Material and technical notes

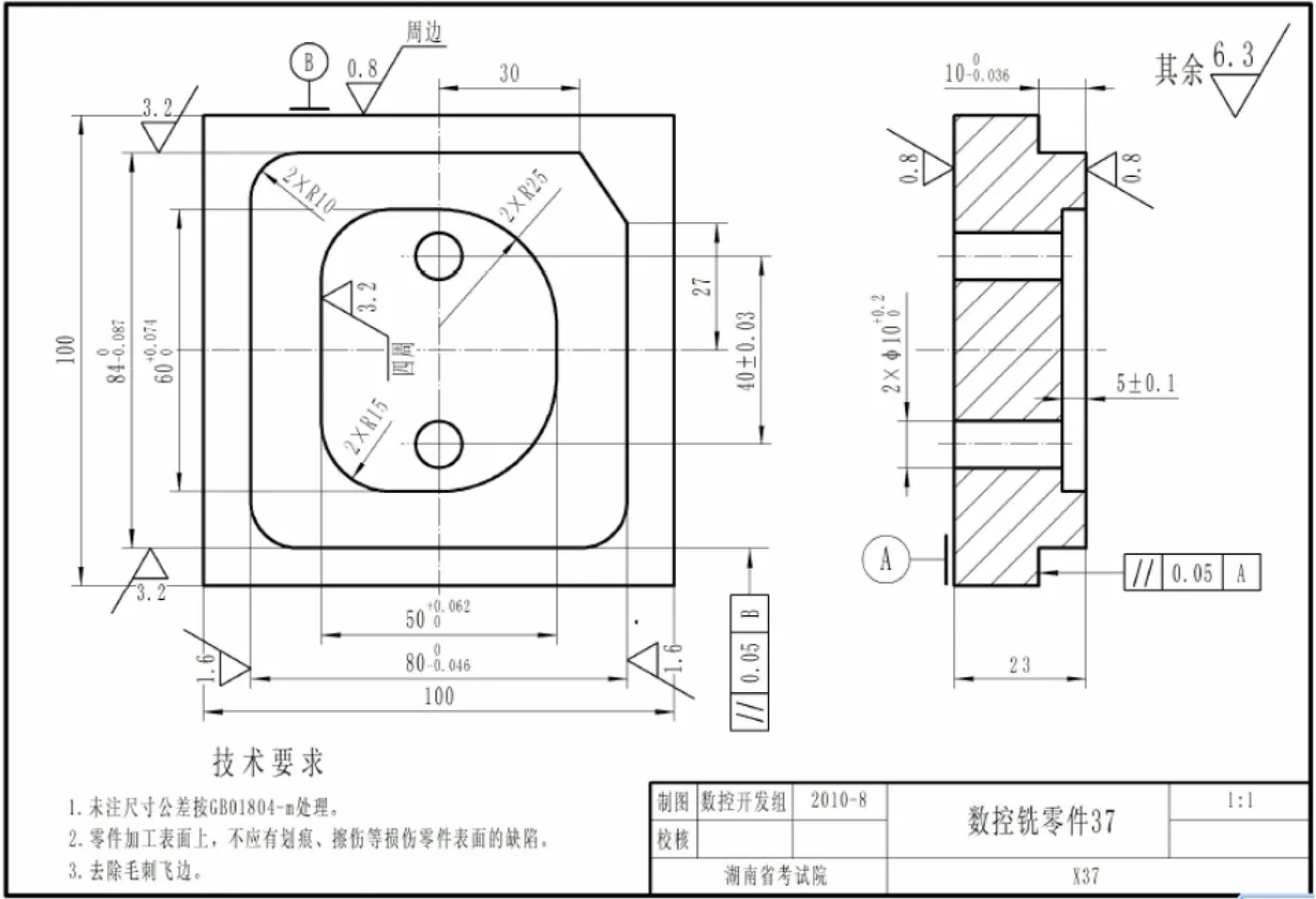

Tolerance and surface review
EDM RFQ Support
Send Your Drawing for EDM Review
Upload STEP, STP, DXF, DWG, PDF, IGS, IGES or ZIP files. Include material, thickness, tolerance, surface finish, quantity and any inspection requirements so we can review process fit before quoting.
