Kovar Wire EDM Feasibility Review
Kovar can be machined with Wire EDM when the geometry matches through profiles, precision slots, punches, inserts, cutouts, narrow webs, and tapered walls. Kovar is a controlled-expansion iron-nickel-cobalt alloy used where metal-to-glass or ceramic expansion matching matters; the supplied condition affects support, discharge energy, finishing, and inspection.
Quick Answer
Wire EDM is suitable for Kovar when the wire can pass completely through the workpiece from an edge or a start hole. The supplied condition must be stated before tolerance and surface requirements are confirmed.
Key Material Decisions
How This Material Behaves
A controlled-expansion iron-nickel-cobalt alloy used where metal-to-glass or ceramic expansion matching matters. In Wire EDM, the supplied condition changes stress release during the through cut, edge response to trim passes, and the final corrosion or surface-protection route.
Choosing the Right Condition
Choose Wire EDM for through profiles, precision slots, punches, inserts, cutouts, narrow webs, and tapered walls. State the exact Kovar condition, then set tolerance, finish, support, and inspection from the controlled feature rather than the whole part.
Risks to Manage
For Wire EDM, Thermal history, sealing faces and contamination control must be preserved because they affect glass-to-metal or ceramic-to-metal sealing performance. Wire lag and uneven flushing can bias the lower kerf when the slug, insert or thin ligament is finally separated; acceptance must focus on temperature-sensitive datums and low-expansion geometry. On Kovar, the resulting defect can be free-state contour error that changes again when the low-expansion part reaches inspection temperature. For Kovar, stabilize workpiece and inspection temperature, finish from controlled datums, and measure only after the part has thermally settled. Measure taper, straightness and datum position from the free-state part; document stabilized geometry, datum relationship and inspection temperature for Kovar.
How Wire EDM Works on Kovar

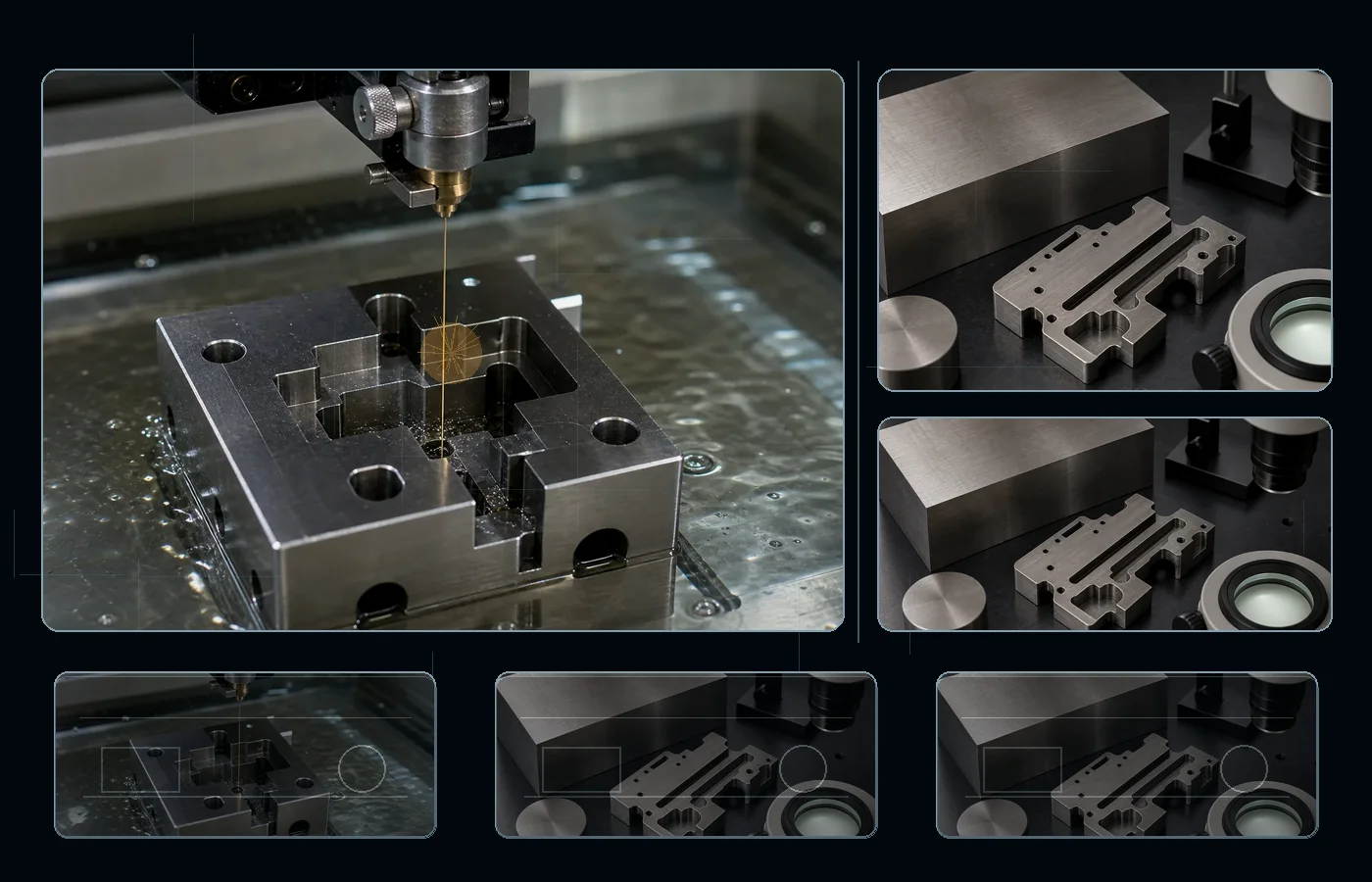

Wire EDM removes Kovar along a continuous through-cut with a moving wire electrode. Wire tension, guide alignment, flushing and trim-pass offset control kerf, taper, verticality and internal corner radius as the profile opens. The route requires a complete wire path from an edge or start hole and does not produce blind cavities.
Wire EDM Capability Reference
| What you're asking | What you can expect |
|---|---|
| Feature types | through profiles, precision slots, punches, inserts, cutouts, narrow webs, and tapered walls |
| Tolerance | ±0.005–0.025 mm |
| Surface finish | Ra 0.2–3.2 μm |
| Wire diameter | 0.10–0.30 mm planning range |
| Minimum internal corner | Approximately wire radius plus spark gap |
| Main limitation | Blind cavities and closed pockets are not wire-cut features. |
Material Condition Reference
| Condition | What to expect | Watch out for | Surface notes |
|---|---|---|---|
| solution annealed | Use stable support and conservative energy. | High-temperature alloys can retain a hard recast layer. | Identify fatigue and hot-section faces before finishing. |
| cold-worked or stabilized | Account for cold-work and service stress. | Thin features can move and electrode wear can grow corners. | Use low-energy finishing and selective metallurgical inspection. |
How This Material Behaves
Kovar is an iron-nickel-cobalt alloy chosen for controlled thermal expansion in glass or ceramic seals. In EDM, this means sealing edges can be dimensionally correct yet unusable if recast, contamination, or residual stress disrupts the later joining process. Use clean finishing passes, protect seal surfaces from handling damage, and define post-EDM cleaning and inspection before brazing or sealing. For Wire EDM, Thermal history, sealing faces and contamination control must be preserved because they affect glass-to-metal or ceramic-to-metal sealing performance. On high-strength or low-expansion profiles, residual stress release and finish-layer damage can change both geometry and service performance.
Surface Integrity and Post-Process
For Wire EDM on Kovar, use lower-energy finishing and inspect critical surfaces when fatigue, sealing or corrosion performance is specified. Separate the rough cut from skim cuts and apply the fine finish only to functional edges. Inspect roughness, edge rounding, recast and corrosion or fatigue requirements after the final pass; include polishing, coating or protection allowance wherever it changes final size.
Kovar Wire EDM Checkpoints
- Confirm that the feature matches through profiles, precision slots, punches, inserts, cutouts, narrow webs, and tapered walls.
- State the supplied condition: solution annealed and cold-worked or stabilized.
- Mark the controlled dimensions, functional surfaces, datum scheme, and inspection method.
Typical Parts and Features
- turbine and energy features
- corrosion-resistant inserts
- precision seals
- punches and die inserts
- precision profile gauges
- gear and spline outlines
Limits and Better Alternatives
Main Limit
Blind cavities and closed pockets are not wire-cut features because the wire needs a continuous through path. On Kovar, thermal history, sealing faces and contamination control are more important than generic alloy-steel wording; the supplied condition still controls support, finishing, and surface-integrity review.
Consider Another Route When
Use Sinker EDM for blind cavities, CNC machining for accessible open geometry, or laser cutting when thin-sheet speed matters more than EDM edge quality.
Practical Next Step
Send the Kovar drawing with condition, controlled geometry, tolerance, functional surface callouts, quantity, and inspection requirements. If the route is unclear, we will compare Wire EDM with the adjacent EDM or conventional process.
Practical Takeaway
Kovar is compatible with Wire EDM when the feature matches the process access. The supplied condition determines support, finishing, surface control, and inspection.
Additional Project Information
Include application, destination and end-use notes together with the material, quantity and drawing requirements.
Project Details for Technical Review
Include application and end-use notes when they affect material, inspection, documentation, or export review.
- Process: Wire EDM
- Material: Kovar
- Drawing or part sketch
- Material grade
- Thickness / part size
- Quantity
- Tolerance and critical dimensions
- Surface finish or inspection requirement
STEP/STP, DXF, DWG, PDF, IGS/IGES or ZIP.
Confidential drawing review. NDA support available on request.
Frequently Asked Questions
Can Kovar be machined with Wire EDM?
Yes, when the wire can pass completely through the workpiece from an edge or a start hole. Kovar is electrically conductive and the final route follows the feature geometry and supplied condition.
What controls Wire EDM on Kovar?
The main process controls are wire diameter, kerf compensation, flushing, wire tension, guide alignment, taper control, and trim-pass stability. The Kovar condition adds dimensional-stability and surface-integrity requirements.
What is the main risk?
For Wire EDM, Thermal history, sealing faces and contamination control must be preserved because they affect glass-to-metal or ceramic-to-metal sealing performance. Wire lag and uneven flushing can bias the lower kerf when the slug, insert or thin ligament is finally separated; acceptance must focus on temperature-sensitive datums and low-expansion geometry. On Kovar, the resulting defect can be free-state contour error that changes again when the low-expansion part reaches inspection temperature. For Kovar, stabilize workpiece and inspection temperature, finish from controlled datums, and measure only after the part has thermally settled. Measure taper, straightness and datum position from the free-state part; document stabilized geometry, datum relationship and inspection temperature for Kovar.
What should I send for review?
Send the drawing, exact Kovar condition, controlled geometry, tolerance, functional surface requirements, quantity, and inspection expectations. If any item is undecided, send what you have and we will help complete the review.
