7075 Aluminum Small Hole EDM Drilling Feasibility Review
7075 Aluminum can be machined with Small Hole EDM when the geometry matches small through holes, deep holes, angled holes, cooling holes, vent holes, and start holes in hard or heat-resistant alloys. 7075 Aluminum is high-strength aluminum whose hardened temper can retain machining stress; the supplied condition affects support, discharge energy, finishing, and inspection.
Quick Answer
Small Hole EDM is suitable for 7075 Aluminum when the feature is a small, deep, angled, cooling, vent, or start hole in conductive material. The supplied condition must be stated before tolerance and surface requirements are confirmed.
Key Material Decisions
How This Material Behaves
High-strength aluminum whose hardened temper can retain machining stress. In Small Hole EDM, the supplied condition changes bore stability, breakthrough quality, wall finish, and the inspection plan for straightness and position.
Choosing the Right Condition
Choose Small Hole EDM for small through holes, deep holes, angled holes, cooling holes, vent holes, and start holes in hard or heat-resistant alloys. State the exact 7075 Aluminum condition, then set tolerance, finish, support, and inspection from the controlled feature rather than the whole part.
Risks to Manage
For Small Hole EDM, thin or asymmetric features can move after material removal. The far end of the hole can drift even when the entry diameter and start position remain stable during the final portion of a high-aspect-ratio hole; acceptance must focus on soft edges, unsupported webs and handling-sensitive faces. On 7075 Aluminum, the resulting defect can be an enlarged or deformed exit even though the entry diameter is correct. For 7075 Aluminum, support broad datums, limit handling pressure, and reserve the final low-energy pass for the functional geometry. Measure the full entry-to-exit result after breakthrough and cleaning; document profile or cavity size, handling marks and soft-edge deformation for 7075 Aluminum.
How Small Hole EDM Works on 7075 Aluminum

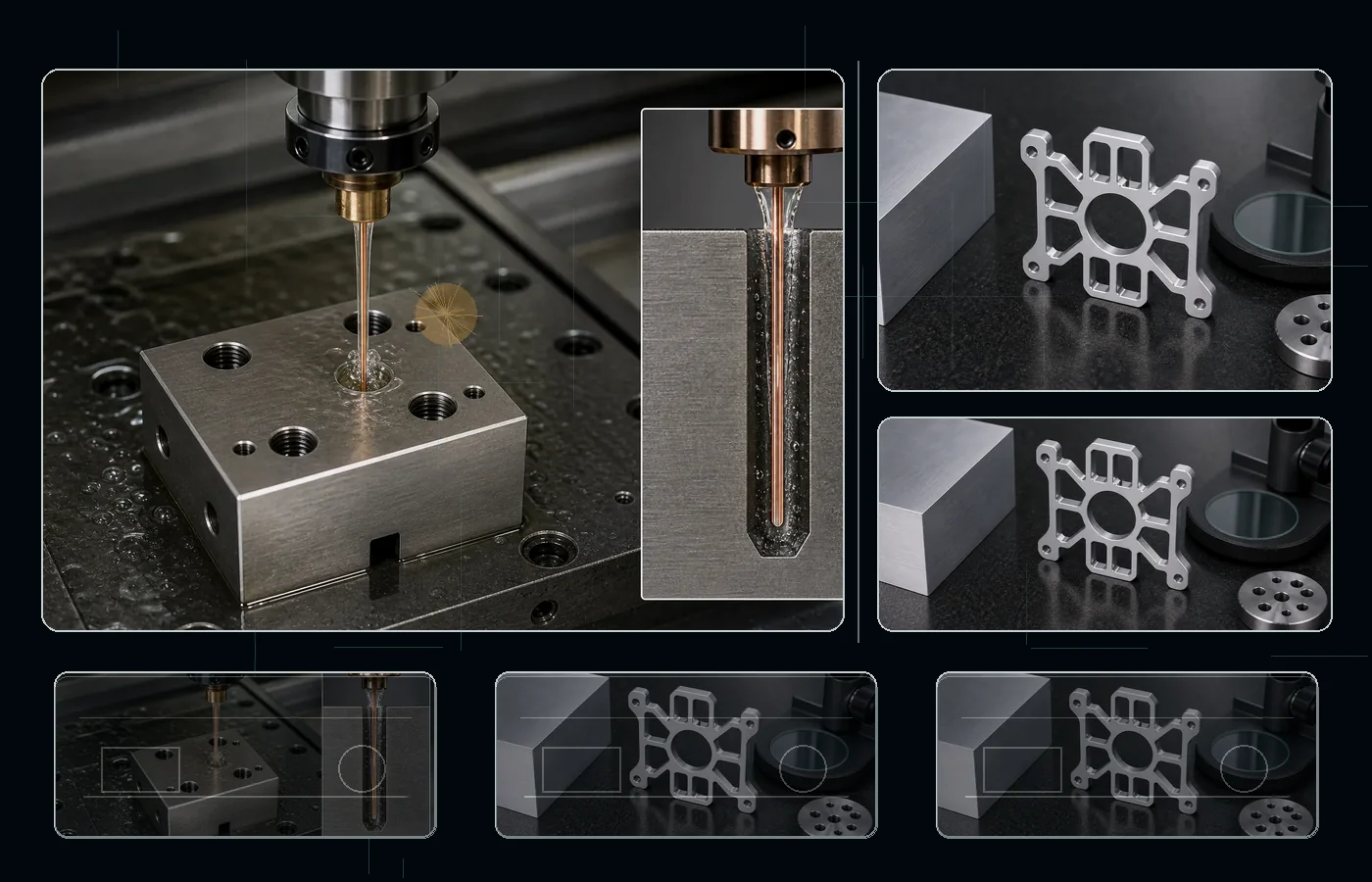

Small Hole EDM advances a rotating tubular electrode through 7075 Aluminum while dielectric exits at the cutting tip. Electrode wear, runout, internal flushing, true hole depth and breakthrough support control entry-to-exit diameter, taper, straightness and wall condition. Hole diameter, depth and depth-to-diameter ratio—not stock thickness alone—define the process limit.
Small Hole EDM Capability Reference
| What you're asking | What you can expect |
|---|---|
| Feature types | small through holes, deep holes, angled holes, cooling holes, vent holes, and start holes in hard or heat-resistant alloys |
| Tolerance | ±0.010–0.050 mm |
| Surface finish | Hole-wall finish is feature-dependent |
| Typical diameter | About 0.3–3.0 mm for ordinary planning |
| Depth driver | Depth-to-diameter ratio, straightness, and breakthrough |
| Main limitation | Very small diameter combined with extreme depth may require specialized equipment, staged electrodes, and dedicated metrology. |
Material Condition Reference
| Condition | What to expect | Watch out for | Surface notes |
|---|---|---|---|
| O annealed | Use light clamping and stable support. | Soft aluminum can mark, bow, or erode at fragile edges. | Protect fresh cut faces and avoid unnecessary fine passes. |
| T6 temper | Plan around cold-work or temper stress. | Thin sections can move as material is removed. | Use finish passes only on fit and sealing faces. |
| T73 overaged condition | Use conservative energy on heat-treated stock. | Local thermal effects can soften edges or expose corrosion-sensitive surfaces. | Inspect edge quality and apply corrosion protection where needed. |
How This Material Behaves
7075 aluminum combines high strength with pronounced temper and residual-stress sensitivity. In EDM, this means thin or heavily pocketed parts can distort as material is removed, and exposed cut faces need protection where stress-corrosion resistance is important. Start from stress-relieved stock when flatness is critical, balance the cut sequence, and keep the final finish and corrosion-protection steps tied to the functional surface. For Small Hole EDM, thin or asymmetric features can move after material removal. At breakthrough, exit deformation and wall condition are usually more sensitive than the entry diameter.
Surface Integrity and Post-Process
For Small Hole EDM on 7075 Aluminum, use stable support and moderate discharge energy where edge definition or cosmetic texture matters. Reduce discharge energy near final size and breakthrough, then evaluate entry, exit, taper and wall condition separately. For fatigue-, flow- or seal-critical holes, specify recast acceptance or post-process cleaning and finishing instead of relying on diameter alone.
7075 Aluminum Small Hole EDM Checkpoints
- Confirm that the feature matches small through holes, deep holes, angled holes, cooling holes, vent holes, and start holes in hard or heat-resistant alloys.
- State the supplied condition: O annealed, T6 temper, and T73 overaged condition.
- Mark the controlled dimensions, functional surfaces, datum scheme, and inspection method.
Typical Parts and Features
- lightweight tooling
- fixture plates
- electrical housings
- turbine-blade cooling holes
- mold and die vent holes
- injector and nozzle holes
Limits and Better Alternatives
Main Limit
Hole depth, diameter, aspect ratio, flushing, and breakthrough quality—not stock thickness alone—set the practical limit. On 7075 Aluminum, thin or asymmetric features can move after material removal; the supplied condition still controls support, finishing, and surface-integrity review.
Consider Another Route When
Use mechanical drilling when the tool can reach economically, laser drilling for suitable thin geometry, or Micro EDM for smaller precision holes.
Practical Next Step
Send the 7075 Aluminum drawing with condition, controlled geometry, tolerance, functional surface callouts, quantity, and inspection requirements. If the route is unclear, we will compare Small Hole EDM with the adjacent EDM or conventional process.
Practical Takeaway
7075 Aluminum is compatible with Small Hole EDM when the feature matches the process access. The supplied condition determines support, finishing, surface control, and inspection.
Request a Machining Feasibility Review
Send material grade, drawing files, tolerance and quantity. We confirm process fit before quoting.
- Process: Small Hole EDM
- Material: 7075 Aluminum
- Drawing or part sketch
- Material grade
- Thickness / part size
- Quantity
- Tolerance and critical dimensions
- Surface finish or inspection requirement
STEP/STP, DXF, DWG, PDF, IGS/IGES or ZIP.
Confidential drawing review. NDA support available on request.
Frequently Asked Questions
Can 7075 Aluminum be machined with Small Hole EDM?
Yes, when the feature is a small, deep, angled, cooling, vent, or start hole in conductive material. 7075 Aluminum is electrically conductive and the final route follows the feature geometry and supplied condition.
What controls Small Hole EDM on 7075 Aluminum?
The main process controls are electrode diameter, true hole depth, depth-to-diameter ratio, tubular-electrode wear, flushing pressure, breakthrough quality, and hole-wall inspection. The 7075 Aluminum condition adds dimensional-stability and surface-integrity requirements.
What is the main risk?
For Small Hole EDM, thin or asymmetric features can move after material removal. The far end of the hole can drift even when the entry diameter and start position remain stable during the final portion of a high-aspect-ratio hole; acceptance must focus on soft edges, unsupported webs and handling-sensitive faces. On 7075 Aluminum, the resulting defect can be an enlarged or deformed exit even though the entry diameter is correct. For 7075 Aluminum, support broad datums, limit handling pressure, and reserve the final low-energy pass for the functional geometry. Measure the full entry-to-exit result after breakthrough and cleaning; document profile or cavity size, handling marks and soft-edge deformation for 7075 Aluminum.
What should I send for review?
Send the drawing, exact 7075 Aluminum condition, controlled geometry, tolerance, functional surface requirements, quantity, and inspection expectations. If any item is undecided, send what you have and we will help complete the review.
