300M Alloy Steel Sinker EDM Feasibility Review
300M Alloy Steel can be machined with Sinker EDM when the geometry matches blind cavities, ribs, shaped pockets, mold details, deep forms, and internal geometry that a traveling wire cannot reach. 300M Alloy Steel is an ultra-high-strength modified 4340-type steel normally used in a carefully controlled heat-treated condition; the supplied condition affects support, discharge energy, finishing, and inspection.
Quick Answer
Sinker EDM is suitable for 300M Alloy Steel when the feature is a blind cavity, rib, pocket, or internal form that a shaped electrode can reach from one side. The supplied condition must be stated before tolerance and surface requirements are confirmed.
Key Material Decisions
How This Material Behaves
An ultra-high-strength modified 4340-type steel normally used in a carefully controlled heat-treated condition. In Sinker EDM, the supplied condition changes electrode wear, cavity-floor consistency, corner growth, and the finishing strategy—especially on deep ribs and textured surfaces.
Choosing the Right Condition
Choose Sinker EDM for blind cavities, ribs, shaped pockets, mold details, deep forms, and internal geometry that a traveling wire cannot reach. State the exact 300M Alloy Steel condition, then set tolerance, finish, support, and inspection from the controlled feature rather than the whole part.
Risks to Manage
For Sinker EDM, residual stress, fatigue-critical surfaces and recast control dominate over nominal conductivity. Orbit, local heating and electrode wear can shift wall size while dishing the floor as roughing transitions to final orbit and floor sizing, especially around fatigue-loaded edges and free-state datums. The practical failure in 300M Alloy Steel is cavity displacement or floor error combined with a thermally damaged root. For 300M Alloy Steel, balance material removal, use lower-energy finishing, and state the allowable recast or microcrack condition on service edges. Verify the floor, sidewalls and corner radii after the final finishing burn; document free-state geometry, recast and the fatigue-critical edge condition for 300M Alloy Steel.
How Sinker EDM Works on 300M Alloy Steel

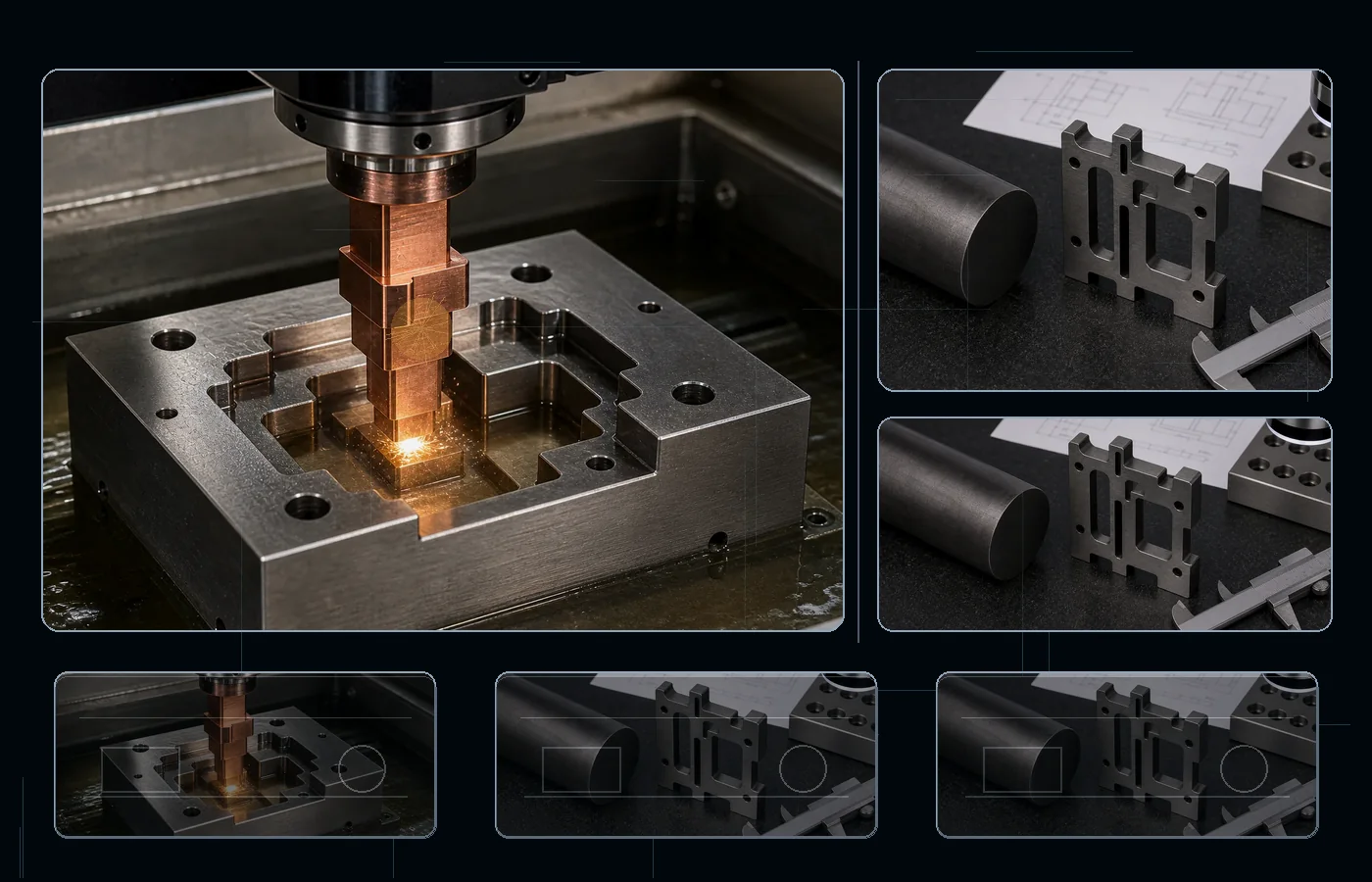

Sinker EDM reproduces a shaped electrode as a blind cavity in 300M Alloy Steel. Electrode material, wear, orbit, pulse energy and debris evacuation control wall size, floor depth, corner definition and surface condition. Where final size or texture is critical, roughing and finishing electrodes should be planned as separate operations.
Sinker EDM Capability Reference
| What you're asking | What you can expect |
|---|---|
| Feature types | blind cavities, ribs, shaped pockets, mold details, deep forms, and internal geometry that a traveling wire cannot reach |
| Tolerance | ±0.008–0.030 mm |
| Surface finish | Ra 0.2–6.3 μm |
| Electrode choice | Graphite or copper selected from cavity, finish, and wear needs |
| Primary cavity limit | Depth, rib width, access, and debris evacuation |
| Main limitation | Electrode access and debris evacuation limit deep, narrow blind geometry. |
Material Condition Reference
| Condition | What to expect | Watch out for | Surface notes |
|---|---|---|---|
| annealed or normalized | Soft stock can move if a large cavity is removed without balanced support. | Leave finishing allowance when later heat treatment will change the surface. | |
| quenched and tempered | Use conservative finishing and stress-aware sequencing. | Recast and tensile residual stress can reduce fatigue performance. | Fatigue-critical faces need explicit white-layer control and post-EDM finishing. |
| stress-relieved after machining | Preserve the stress-relieved condition with low-energy finishing. | Local reheating, edge microcracks, or uneven recast can become stress concentrators. | Inspect and remove the affected layer where the drawing identifies fatigue-critical surfaces. |
How This Material Behaves
300M is an ultra-high-strength alloy steel used where fatigue performance is critical. In EDM, this means residual stress release and a brittle recast layer can compromise thin sections or load-bearing edges even when the profile is accurate. Use a stress-aware cut sequence, low-energy finishing, and require recast removal or metallographic verification on fatigue-critical faces. For Sinker EDM, residual stress, fatigue-critical surfaces and recast control dominate over nominal conductivity. In deep cavities, local heating and debris retention can intensify recast on floors, ribs and fatigue-loaded corners.
Surface Integrity and Post-Process
For Sinker EDM on 300M Alloy Steel, critical fatigue surfaces benefit from lower-energy finishing and a clear recast-layer requirement. Use roughing and finishing electrodes separately where cavity size or texture is controlled. Apply polishing, lapping or recast removal only to named functional faces, and inspect wall, floor and corner condition after the final surface operation.
300M Alloy Steel Sinker EDM Checkpoints
- Confirm that the feature matches blind cavities, ribs, shaped pockets, mold details, deep forms, and internal geometry that a traveling wire cannot reach.
- State the supplied condition: annealed or normalized, quenched and tempered, and stress-relieved after machining.
- Mark the controlled dimensions, functional surfaces, datum scheme, and inspection method.
Typical Parts and Features
- high-strength inserts
- shafts and profiles
- fixtures
- mold cavities
- blind pockets
- deep ribs
Limits and Better Alternatives
Main Limit
Electrode access and debris evacuation limit deep, narrow blind geometry. On 300M Alloy Steel, residual stress, fatigue-critical surfaces and recast control dominate over nominal conductivity; the supplied condition still controls support, finishing, and surface-integrity review.
Consider Another Route When
Use Wire EDM for through profiles, CNC machining for open cavities with tool access, or grinding for simple flat precision surfaces.
Practical Next Step
Send the 300M Alloy Steel drawing with condition, controlled geometry, tolerance, functional surface callouts, quantity, and inspection requirements. If the route is unclear, we will compare Sinker EDM with the adjacent EDM or conventional process.
Practical Takeaway
300M Alloy Steel is compatible with Sinker EDM when the feature matches the process access. The supplied condition determines support, finishing, surface control, and inspection.
Additional Project Information
Include application, destination and end-use notes together with the material, quantity and drawing requirements.
Project Details for Technical Review
Include application and end-use notes when they affect material, inspection, documentation, or export review.
- Process: Sinker EDM
- Material: 300M Alloy Steel
- Drawing or part sketch
- Material grade
- Thickness / part size
- Quantity
- Tolerance and critical dimensions
- Surface finish or inspection requirement
STEP/STP, DXF, DWG, PDF, IGS/IGES or ZIP.
Confidential drawing review. NDA support available on request.
Frequently Asked Questions
Can 300M Alloy Steel be machined with Sinker EDM?
Yes, when the feature is a blind cavity, rib, pocket, or internal form that a shaped electrode can reach from one side. 300M Alloy Steel is electrically conductive and the final route follows the feature geometry and supplied condition.
What controls Sinker EDM on 300M Alloy Steel?
The main process controls are electrode material, wear compensation, cavity depth, rib width, orbit strategy, debris evacuation, and rough-versus-finish electrodes. The 300M Alloy Steel condition adds dimensional-stability and surface-integrity requirements.
What is the main risk?
For Sinker EDM, residual stress, fatigue-critical surfaces and recast control dominate over nominal conductivity. Orbit, local heating and electrode wear can shift wall size while dishing the floor as roughing transitions to final orbit and floor sizing, especially around fatigue-loaded edges and free-state datums. The practical failure in 300M Alloy Steel is cavity displacement or floor error combined with a thermally damaged root. For 300M Alloy Steel, balance material removal, use lower-energy finishing, and state the allowable recast or microcrack condition on service edges. Verify the floor, sidewalls and corner radii after the final finishing burn; document free-state geometry, recast and the fatigue-critical edge condition for 300M Alloy Steel.
What should I send for review?
Send the drawing, exact 300M Alloy Steel condition, controlled geometry, tolerance, functional surface requirements, quantity, and inspection expectations. If any item is undecided, send what you have and we will help complete the review.
