Kovar Sinker EDM Feasibility Review
Kovar can be machined with Sinker EDM when the geometry matches blind cavities, ribs, shaped pockets, mold details, deep forms, and internal geometry that a traveling wire cannot reach. Kovar is a controlled-expansion iron-nickel-cobalt alloy used where metal-to-glass or ceramic expansion matching matters; the supplied condition affects support, discharge energy, finishing, and inspection.
Quick Answer
Sinker EDM is suitable for Kovar when the feature is a blind cavity, rib, pocket, or internal form that a shaped electrode can reach from one side. The supplied condition must be stated before tolerance and surface requirements are confirmed.
Key Material Decisions
How This Material Behaves
A controlled-expansion iron-nickel-cobalt alloy used where metal-to-glass or ceramic expansion matching matters. In Sinker EDM, the supplied condition changes electrode wear, cavity-floor consistency, corner growth, and the finishing strategy—especially on deep ribs and textured surfaces.
Choosing the Right Condition
Choose Sinker EDM for blind cavities, ribs, shaped pockets, mold details, deep forms, and internal geometry that a traveling wire cannot reach. State the exact Kovar condition, then set tolerance, finish, support, and inspection from the controlled feature rather than the whole part.
Risks to Manage
For Sinker EDM, Thermal history, sealing faces and contamination control must be preserved because they affect glass-to-metal or ceramic-to-metal sealing performance. While a blind cavity, deep rib or narrow pocket is being opened, poor evacuation can concentrate discharge energy at corners and accelerate local electrode loss; the interaction is most important at temperature-sensitive datums and low-expansion geometry. For Kovar, this can produce cavity-size drift caused by local heating, electrode wear and temperature-sensitive measurement. For Kovar, stabilize workpiece and inspection temperature, finish from controlled datums, and measure only after the part has thermally settled. Inspect wall size, floor depth and corner condition as separate acceptance items; document stabilized geometry, datum relationship and inspection temperature for Kovar.
How Sinker EDM Works on Kovar

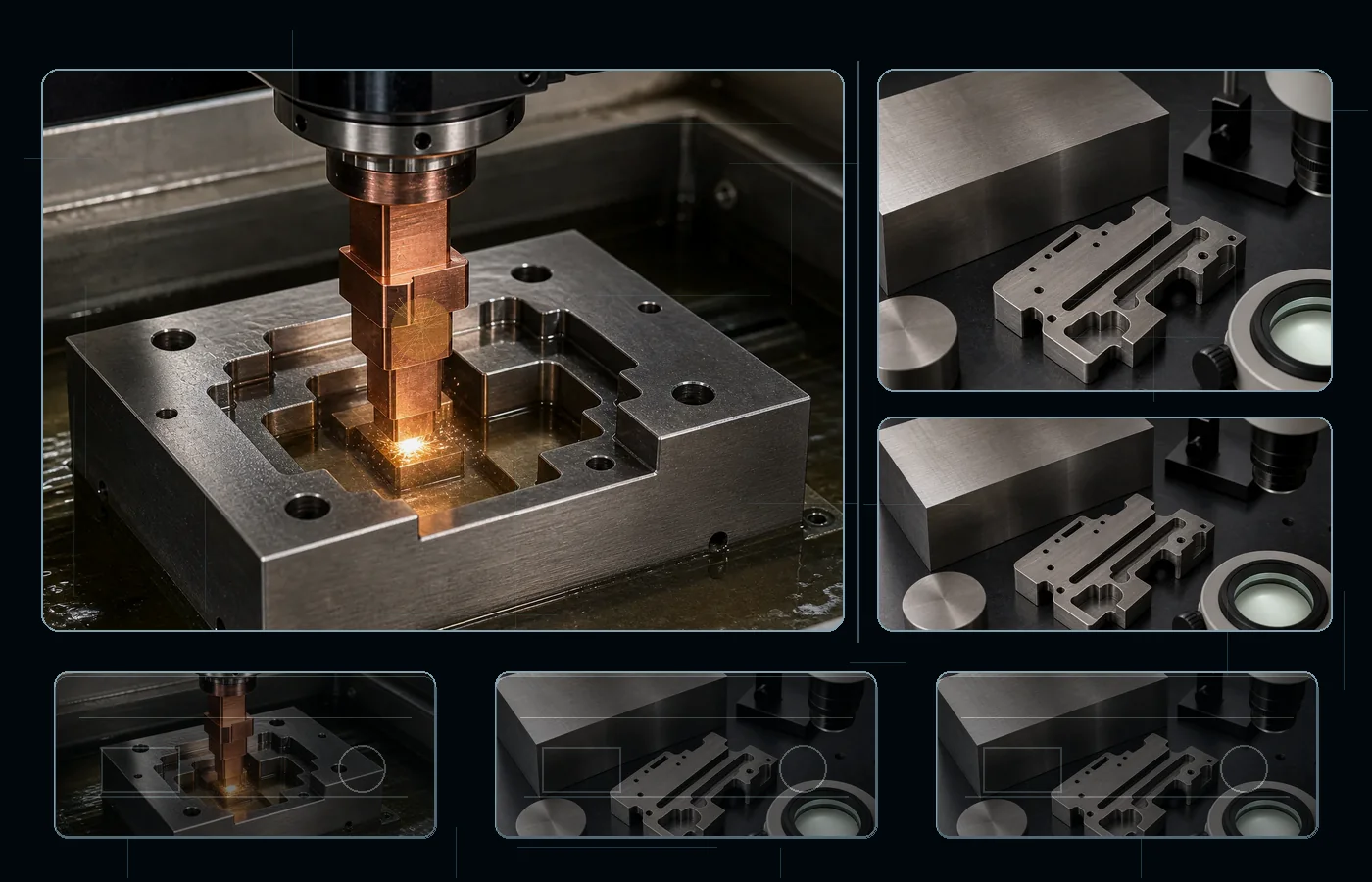

Sinker EDM reproduces a shaped electrode as a blind cavity in Kovar. Electrode material, wear, orbit, pulse energy and debris evacuation control wall size, floor depth, corner definition and surface condition. Where final size or texture is critical, roughing and finishing electrodes should be planned as separate operations.
Sinker EDM Capability Reference
| What you're asking | What you can expect |
|---|---|
| Feature types | blind cavities, ribs, shaped pockets, mold details, deep forms, and internal geometry that a traveling wire cannot reach |
| Tolerance | ±0.008–0.030 mm |
| Surface finish | Ra 0.2–6.3 μm |
| Electrode choice | Graphite or copper selected from cavity, finish, and wear needs |
| Primary cavity limit | Depth, rib width, access, and debris evacuation |
| Main limitation | Electrode access and debris evacuation limit deep, narrow blind geometry. |
Material Condition Reference
| Condition | What to expect | Watch out for | Surface notes |
|---|---|---|---|
| solution annealed | Use stable support and conservative energy. | High-temperature alloys can retain a hard recast layer. | Identify fatigue and hot-section faces before finishing. |
| cold-worked or stabilized | Account for cold-work and service stress. | Thin features can move and electrode wear can grow corners. | Use low-energy finishing and selective metallurgical inspection. |
How This Material Behaves
Kovar is an iron-nickel-cobalt alloy chosen for controlled thermal expansion in glass or ceramic seals. In EDM, this means sealing edges can be dimensionally correct yet unusable if recast, contamination, or residual stress disrupts the later joining process. Use clean finishing passes, protect seal surfaces from handling damage, and define post-EDM cleaning and inspection before brazing or sealing. For Sinker EDM, Thermal history, sealing faces and contamination control must be preserved because they affect glass-to-metal or ceramic-to-metal sealing performance. In deep ribs and blind cavities, heat concentration, debris retention and electrode wear can combine at the floor and corners.
Surface Integrity and Post-Process
For Sinker EDM on Kovar, use lower-energy finishing and inspect critical surfaces when fatigue, sealing or corrosion performance is specified. Use roughing and finishing electrodes separately where cavity size or texture is controlled. Apply polishing, lapping or recast removal only to named functional faces, and inspect wall, floor and corner condition after the final surface operation.
Kovar Sinker EDM Checkpoints
- Confirm that the feature matches blind cavities, ribs, shaped pockets, mold details, deep forms, and internal geometry that a traveling wire cannot reach.
- State the supplied condition: solution annealed and cold-worked or stabilized.
- Mark the controlled dimensions, functional surfaces, datum scheme, and inspection method.
Typical Parts and Features
- turbine and energy features
- corrosion-resistant inserts
- precision seals
- mold cavities
- blind pockets
- deep ribs
Limits and Better Alternatives
Main Limit
Electrode access and debris evacuation limit deep, narrow blind geometry. On Kovar, thermal history, sealing faces and contamination control are more important than generic alloy-steel wording; the supplied condition still controls support, finishing, and surface-integrity review.
Consider Another Route When
Use Wire EDM for through profiles, CNC machining for open cavities with tool access, or grinding for simple flat precision surfaces.
Practical Next Step
Send the Kovar drawing with condition, controlled geometry, tolerance, functional surface callouts, quantity, and inspection requirements. If the route is unclear, we will compare Sinker EDM with the adjacent EDM or conventional process.
Practical Takeaway
Kovar is compatible with Sinker EDM when the feature matches the process access. The supplied condition determines support, finishing, surface control, and inspection.
Additional Project Information
Include application, destination and end-use notes together with the material, quantity and drawing requirements.
Project Details for Technical Review
Include application and end-use notes when they affect material, inspection, documentation, or export review.
- Process: Sinker EDM
- Material: Kovar
- Drawing or part sketch
- Material grade
- Thickness / part size
- Quantity
- Tolerance and critical dimensions
- Surface finish or inspection requirement
STEP/STP, DXF, DWG, PDF, IGS/IGES or ZIP.
Confidential drawing review. NDA support available on request.
Frequently Asked Questions
Can Kovar be machined with Sinker EDM?
Yes, when the feature is a blind cavity, rib, pocket, or internal form that a shaped electrode can reach from one side. Kovar is electrically conductive and the final route follows the feature geometry and supplied condition.
What controls Sinker EDM on Kovar?
The main process controls are electrode material, wear compensation, cavity depth, rib width, orbit strategy, debris evacuation, and rough-versus-finish electrodes. The Kovar condition adds dimensional-stability and surface-integrity requirements.
What is the main risk?
For Sinker EDM, Thermal history, sealing faces and contamination control must be preserved because they affect glass-to-metal or ceramic-to-metal sealing performance. While a blind cavity, deep rib or narrow pocket is being opened, poor evacuation can concentrate discharge energy at corners and accelerate local electrode loss; the interaction is most important at temperature-sensitive datums and low-expansion geometry. For Kovar, this can produce cavity-size drift caused by local heating, electrode wear and temperature-sensitive measurement. For Kovar, stabilize workpiece and inspection temperature, finish from controlled datums, and measure only after the part has thermally settled. Inspect wall size, floor depth and corner condition as separate acceptance items; document stabilized geometry, datum relationship and inspection temperature for Kovar.
What should I send for review?
Send the drawing, exact Kovar condition, controlled geometry, tolerance, functional surface requirements, quantity, and inspection expectations. If any item is undecided, send what you have and we will help complete the review.
