Graphite Wire EDM Feasibility Review
Graphite can be machined with Wire EDM when the geometry matches through profiles, precision slots, punches, inserts, cutouts, narrow webs, and tapered walls. Graphite is conductive porous material commonly used for EDM electrodes; the supplied condition affects support, discharge energy, finishing, and inspection.
Quick Answer
Wire EDM is suitable for Graphite when the wire can pass completely through the workpiece from an edge or a start hole. The supplied condition must be stated before tolerance and surface requirements are confirmed.
Key Material Decisions
How This Material Behaves
Conductive porous material commonly used for EDM electrodes. In Wire EDM, the supplied condition changes stress release during the through cut, edge response to trim passes, and the final corrosion or surface-protection route.
Choosing the Right Condition
Choose Wire EDM for through profiles, precision slots, punches, inserts, cutouts, narrow webs, and tapered walls. State the exact Graphite condition, then set tolerance, finish, support, and inspection from the controlled feature rather than the whole part.
Risks to Manage
For Wire EDM, grain size and brittleness control fine ribs and corner survival. The changing support condition can alter taper and datum position while the wire follows the programmed path when the slug, insert or thin ligament is finally separated; acceptance must focus on pores, grain boundaries and unsupported graphite edges. On Graphite, the resulting defect can be edge breakout, corner loss or variable kerf caused by pores, grain structure and flushing. For Graphite, select a suitable grain grade, support fragile edges and control flushing or debris so pores do not become breakout sites. Separate roughing acceptance from the final skim and free-state inspection; document geometry, pore breakout, grain pullout and edge continuity for Graphite.
How Wire EDM Works on Graphite

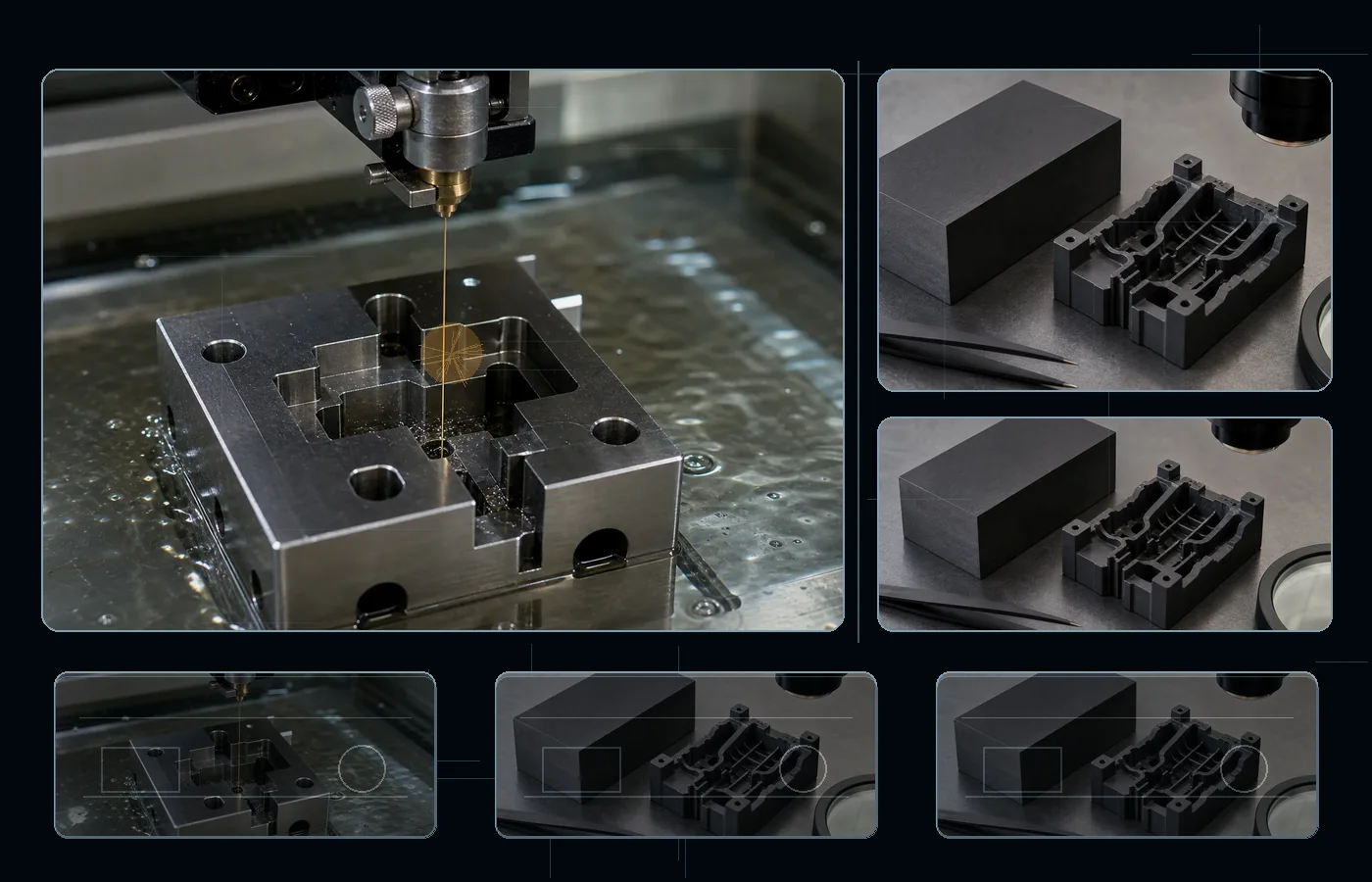

Wire EDM removes Graphite along a continuous through-cut with a moving wire electrode. Wire tension, guide alignment, flushing and trim-pass offset control kerf, taper, verticality and internal corner radius as the profile opens. The route requires a complete wire path from an edge or start hole and does not produce blind cavities.
Wire EDM Capability Reference
| What you're asking | What you can expect |
|---|---|
| Feature types | through profiles, precision slots, punches, inserts, cutouts, narrow webs, and tapered walls |
| Tolerance | ±0.005–0.025 mm |
| Surface finish | Ra 0.2–3.2 μm |
| Wire diameter | 0.10–0.30 mm planning range |
| Minimum internal corner | Approximately wire radius plus spark gap |
| Main limitation | Blind cavities and closed pockets are not wire-cut features. |
Material Condition Reference
| Condition | What to expect | Watch out for | Surface notes |
|---|---|---|---|
| fine-grain | Use stable support and economical roughing. | Clamping and material condition can move delicate features. | Apply fine finishing only to functional faces. |
| ultrafine-grain | Balance dimensional stability with feature-specific finishing. | Residual stress can shift thin sections or small details. | Identify wear, seal, fatigue, or contact surfaces. |
| impregnated electrode grade | Use conservative energy and selective inspection. | Finished or hardened surfaces can be sensitive to edge damage and recast. | Use lower-energy finishing or post-processing where function requires it. |
How This Material Behaves
Graphite is conductive but brittle, porous, and prone to edge chipping. In EDM, this means the absence of cutting force helps delicate geometry, yet pores and grain size can produce uneven texture and fragile corners can break during flushing or handling. Use fine-grain stock for detailed features, support thin sections, and inspect edge chipping and porosity rather than relying on Ra alone. For Wire EDM, grain size and brittleness control fine ribs and corner survival. Because graphite is brittle and porous, open-profile cutting is governed by edge support, particle release and grade-dependent conductivity rather than metal-like stress release.
Surface Integrity and Post-Process
For Wire EDM on Graphite, choose grain size and support for the feature instead of applying metal-specific recast assumptions. Separate the rough cut from skim cuts and apply the fine finish only to functional edges. Inspect roughness, edge rounding, recast and corrosion or fatigue requirements after the final pass; include polishing, coating or protection allowance wherever it changes final size.
Graphite Wire EDM Checkpoints
- Confirm that the feature matches through profiles, precision slots, punches, inserts, cutouts, narrow webs, and tapered walls.
- State the supplied condition: fine-grain, ultrafine-grain, and impregnated electrode grade.
- Mark the controlled dimensions, functional surfaces, datum scheme, and inspection method.
Typical Parts and Features
- EDM electrodes
- fine ribs
- mold texture electrodes
- punches and die inserts
- precision profile gauges
- gear and spline outlines
Limits and Better Alternatives
Main Limit
Blind cavities and closed pockets are not wire-cut features because the wire needs a continuous through path. On Graphite, grain size and brittleness control fine ribs and corner survival; the supplied condition still controls support, finishing, and surface-integrity review.
Consider Another Route When
Use Sinker EDM for blind cavities, CNC machining for accessible open geometry, or laser cutting when thin-sheet speed matters more than EDM edge quality.
Practical Next Step
Send the Graphite drawing with condition, controlled geometry, tolerance, functional surface callouts, quantity, and inspection requirements. If the route is unclear, we will compare Wire EDM with the adjacent EDM or conventional process.
Practical Takeaway
Graphite is compatible with Wire EDM when the feature matches the process access. The supplied condition determines support, finishing, surface control, and inspection.
Request a Machining Feasibility Review
Send material grade, drawing files, tolerance and quantity. We confirm process fit before quoting.
- Process: Wire EDM
- Material: Graphite
- Drawing or part sketch
- Material grade
- Thickness / part size
- Quantity
- Tolerance and critical dimensions
- Surface finish or inspection requirement
STEP/STP, DXF, DWG, PDF, IGS/IGES or ZIP.
Confidential drawing review. NDA support available on request.
Frequently Asked Questions
Can Graphite be machined with Wire EDM?
Yes, when the wire can pass completely through the workpiece from an edge or a start hole. Graphite is electrically conductive and the final route follows the feature geometry and supplied condition.
What controls Wire EDM on Graphite?
The main process controls are wire diameter, kerf compensation, flushing, wire tension, guide alignment, taper control, and trim-pass stability. The Graphite condition adds dimensional-stability and surface-integrity requirements.
What is the main risk?
For Wire EDM, grain size and brittleness control fine ribs and corner survival. The changing support condition can alter taper and datum position while the wire follows the programmed path when the slug, insert or thin ligament is finally separated; acceptance must focus on pores, grain boundaries and unsupported graphite edges. On Graphite, the resulting defect can be edge breakout, corner loss or variable kerf caused by pores, grain structure and flushing. For Graphite, select a suitable grain grade, support fragile edges and control flushing or debris so pores do not become breakout sites. Separate roughing acceptance from the final skim and free-state inspection; document geometry, pore breakout, grain pullout and edge continuity for Graphite.
What should I send for review?
Send the drawing, exact Graphite condition, controlled geometry, tolerance, functional surface requirements, quantity, and inspection expectations. If any item is undecided, send what you have and we will help complete the review.
