Graphite Small Hole EDM Drilling Feasibility Review
Graphite can be machined with Small Hole EDM when the geometry matches small through holes, deep holes, angled holes, cooling holes, vent holes, and start holes in hard or heat-resistant alloys. Graphite is conductive porous material commonly used for EDM electrodes; the supplied condition affects support, discharge energy, finishing, and inspection.
Quick Answer
Small Hole EDM is suitable for Graphite when the feature is a small, deep, angled, cooling, vent, or start hole in conductive material. The supplied condition must be stated before tolerance and surface requirements are confirmed.
Key Material Decisions
How This Material Behaves
Conductive porous material commonly used for EDM electrodes. In Small Hole EDM, the supplied condition changes bore stability, breakthrough quality, wall finish, and the inspection plan for straightness and position.
Choosing the Right Condition
Choose Small Hole EDM for small through holes, deep holes, angled holes, cooling holes, vent holes, and start holes in hard or heat-resistant alloys. State the exact Graphite condition, then set tolerance, finish, support, and inspection from the controlled feature rather than the whole part.
Risks to Manage
For Small Hole EDM, grain size and brittleness control fine ribs and corner survival. Electrode shortening and debris transport can change taper, straightness and wall condition together during the final portion of a high-aspect-ratio hole; acceptance must focus on pores, grain boundaries and unsupported graphite edges. On Graphite, the resulting defect can be wall breakout or exit chipping that dominates the nominal diameter error. For Graphite, select a suitable grain grade, support fragile edges and control flushing or debris so pores do not become breakout sites. Verify both ends of the hole and use sectioning or suitable wall inspection where service risk requires it; document geometry, pore breakout, grain pullout and edge continuity for Graphite.
How Small Hole EDM Works on Graphite

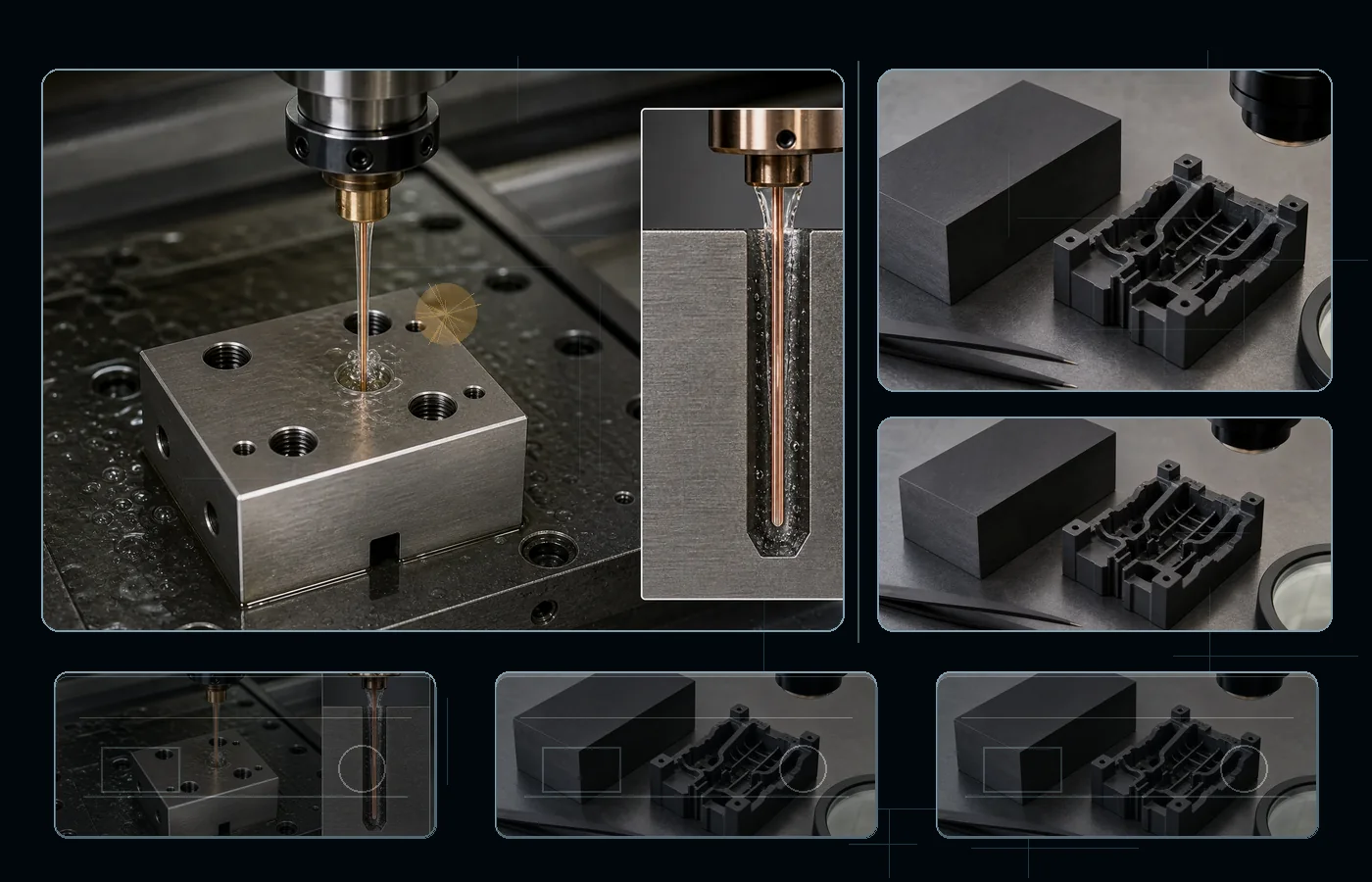

Small Hole EDM advances a rotating tubular electrode through Graphite while dielectric exits at the cutting tip. Electrode wear, runout, internal flushing, true hole depth and breakthrough support control entry-to-exit diameter, taper, straightness and wall condition. Hole diameter, depth and depth-to-diameter ratio—not stock thickness alone—define the process limit.
Small Hole EDM Capability Reference
| What you're asking | What you can expect |
|---|---|
| Feature types | small through holes, deep holes, angled holes, cooling holes, vent holes, and start holes in hard or heat-resistant alloys |
| Tolerance | ±0.010–0.050 mm |
| Surface finish | Hole-wall finish is feature-dependent |
| Typical diameter | About 0.3–3.0 mm for ordinary planning |
| Depth driver | Depth-to-diameter ratio, straightness, and breakthrough |
| Main limitation | Very small diameter combined with extreme depth may require specialized equipment, staged electrodes, and dedicated metrology. |
Material Condition Reference
| Condition | What to expect | Watch out for | Surface notes |
|---|---|---|---|
| fine-grain | Use stable support and economical roughing. | Clamping and material condition can move delicate features. | Apply fine finishing only to functional faces. |
| ultrafine-grain | Balance dimensional stability with feature-specific finishing. | Residual stress can shift thin sections or small details. | Identify wear, seal, fatigue, or contact surfaces. |
| impregnated electrode grade | Use conservative energy and selective inspection. | Finished or hardened surfaces can be sensitive to edge damage and recast. | Use lower-energy finishing or post-processing where function requires it. |
How This Material Behaves
Graphite is conductive but brittle, porous, and prone to edge chipping. In EDM, this means the absence of cutting force helps delicate geometry, yet pores and grain size can produce uneven texture and fragile corners can break during flushing or handling. Use fine-grain stock for detailed features, support thin sections, and inspect edge chipping and porosity rather than relying on Ra alone. For Small Hole EDM, grain size and brittleness control fine ribs and corner survival. Small holes in conductive graphite require exit support and dust or debris control because wall breakout can dominate dimensional error.
Surface Integrity and Post-Process
For Small Hole EDM on Graphite, choose grain size and support for the feature instead of applying metal-specific recast assumptions. Reduce discharge energy near final size and breakthrough, then evaluate entry, exit, taper and wall condition separately. For fatigue-, flow- or seal-critical holes, specify recast acceptance or post-process cleaning and finishing instead of relying on diameter alone.
Graphite Small Hole EDM Checkpoints
- Confirm that the feature matches small through holes, deep holes, angled holes, cooling holes, vent holes, and start holes in hard or heat-resistant alloys.
- State the supplied condition: fine-grain, ultrafine-grain, and impregnated electrode grade.
- Mark the controlled dimensions, functional surfaces, datum scheme, and inspection method.
Typical Parts and Features
- EDM electrodes
- fine ribs
- mold texture electrodes
- turbine-blade cooling holes
- mold and die vent holes
- injector and nozzle holes
Limits and Better Alternatives
Main Limit
Hole depth, diameter, aspect ratio, flushing, and breakthrough quality—not stock thickness alone—set the practical limit. On Graphite, grain size and brittleness control fine ribs and corner survival; the supplied condition still controls support, finishing, and surface-integrity review.
Consider Another Route When
Use mechanical drilling when the tool can reach economically, laser drilling for suitable thin geometry, or Micro EDM for smaller precision holes.
Practical Next Step
Send the Graphite drawing with condition, controlled geometry, tolerance, functional surface callouts, quantity, and inspection requirements. If the route is unclear, we will compare Small Hole EDM with the adjacent EDM or conventional process.
Practical Takeaway
Graphite is compatible with Small Hole EDM when the feature matches the process access. The supplied condition determines support, finishing, surface control, and inspection.
Request a Machining Feasibility Review
Send material grade, drawing files, tolerance and quantity. We confirm process fit before quoting.
- Process: Small Hole EDM
- Material: Graphite
- Drawing or part sketch
- Material grade
- Thickness / part size
- Quantity
- Tolerance and critical dimensions
- Surface finish or inspection requirement
STEP/STP, DXF, DWG, PDF, IGS/IGES or ZIP.
Confidential drawing review. NDA support available on request.
Frequently Asked Questions
Can Graphite be machined with Small Hole EDM?
Yes, when the feature is a small, deep, angled, cooling, vent, or start hole in conductive material. Graphite is electrically conductive and the final route follows the feature geometry and supplied condition.
What controls Small Hole EDM on Graphite?
The main process controls are electrode diameter, true hole depth, depth-to-diameter ratio, tubular-electrode wear, flushing pressure, breakthrough quality, and hole-wall inspection. The Graphite condition adds dimensional-stability and surface-integrity requirements.
What is the main risk?
For Small Hole EDM, grain size and brittleness control fine ribs and corner survival. Electrode shortening and debris transport can change taper, straightness and wall condition together during the final portion of a high-aspect-ratio hole; acceptance must focus on pores, grain boundaries and unsupported graphite edges. On Graphite, the resulting defect can be wall breakout or exit chipping that dominates the nominal diameter error. For Graphite, select a suitable grain grade, support fragile edges and control flushing or debris so pores do not become breakout sites. Verify both ends of the hole and use sectioning or suitable wall inspection where service risk requires it; document geometry, pore breakout, grain pullout and edge continuity for Graphite.
What should I send for review?
Send the drawing, exact Graphite condition, controlled geometry, tolerance, functional surface requirements, quantity, and inspection expectations. If any item is undecided, send what you have and we will help complete the review.
