Graphite Sinker EDM Feasibility Review
Graphite can be machined with Sinker EDM when the geometry matches blind cavities, ribs, shaped pockets, mold details, deep forms, and internal geometry that a traveling wire cannot reach. Graphite is conductive porous material commonly used for EDM electrodes; the supplied condition affects support, discharge energy, finishing, and inspection.
Quick Answer
Sinker EDM is suitable for Graphite when the feature is a blind cavity, rib, pocket, or internal form that a shaped electrode can reach from one side. The supplied condition must be stated before tolerance and surface requirements are confirmed.
Key Material Decisions
How This Material Behaves
Conductive porous material commonly used for EDM electrodes. In Sinker EDM, the supplied condition changes electrode wear, cavity-floor consistency, corner growth, and the finishing strategy—especially on deep ribs and textured surfaces.
Choosing the Right Condition
Choose Sinker EDM for blind cavities, ribs, shaped pockets, mold details, deep forms, and internal geometry that a traveling wire cannot reach. State the exact Graphite condition, then set tolerance, finish, support, and inspection from the controlled feature rather than the whole part.
Risks to Manage
For Sinker EDM, grain size and brittleness control fine ribs and corner survival. While a blind cavity, deep rib or narrow pocket is being opened, debris retention and electrode wear can change the root, wall and floor at different rates; the interaction is most important at pores, grain boundaries and unsupported graphite edges. For Graphite, this can produce corner breakdown or uneven cavity texture as pores and grains erode nonuniformly. For Graphite, select a suitable grain grade, support fragile edges and control flushing or debris so pores do not become breakout sites. Inspect wall size, floor depth and corner condition as separate acceptance items; document geometry, pore breakout, grain pullout and edge continuity for Graphite.
How Sinker EDM Works on Graphite

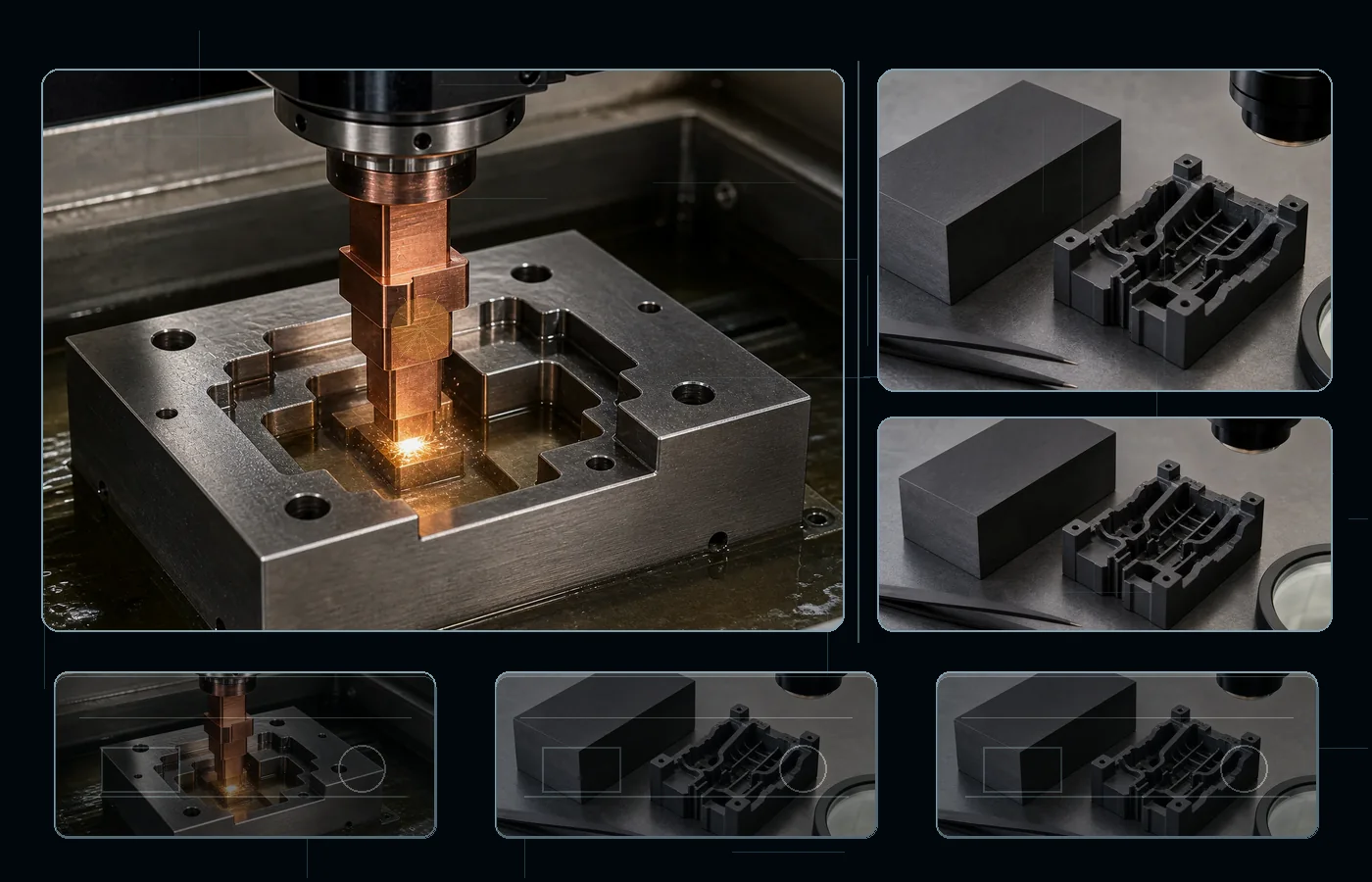

Sinker EDM reproduces a shaped electrode as a blind cavity in Graphite. Electrode material, wear, orbit, pulse energy and debris evacuation control wall size, floor depth, corner definition and surface condition. Where final size or texture is critical, roughing and finishing electrodes should be planned as separate operations.
Sinker EDM Capability Reference
| What you're asking | What you can expect |
|---|---|
| Feature types | blind cavities, ribs, shaped pockets, mold details, deep forms, and internal geometry that a traveling wire cannot reach |
| Tolerance | ±0.008–0.030 mm |
| Surface finish | Ra 0.2–6.3 μm |
| Electrode choice | Graphite or copper selected from cavity, finish, and wear needs |
| Primary cavity limit | Depth, rib width, access, and debris evacuation |
| Main limitation | Electrode access and debris evacuation limit deep, narrow blind geometry. |
Material Condition Reference
| Condition | What to expect | Watch out for | Surface notes |
|---|---|---|---|
| fine-grain | Use stable support and economical roughing. | Clamping and material condition can move delicate features. | Apply fine finishing only to functional faces. |
| ultrafine-grain | Balance dimensional stability with feature-specific finishing. | Residual stress can shift thin sections or small details. | Identify wear, seal, fatigue, or contact surfaces. |
| impregnated electrode grade | Use conservative energy and selective inspection. | Finished or hardened surfaces can be sensitive to edge damage and recast. | Use lower-energy finishing or post-processing where function requires it. |
How This Material Behaves
Graphite is conductive but brittle, porous, and prone to edge chipping. In EDM, this means the absence of cutting force helps delicate geometry, yet pores and grain size can produce uneven texture and fragile corners can break during flushing or handling. Use fine-grain stock for detailed features, support thin sections, and inspect edge chipping and porosity rather than relying on Ra alone. For Sinker EDM, grain size and brittleness control fine ribs and corner survival. When graphite itself is the workpiece, cavity floors and corners can chip or erode unevenly; when it is the electrode, grade and wear behavior belong in the electrode plan instead.
Surface Integrity and Post-Process
For Sinker EDM on Graphite, choose grain size and support for the feature instead of applying metal-specific recast assumptions. Use roughing and finishing electrodes separately where cavity size or texture is controlled. Apply polishing, lapping or recast removal only to named functional faces, and inspect wall, floor and corner condition after the final surface operation.
Graphite Sinker EDM Checkpoints
- Confirm that the feature matches blind cavities, ribs, shaped pockets, mold details, deep forms, and internal geometry that a traveling wire cannot reach.
- State the supplied condition: fine-grain, ultrafine-grain, and impregnated electrode grade.
- Mark the controlled dimensions, functional surfaces, datum scheme, and inspection method.
Typical Parts and Features
- EDM electrodes
- fine ribs
- mold texture electrodes
- mold cavities
- blind pockets
- deep ribs
Limits and Better Alternatives
Main Limit
Electrode access and debris evacuation limit deep, narrow blind geometry. On Graphite, grain size and brittleness control fine ribs and corner survival; the supplied condition still controls support, finishing, and surface-integrity review.
Consider Another Route When
Use Wire EDM for through profiles, CNC machining for open cavities with tool access, or grinding for simple flat precision surfaces.
Practical Next Step
Send the Graphite drawing with condition, controlled geometry, tolerance, functional surface callouts, quantity, and inspection requirements. If the route is unclear, we will compare Sinker EDM with the adjacent EDM or conventional process.
Practical Takeaway
Graphite is compatible with Sinker EDM when the feature matches the process access. The supplied condition determines support, finishing, surface control, and inspection.
Request a Machining Feasibility Review
Send material grade, drawing files, tolerance and quantity. We confirm process fit before quoting.
- Process: Sinker EDM
- Material: Graphite
- Drawing or part sketch
- Material grade
- Thickness / part size
- Quantity
- Tolerance and critical dimensions
- Surface finish or inspection requirement
STEP/STP, DXF, DWG, PDF, IGS/IGES or ZIP.
Confidential drawing review. NDA support available on request.
Frequently Asked Questions
Can Graphite be machined with Sinker EDM?
Yes, when the feature is a blind cavity, rib, pocket, or internal form that a shaped electrode can reach from one side. Graphite is electrically conductive and the final route follows the feature geometry and supplied condition.
What controls Sinker EDM on Graphite?
The main process controls are electrode material, wear compensation, cavity depth, rib width, orbit strategy, debris evacuation, and rough-versus-finish electrodes. The Graphite condition adds dimensional-stability and surface-integrity requirements.
What is the main risk?
For Sinker EDM, grain size and brittleness control fine ribs and corner survival. While a blind cavity, deep rib or narrow pocket is being opened, debris retention and electrode wear can change the root, wall and floor at different rates; the interaction is most important at pores, grain boundaries and unsupported graphite edges. For Graphite, this can produce corner breakdown or uneven cavity texture as pores and grains erode nonuniformly. For Graphite, select a suitable grain grade, support fragile edges and control flushing or debris so pores do not become breakout sites. Inspect wall size, floor depth and corner condition as separate acceptance items; document geometry, pore breakout, grain pullout and edge continuity for Graphite.
What should I send for review?
Send the drawing, exact Graphite condition, controlled geometry, tolerance, functional surface requirements, quantity, and inspection expectations. If any item is undecided, send what you have and we will help complete the review.
