Electrical Steel Wire EDM Feasibility Review
Electrical Steel can be machined with Wire EDM when the geometry matches through profiles, precision slots, punches, inserts, cutouts, narrow webs, and tapered walls. Electrical Steel is thin magnetic steel where edge damage and interlaminar condition are functional requirements; the supplied condition affects support, discharge energy, finishing, and inspection.
Quick Answer
Wire EDM is suitable for Electrical Steel when the wire can pass completely through the workpiece from an edge or a start hole. The supplied condition must be stated before tolerance and surface requirements are confirmed.
Key Material Decisions
How This Material Behaves
Thin magnetic steel where edge damage and interlaminar condition are functional requirements. In Wire EDM, the supplied condition changes stress release during the through cut, edge response to trim passes, and the final corrosion or surface-protection route.
Choosing the Right Condition
Choose Wire EDM for through profiles, precision slots, punches, inserts, cutouts, narrow webs, and tapered walls. State the exact Electrical Steel condition, then set tolerance, finish, support, and inspection from the controlled feature rather than the whole part.
Risks to Manage
For Wire EDM, Lamination edge condition, stacking flatness and magnetic-loss requirements must remain part of acceptance. Between the rough cut and the final skim passes, wire lag and uneven flushing can bias the lower kerf, with the highest consequence at lamination edges, stacking flatness and magnetic sections. The Electrical Steel feature may therefore show flatness loss or altered edge condition that reduces stacking quality or magnetic performance. For Electrical Steel, use low-energy finishing, keep thin sections flat, and preserve the specified edge and insulation condition. Measure taper, straightness and datum position from the free-state part; document flatness, edge continuity, insulation condition and magnetic acceptance for Electrical Steel.

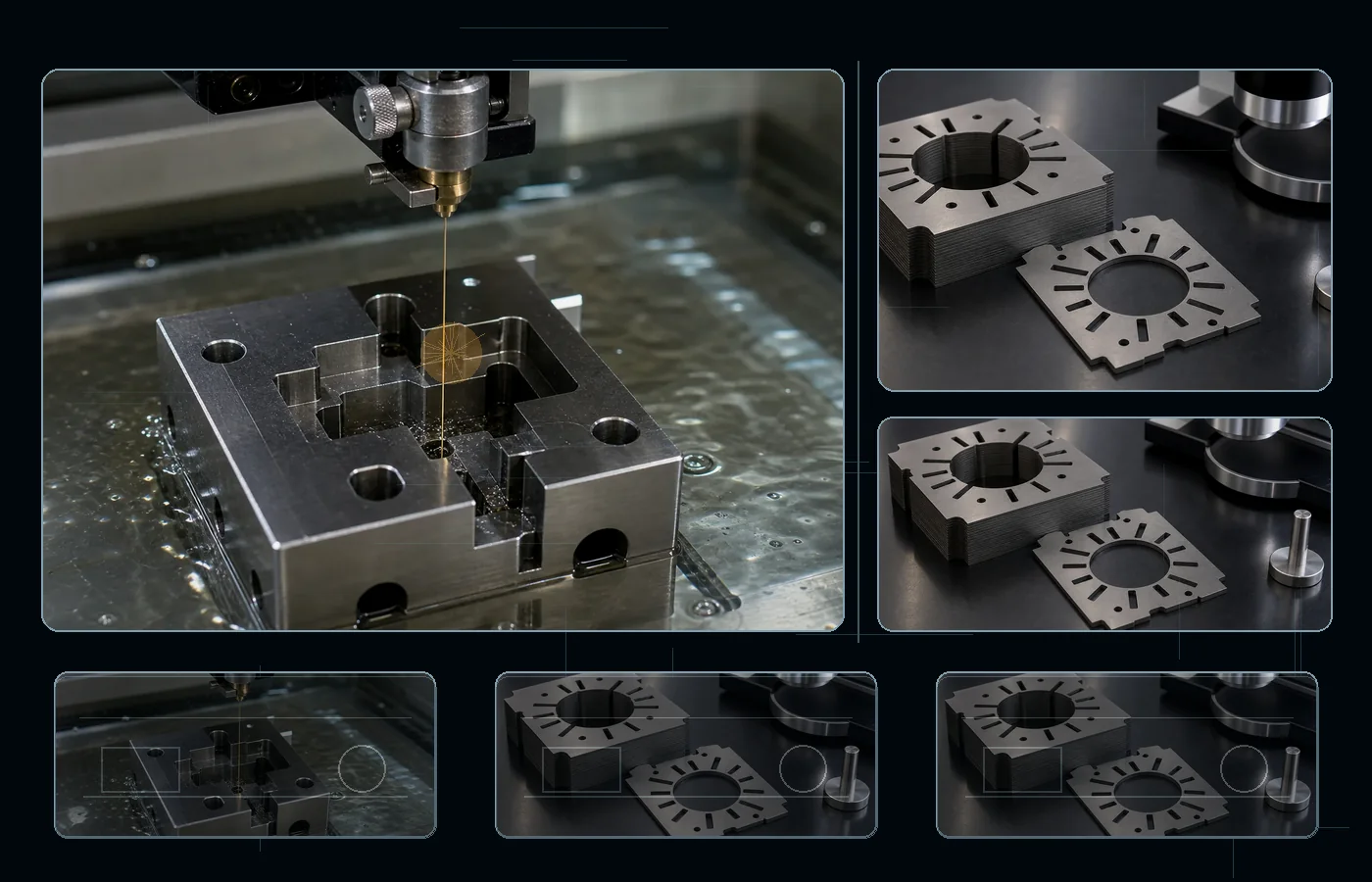

How Wire EDM Works on Electrical Steel
Wire EDM removes Electrical Steel along a continuous through-cut with a moving wire electrode. Wire tension, guide alignment, flushing and trim-pass offset control kerf, taper, verticality and internal corner radius as the profile opens. The route requires a complete wire path from an edge or start hole and does not produce blind cavities.
Wire EDM Capability Reference
| What you're asking | What you can expect |
|---|---|
| Feature types | through profiles, precision slots, punches, inserts, cutouts, narrow webs, and tapered walls |
| Tolerance | ±0.005–0.025 mm |
| Surface finish | Ra 0.2–3.2 μm |
| Wire diameter | 0.10–0.30 mm planning range |
| Minimum internal corner | Approximately wire radius plus spark gap |
| Main limitation | Blind cavities and closed pockets are not wire-cut features. |
Material Condition Reference
| Condition | What to expect | Watch out for | Surface notes |
|---|---|---|---|
| annealed lamination stock | Use stable support and economical roughing. | Clamping and material condition can move delicate features. | Apply fine finishing only to functional faces. |
| punched or formed condition | Balance dimensional stability with feature-specific finishing. | Residual stress can shift thin sections or small details. | Identify wear, seal, fatigue, or contact surfaces. |
| stress-relieved finished stack | Use conservative energy and selective inspection. | Finished or hardened surfaces can be sensitive to edge damage and recast. | Use lower-energy finishing or post-processing where function requires it. |
How This Material Behaves
Electrical steel is selected for controlled magnetic behavior and is often used as thin sheet or stacked laminations. In EDM, this means thermal damage, edge burr, shorting between laminations, or loss of insulating coating can matter more than nominal profile accuracy. Support thin sheets fully, limit heat input on magnetic edges, and inspect coating continuity and stack condition separately from size. For Wire EDM, Lamination edge condition, stacking flatness and magnetic-loss requirements must remain part of acceptance. For laminations and thin magnetic sections, burr-free geometry is useful, but edge condition, stacking flatness and magnetic-loss requirements must be checked after release.
Surface Integrity and Post-Process
For Wire EDM on Electrical Steel, keep discharge energy low on thin laminations and inspect edge continuity rather than applying a generic polish requirement. Separate the rough cut from skim cuts and apply the fine finish only to functional edges. Inspect roughness, edge rounding, recast and corrosion or fatigue requirements after the final pass; include polishing, coating or protection allowance wherever it changes final size.
Electrical Steel Wire EDM Checkpoints
- Confirm that the feature matches through profiles, precision slots, punches, inserts, cutouts, narrow webs, and tapered walls.
- State the supplied condition: annealed lamination stock, punched or formed condition, and stress-relieved finished stack.
- Mark the controlled dimensions, functional surfaces, datum scheme, and inspection method.
Typical Parts and Features
- motor laminations
- transformer profiles
- magnetic test coupons
- punches and die inserts
- precision profile gauges
- gear and spline outlines
Limits and Better Alternatives
Main Limit
Blind cavities and closed pockets are not wire-cut features because the wire needs a continuous through path. On Electrical Steel, generic thick-part EDM language is inappropriate for lamination work; the supplied condition still controls support, finishing, and surface-integrity review.
Consider Another Route When
Use Sinker EDM for blind cavities, CNC machining for accessible open geometry, or laser cutting when thin-sheet speed matters more than EDM edge quality.
Practical Next Step
Send the Electrical Steel drawing with condition, controlled geometry, tolerance, functional surface callouts, quantity, and inspection requirements. If the route is unclear, we will compare Wire EDM with the adjacent EDM or conventional process.
Practical Takeaway
Electrical Steel is compatible with Wire EDM when the feature matches the process access. The supplied condition determines support, finishing, surface control, and inspection.
Request a Machining Feasibility Review
Send material grade, drawing files, tolerance and quantity. We confirm process fit before quoting.
- Process: Wire EDM
- Material: Electrical Steel
- Drawing or part sketch
- Material grade
- Thickness / part size
- Quantity
- Tolerance and critical dimensions
- Surface finish or inspection requirement
STEP/STP, DXF, DWG, PDF, IGS/IGES or ZIP.
Confidential drawing review. NDA support available on request.
Frequently Asked Questions
Can Electrical Steel be machined with Wire EDM?
Yes, when the wire can pass completely through the workpiece from an edge or a start hole. Electrical Steel is electrically conductive and the final route follows the feature geometry and supplied condition.
What controls Wire EDM on Electrical Steel?
The main process controls are wire diameter, kerf compensation, flushing, wire tension, guide alignment, taper control, and trim-pass stability. The Electrical Steel condition adds dimensional-stability and surface-integrity requirements.
What is the main risk?
For Wire EDM, Lamination edge condition, stacking flatness and magnetic-loss requirements must remain part of acceptance. Between the rough cut and the final skim passes, wire lag and uneven flushing can bias the lower kerf, with the highest consequence at lamination edges, stacking flatness and magnetic sections. The Electrical Steel feature may therefore show flatness loss or altered edge condition that reduces stacking quality or magnetic performance. For Electrical Steel, use low-energy finishing, keep thin sections flat, and preserve the specified edge and insulation condition. Measure taper, straightness and datum position from the free-state part; document flatness, edge continuity, insulation condition and magnetic acceptance for Electrical Steel.
What should I send for review?
Send the drawing, exact Electrical Steel condition, controlled geometry, tolerance, functional surface requirements, quantity, and inspection expectations. If any item is undecided, send what you have and we will help complete the review.
