Electrical Steel Small Hole EDM Drilling Feasibility Review
Electrical Steel can be machined with Small Hole EDM when the geometry matches small through holes, deep holes, angled holes, cooling holes, vent holes, and start holes in hard or heat-resistant alloys. Electrical Steel is thin magnetic steel where edge damage and interlaminar condition are functional requirements; the supplied condition affects support, discharge energy, finishing, and inspection.
Quick Answer
Small Hole EDM is suitable for Electrical Steel when the feature is a small, deep, angled, cooling, vent, or start hole in conductive material. The supplied condition must be stated before tolerance and surface requirements are confirmed.
Key Material Decisions
How This Material Behaves
Thin magnetic steel where edge damage and interlaminar condition are functional requirements. In Small Hole EDM, the supplied condition changes bore stability, breakthrough quality, wall finish, and the inspection plan for straightness and position.
Choosing the Right Condition
Choose Small Hole EDM for small through holes, deep holes, angled holes, cooling holes, vent holes, and start holes in hard or heat-resistant alloys. State the exact Electrical Steel condition, then set tolerance, finish, support, and inspection from the controlled feature rather than the whole part.
Risks to Manage
For Small Hole EDM, Lamination edge condition, stacking flatness and magnetic-loss requirements must remain part of acceptance. Electrode shortening and debris transport can change taper, straightness and wall condition together between the stable entry region and the far-side exit, especially around lamination edges, stacking flatness and magnetic sections. The practical failure in Electrical Steel is layer movement, exit mismatch or edge alteration across a lamination stack. For Electrical Steel, use low-energy finishing, keep thin sections flat, and preserve the specified edge and insulation condition. Measure the full entry-to-exit result after breakthrough and cleaning; document flatness, edge continuity, insulation condition and magnetic acceptance for Electrical Steel.
How Small Hole EDM Works on Electrical Steel

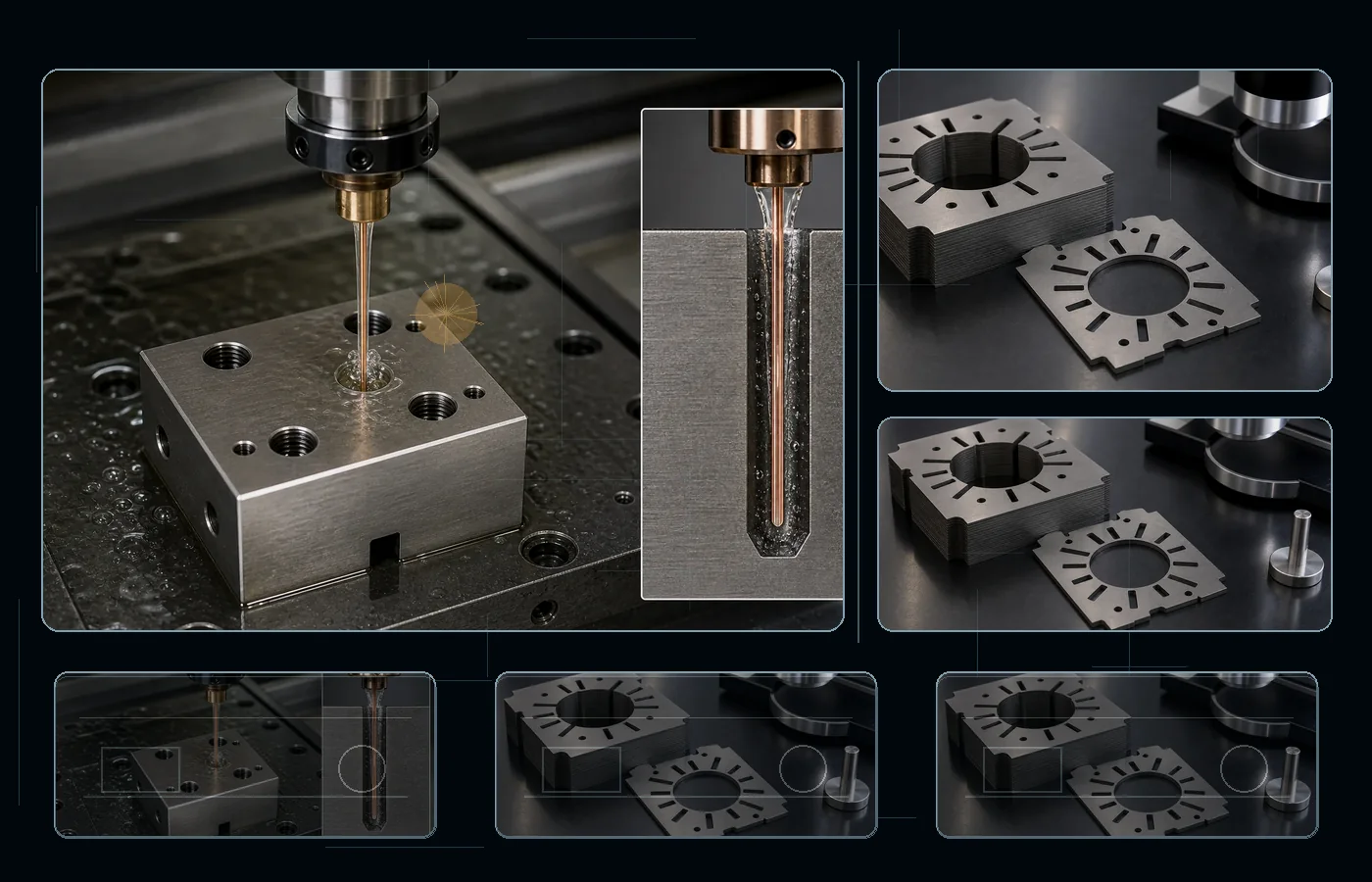

Small Hole EDM advances a rotating tubular electrode through Electrical Steel while dielectric exits at the cutting tip. Electrode wear, runout, internal flushing, true hole depth and breakthrough support control entry-to-exit diameter, taper, straightness and wall condition. Hole diameter, depth and depth-to-diameter ratio—not stock thickness alone—define the process limit.
Small Hole EDM Capability Reference
| What you're asking | What you can expect |
|---|---|
| Feature types | small through holes, deep holes, angled holes, cooling holes, vent holes, and start holes in hard or heat-resistant alloys |
| Tolerance | ±0.010–0.050 mm |
| Surface finish | Hole-wall finish is feature-dependent |
| Typical diameter | About 0.3–3.0 mm for ordinary planning |
| Depth driver | Depth-to-diameter ratio, straightness, and breakthrough |
| Main limitation | Very small diameter combined with extreme depth may require specialized equipment, staged electrodes, and dedicated metrology. |
Material Condition Reference
| Condition | What to expect | Watch out for | Surface notes |
|---|---|---|---|
| annealed lamination stock | Use stable support and economical roughing. | Clamping and material condition can move delicate features. | Apply fine finishing only to functional faces. |
| punched or formed condition | Balance dimensional stability with feature-specific finishing. | Residual stress can shift thin sections or small details. | Identify wear, seal, fatigue, or contact surfaces. |
| stress-relieved finished stack | Use conservative energy and selective inspection. | Finished or hardened surfaces can be sensitive to edge damage and recast. | Use lower-energy finishing or post-processing where function requires it. |
How This Material Behaves
Electrical steel is selected for controlled magnetic behavior and is often used as thin sheet or stacked laminations. In EDM, this means thermal damage, edge burr, shorting between laminations, or loss of insulating coating can matter more than nominal profile accuracy. Support thin sheets fully, limit heat input on magnetic edges, and inspect coating continuity and stack condition separately from size. For Small Hole EDM, Lamination edge condition, stacking flatness and magnetic-loss requirements must remain part of acceptance. For small holes in laminations or stacked sections, entry-to-exit alignment and edge condition must be checked without masking layer movement.
Surface Integrity and Post-Process
For Small Hole EDM on Electrical Steel, keep discharge energy low on thin laminations and inspect edge continuity rather than applying a generic polish requirement. Reduce discharge energy near final size and breakthrough, then evaluate entry, exit, taper and wall condition separately. For fatigue-, flow- or seal-critical holes, specify recast acceptance or post-process cleaning and finishing instead of relying on diameter alone.
Electrical Steel Small Hole EDM Checkpoints
- Confirm that the feature matches small through holes, deep holes, angled holes, cooling holes, vent holes, and start holes in hard or heat-resistant alloys.
- State the supplied condition: annealed lamination stock, punched or formed condition, and stress-relieved finished stack.
- Mark the controlled dimensions, functional surfaces, datum scheme, and inspection method.
Typical Parts and Features
- motor laminations
- transformer profiles
- magnetic test coupons
- turbine-blade cooling holes
- mold and die vent holes
- injector and nozzle holes
Limits and Better Alternatives
Main Limit
Hole depth, diameter, aspect ratio, flushing, and breakthrough quality—not stock thickness alone—set the practical limit. On Electrical Steel, generic thick-part EDM language is inappropriate for lamination work; the supplied condition still controls support, finishing, and surface-integrity review.
Consider Another Route When
Use mechanical drilling when the tool can reach economically, laser drilling for suitable thin geometry, or Micro EDM for smaller precision holes.
Practical Next Step
Send the Electrical Steel drawing with condition, controlled geometry, tolerance, functional surface callouts, quantity, and inspection requirements. If the route is unclear, we will compare Small Hole EDM with the adjacent EDM or conventional process.
Practical Takeaway
Electrical Steel is compatible with Small Hole EDM when the feature matches the process access. The supplied condition determines support, finishing, surface control, and inspection.
Request a Machining Feasibility Review
Send material grade, drawing files, tolerance and quantity. We confirm process fit before quoting.
- Process: Small Hole EDM
- Material: Electrical Steel
- Drawing or part sketch
- Material grade
- Thickness / part size
- Quantity
- Tolerance and critical dimensions
- Surface finish or inspection requirement
STEP/STP, DXF, DWG, PDF, IGS/IGES or ZIP.
Confidential drawing review. NDA support available on request.
Frequently Asked Questions
Can Electrical Steel be machined with Small Hole EDM?
Yes, when the feature is a small, deep, angled, cooling, vent, or start hole in conductive material. Electrical Steel is electrically conductive and the final route follows the feature geometry and supplied condition.
What controls Small Hole EDM on Electrical Steel?
The main process controls are electrode diameter, true hole depth, depth-to-diameter ratio, tubular-electrode wear, flushing pressure, breakthrough quality, and hole-wall inspection. The Electrical Steel condition adds dimensional-stability and surface-integrity requirements.
What is the main risk?
For Small Hole EDM, Lamination edge condition, stacking flatness and magnetic-loss requirements must remain part of acceptance. Electrode shortening and debris transport can change taper, straightness and wall condition together between the stable entry region and the far-side exit, especially around lamination edges, stacking flatness and magnetic sections. The practical failure in Electrical Steel is layer movement, exit mismatch or edge alteration across a lamination stack. For Electrical Steel, use low-energy finishing, keep thin sections flat, and preserve the specified edge and insulation condition. Measure the full entry-to-exit result after breakthrough and cleaning; document flatness, edge continuity, insulation condition and magnetic acceptance for Electrical Steel.
What should I send for review?
Send the drawing, exact Electrical Steel condition, controlled geometry, tolerance, functional surface requirements, quantity, and inspection expectations. If any item is undecided, send what you have and we will help complete the review.
