Electrical Steel Micro EDM Feasibility Review
Electrical Steel can be machined with Micro EDM when the geometry matches micro holes, micro slots, miniature cavities, fine pins, and sub-millimeter precision details. Electrical Steel is thin magnetic steel where edge damage and interlaminar condition are functional requirements; the supplied condition affects support, discharge energy, finishing, and inspection.
Quick Answer
Micro EDM is suitable for Electrical Steel when the feature is a micro hole, micro slot, miniature cavity, fine pin, or other sub-millimeter detail. The supplied condition must be stated before tolerance and surface requirements are confirmed.
Key Material Decisions
How This Material Behaves
Thin magnetic steel where edge damage and interlaminar condition are functional requirements. In Micro EDM, the supplied condition directly changes discharge stability, electrode wear, edge quality, and the finishing plan—especially at micro scale.
Choosing the Right Condition
Choose Micro EDM for micro holes, micro slots, miniature cavities, fine pins, and sub-millimeter precision details. State the exact Electrical Steel condition, then set tolerance, finish, support, and inspection from the controlled feature rather than the whole part.
Risks to Manage
For Micro EDM, Lamination edge condition, stacking flatness and magnetic-loss requirements must remain part of acceptance. Where a few micrometers of wear or edge damage consume a large share of tolerance, electrode wear, debris and spark-gap variation can move size and pitch together, with the highest consequence at lamination edges, stacking flatness and magnetic sections. The Electrical Steel feature may therefore show a miniature magnetic section whose effective width is changed by edge alteration or measurement uncertainty. For Electrical Steel, use low-energy finishing, keep thin sections flat, and preserve the specified edge and insulation condition. Separate true geometry from edge rounding, residue and measurement uncertainty; document flatness, edge continuity, insulation condition and magnetic acceptance for Electrical Steel.

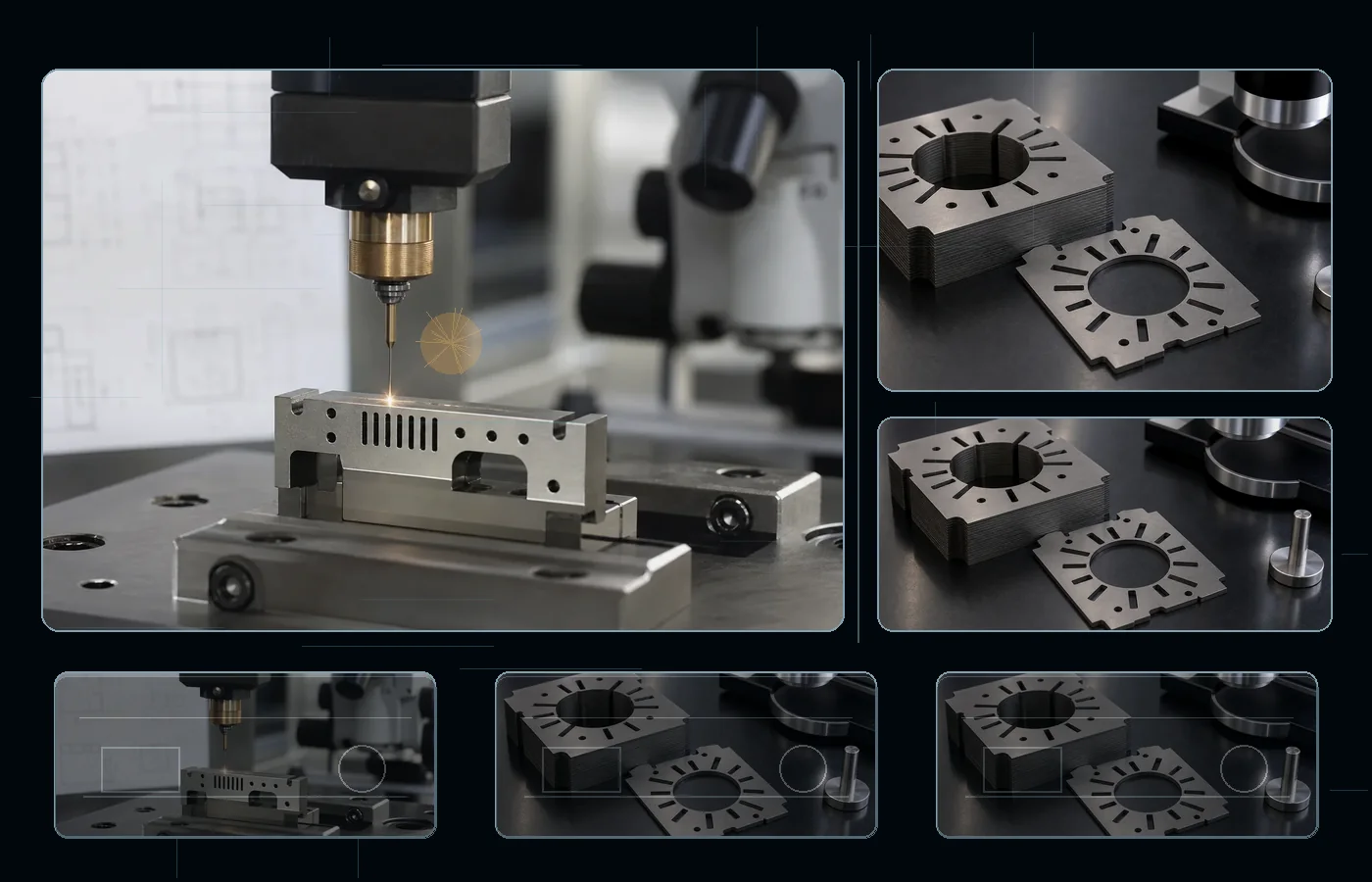

How Micro EDM Works on Electrical Steel
Micro EDM uses a very small electrode and low discharge energy to machine miniature features in Electrical Steel. Electrode wear, spark-gap stability, micro-flushing, temperature control and measurement resolution consume a significant share of the available tolerance. The local feature size and aspect ratio—not the overall workpiece size—must define the route.
Micro EDM Capability Reference
| What you're asking | What you can expect |
|---|---|
| Feature types | micro holes, micro slots, miniature cavities, fine pins, and sub-millimeter precision details |
| Tolerance | ±0.002–0.010 mm |
| Surface finish | Ra 0.1–1.6 μm |
| Feature scale | Sub-millimeter holes, slots, and cavities |
| Primary micro limit | Electrode wear and measurement resolution |
| Main limitation | Loose-tolerance or easily accessible features are rarely economical with Micro EDM. |
Material Condition Reference
| Condition | What to expect | Watch out for | Surface notes |
|---|---|---|---|
| annealed lamination stock | Use stable support and economical roughing. | Clamping and material condition can move delicate features. | Apply fine finishing only to functional faces. |
| punched or formed condition | Balance dimensional stability with feature-specific finishing. | Residual stress can shift thin sections or small details. | Identify wear, seal, fatigue, or contact surfaces. |
| stress-relieved finished stack | Use conservative energy and selective inspection. | Finished or hardened surfaces can be sensitive to edge damage and recast. | Use lower-energy finishing or post-processing where function requires it. |
How This Material Behaves
Electrical steel is selected for controlled magnetic behavior and is often used as thin sheet or stacked laminations. In EDM, this means thermal damage, edge burr, shorting between laminations, or loss of insulating coating can matter more than nominal profile accuracy. Support thin sheets fully, limit heat input on magnetic edges, and inspect coating continuity and stack condition separately from size. For Micro EDM, Lamination edge condition, stacking flatness and magnetic-loss requirements must remain part of acceptance. On miniature magnetic features, edge alteration and measurement uncertainty can be significant relative to the functional section width.
Surface Integrity and Post-Process
For Micro EDM on Electrical Steel, keep discharge energy low on thin laminations and inspect edge continuity rather than applying a generic polish requirement. Use low-energy finishing and account for electrode replacement or calibration before final sizing. Specify edge, recast and post-process requirements only on functional microfeatures, and use metrology that can distinguish true size from edge rounding and surface residue.
Electrical Steel Micro EDM Checkpoints
- Confirm that the feature matches micro holes, micro slots, miniature cavities, fine pins, and sub-millimeter precision details.
- State the supplied condition: annealed lamination stock, punched or formed condition, and stress-relieved finished stack.
- Mark the controlled dimensions, functional surfaces, datum scheme, and inspection method.
Typical Parts and Features
- motor laminations
- transformer profiles
- magnetic test coupons
- micro holes
- micro slots
- miniature cavities
Limits and Better Alternatives
Main Limit
Loose-tolerance or easily accessible features are rarely economical with Micro EDM. On Electrical Steel, generic thick-part EDM language is inappropriate for lamination work; the supplied condition still controls support, finishing, and surface-integrity review.
Consider Another Route When
Use conventional EDM for larger features, precision laser processing for suitable thin geometry, or mechanical micro-drilling where a tool can reach.
Practical Next Step
Send the Electrical Steel drawing with condition, controlled geometry, tolerance, functional surface callouts, quantity, and inspection requirements. If the route is unclear, we will compare Micro EDM with the adjacent EDM or conventional process.
Practical Takeaway
Electrical Steel is compatible with Micro EDM when the feature matches the process access. The supplied condition determines support, finishing, surface control, and inspection.
Request a Machining Feasibility Review
Send material grade, drawing files, tolerance and quantity. We confirm process fit before quoting.
- Process: Micro EDM
- Material: Electrical Steel
- Drawing or part sketch
- Material grade
- Thickness / part size
- Quantity
- Tolerance and critical dimensions
- Surface finish or inspection requirement
STEP/STP, DXF, DWG, PDF, IGS/IGES or ZIP.
Confidential drawing review. NDA support available on request.
Frequently Asked Questions
Can Electrical Steel be machined with Micro EDM?
Yes, when the feature is a micro hole, micro slot, miniature cavity, fine pin, or other sub-millimeter detail. Electrical Steel is electrically conductive and the final route follows the feature geometry and supplied condition.
What controls Micro EDM on Electrical Steel?
The main process controls are electrode wear, feature-to-electrode ratio, micro-flushing, aspect ratio, edge radius, thermal stability, and measurement resolution. The Electrical Steel condition adds dimensional-stability and surface-integrity requirements.
What is the main risk?
For Micro EDM, Lamination edge condition, stacking flatness and magnetic-loss requirements must remain part of acceptance. Where a few micrometers of wear or edge damage consume a large share of tolerance, electrode wear, debris and spark-gap variation can move size and pitch together, with the highest consequence at lamination edges, stacking flatness and magnetic sections. The Electrical Steel feature may therefore show a miniature magnetic section whose effective width is changed by edge alteration or measurement uncertainty. For Electrical Steel, use low-energy finishing, keep thin sections flat, and preserve the specified edge and insulation condition. Separate true geometry from edge rounding, residue and measurement uncertainty; document flatness, edge continuity, insulation condition and magnetic acceptance for Electrical Steel.
What should I send for review?
Send the drawing, exact Electrical Steel condition, controlled geometry, tolerance, functional surface requirements, quantity, and inspection expectations. If any item is undecided, send what you have and we will help complete the review.
