DC53 Tool Steel Wire EDM Feasibility Review
DC53 Tool Steel can be machined with Wire EDM when the geometry matches through profiles, precision slots, punches, inserts, cutouts, narrow webs, and tapered walls. DC53 Tool Steel is a modified cold-work tool steel designed for toughness and dimensional stability after heat treatment; the supplied condition affects support, discharge energy, finishing, and inspection.
Quick Answer
Wire EDM is suitable for DC53 Tool Steel when the wire can pass completely through the workpiece from an edge or a start hole. The supplied condition must be stated before tolerance and surface requirements are confirmed.
Key Material Decisions
How This Material Behaves
A modified cold-work tool steel designed for toughness and dimensional stability after heat treatment. In Wire EDM, the supplied condition changes stress release during the through cut, edge response to trim passes, and the final corrosion or surface-protection route.
Choosing the Right Condition
Choose Wire EDM for through profiles, precision slots, punches, inserts, cutouts, narrow webs, and tapered walls. State the exact DC53 Tool Steel condition, then set tolerance, finish, support, and inspection from the controlled feature rather than the whole part.
Risks to Manage
For Wire EDM, the actual hardening and tempering route still controls residual stress and edge-integrity planning. The changing support condition can alter taper and datum position while the wire follows the programmed path during a long profile or narrow-web release, especially around sharp edges, carbide-rich zones and thermally affected surfaces. The practical failure in DC53 Tool Steel is profile error accompanied by chipping, carbide pullout or microcracks at the die edge. For DC53 Tool Steel, separate roughing from conservative finishing, support fragile sections, and verify edge integrity beyond roughness alone. Verify the top and bottom contour after the part is fully released; document geometry, chipping, pullout, white layer and microcracks for DC53 Tool Steel.

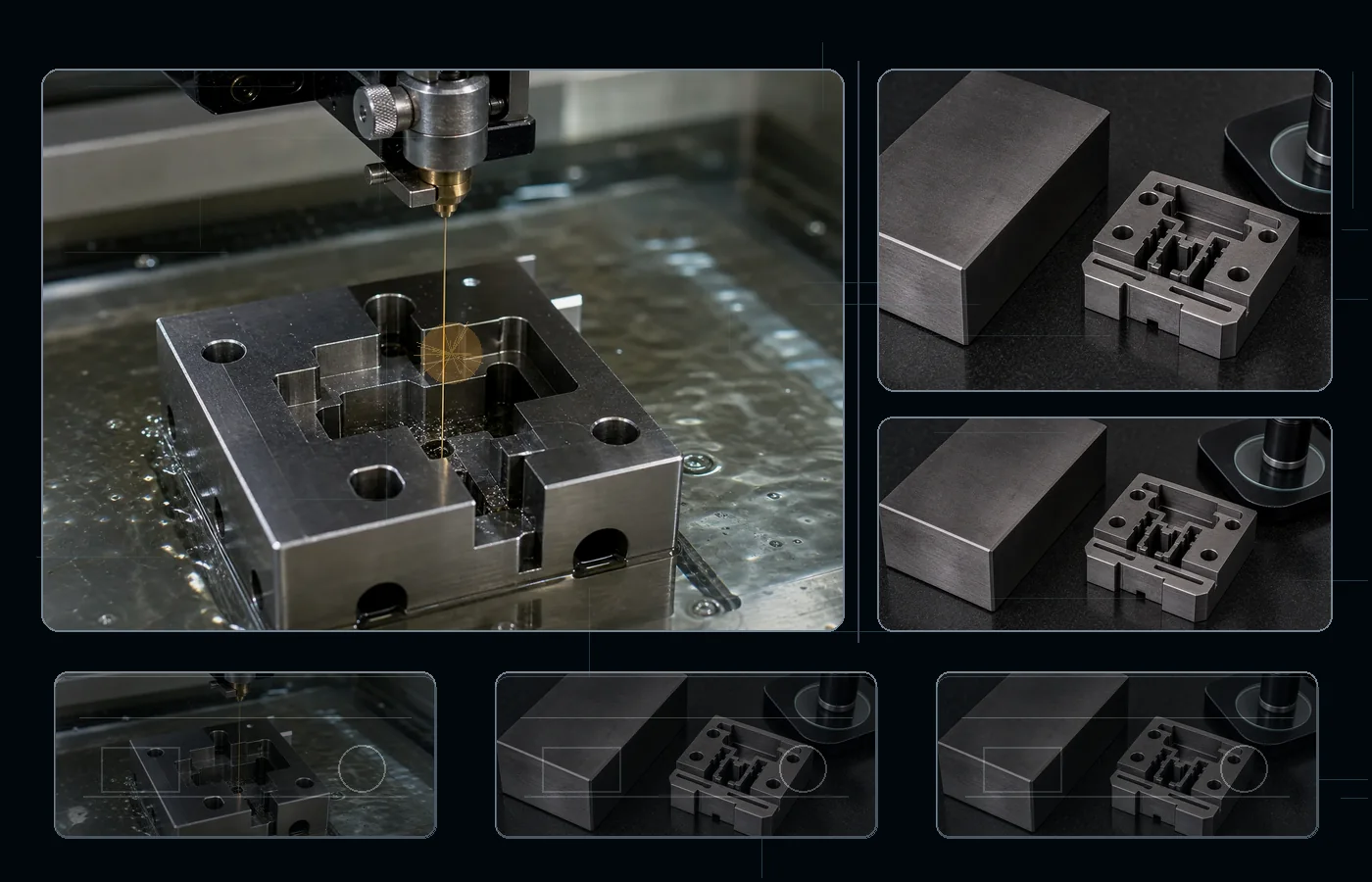

How Wire EDM Works on DC53 Tool Steel
Wire EDM removes DC53 Tool Steel along a continuous through-cut with a moving wire electrode. Wire tension, guide alignment, flushing and trim-pass offset control kerf, taper, verticality and internal corner radius as the profile opens. The route requires a complete wire path from an edge or start hole and does not produce blind cavities.
Wire EDM Capability Reference
| What you're asking | What you can expect |
|---|---|
| Feature types | through profiles, precision slots, punches, inserts, cutouts, narrow webs, and tapered walls |
| Tolerance | ±0.005–0.025 mm |
| Surface finish | Ra 0.2–3.2 μm |
| Wire diameter | 0.10–0.30 mm planning range |
| Minimum internal corner | Approximately wire radius plus spark gap |
| Main limitation | Blind cavities and closed pockets are not wire-cut features. |
Material Condition Reference
| Condition | What to expect | Watch out for | Surface notes |
|---|---|---|---|
| annealed machining condition | Machine economically before final hardening when the route allows. | Soft stock can move after later heat treatment. | Leave allowance for the final hardened geometry. |
| prehardened or stress-relieved | Use the prehardened or stress-relieved state for stable tooling work. | Residual stress can move deep ribs or thin inserts. | Use datum-controlled finishing on working edges. |
| hardened and tempered | Use low-energy finishing on hardened and tempered tooling. | White layer and edge microcracks can shorten tool life. | Use trim passes, polishing, or recast limits on working edges. |
How This Material Behaves
DC53 is a modified cold-work tool steel designed for higher toughness than conventional D2 at high hardness. In EDM, this means it tolerates demanding geometry better, but rough EDM can still create a brittle recast layer that defeats the expected toughness. Finish with controlled low-energy passes and remove or limit recast on cutting edges and fatigue-loaded details. For Wire EDM, the actual hardening and tempering route still controls residual stress and edge-integrity planning. On punches, inserts and die lands, stress release and brittle edge response can appear together as profile shift, chipping or microcracks.
Surface Integrity and Post-Process
For Wire EDM on DC53 Tool Steel, use rough and finish settings separately, then specify polishing or recast removal only on critical molding and wear faces. Separate the rough cut from skim cuts and apply the fine finish only to functional edges. Inspect roughness, edge rounding, recast and corrosion or fatigue requirements after the final pass; include polishing, coating or protection allowance wherever it changes final size.
DC53 Tool Steel Wire EDM Checkpoints
- Confirm that the feature matches through profiles, precision slots, punches, inserts, cutouts, narrow webs, and tapered walls.
- State the supplied condition: annealed machining condition, prehardened or stress-relieved, and hardened and tempered.
- Mark the controlled dimensions, functional surfaces, datum scheme, and inspection method.
Typical Parts and Features
- mold inserts
- punches and dies
- wear blocks
- punches and die inserts
- precision profile gauges
- gear and spline outlines
Limits and Better Alternatives
Main Limit
Blind cavities and closed pockets are not wire-cut features because the wire needs a continuous through path. On DC53 Tool Steel, the actual hardening and tempering route still controls residual stress and edge-integrity planning; the supplied condition still controls support, finishing, and surface-integrity review.
Consider Another Route When
Use Sinker EDM for blind cavities, CNC machining for accessible open geometry, or laser cutting when thin-sheet speed matters more than EDM edge quality.
Practical Next Step
Send the DC53 Tool Steel drawing with condition, controlled geometry, tolerance, functional surface callouts, quantity, and inspection requirements. If the route is unclear, we will compare Wire EDM with the adjacent EDM or conventional process.
Practical Takeaway
DC53 Tool Steel is compatible with Wire EDM when the feature matches the process access. The supplied condition determines support, finishing, surface control, and inspection.
Request a Machining Feasibility Review
Send material grade, drawing files, tolerance and quantity. We confirm process fit before quoting.
- Process: Wire EDM
- Material: DC53 Tool Steel
- Drawing or part sketch
- Material grade
- Thickness / part size
- Quantity
- Tolerance and critical dimensions
- Surface finish or inspection requirement
STEP/STP, DXF, DWG, PDF, IGS/IGES or ZIP.
Confidential drawing review. NDA support available on request.
Frequently Asked Questions
Can DC53 Tool Steel be machined with Wire EDM?
Yes, when the wire can pass completely through the workpiece from an edge or a start hole. DC53 Tool Steel is electrically conductive and the final route follows the feature geometry and supplied condition.
What controls Wire EDM on DC53 Tool Steel?
The main process controls are wire diameter, kerf compensation, flushing, wire tension, guide alignment, taper control, and trim-pass stability. The DC53 Tool Steel condition adds dimensional-stability and surface-integrity requirements.
What is the main risk?
For Wire EDM, the actual hardening and tempering route still controls residual stress and edge-integrity planning. The changing support condition can alter taper and datum position while the wire follows the programmed path during a long profile or narrow-web release, especially around sharp edges, carbide-rich zones and thermally affected surfaces. The practical failure in DC53 Tool Steel is profile error accompanied by chipping, carbide pullout or microcracks at the die edge. For DC53 Tool Steel, separate roughing from conservative finishing, support fragile sections, and verify edge integrity beyond roughness alone. Verify the top and bottom contour after the part is fully released; document geometry, chipping, pullout, white layer and microcracks for DC53 Tool Steel.
What should I send for review?
Send the drawing, exact DC53 Tool Steel condition, controlled geometry, tolerance, functional surface requirements, quantity, and inspection expectations. If any item is undecided, send what you have and we will help complete the review.
