DC53 Tool Steel Small Hole EDM Drilling Feasibility Review
DC53 Tool Steel can be machined with Small Hole EDM when the geometry matches small through holes, deep holes, angled holes, cooling holes, vent holes, and start holes in hard or heat-resistant alloys. DC53 Tool Steel is a modified cold-work tool steel designed for toughness and dimensional stability after heat treatment; the supplied condition affects support, discharge energy, finishing, and inspection.
Quick Answer
Small Hole EDM is suitable for DC53 Tool Steel when the feature is a small, deep, angled, cooling, vent, or start hole in conductive material. The supplied condition must be stated before tolerance and surface requirements are confirmed.
Key Material Decisions
How This Material Behaves
A modified cold-work tool steel designed for toughness and dimensional stability after heat treatment. In Small Hole EDM, the supplied condition changes bore stability, breakthrough quality, wall finish, and the inspection plan for straightness and position.
Choosing the Right Condition
Choose Small Hole EDM for small through holes, deep holes, angled holes, cooling holes, vent holes, and start holes in hard or heat-resistant alloys. State the exact DC53 Tool Steel condition, then set tolerance, finish, support, and inspection from the controlled feature rather than the whole part.
Risks to Manage
For Small Hole EDM, the actual hardening and tempering route still controls residual stress and edge-integrity planning. Tubular-electrode wear and pressure loss can reduce exit diameter and shift the path between the stable entry region and the far-side exit, especially around sharp edges, carbide-rich zones and thermally affected surfaces. The practical failure in DC53 Tool Steel is an apparently acceptable diameter with a chipped exit or cracked carbide-rich wall. For DC53 Tool Steel, separate roughing from conservative finishing, support fragile sections, and verify edge integrity beyond roughness alone. Inspect entry, exit, taper, position and wall condition independently; document geometry, chipping, pullout, white layer and microcracks for DC53 Tool Steel.
How Small Hole EDM Works on DC53 Tool Steel

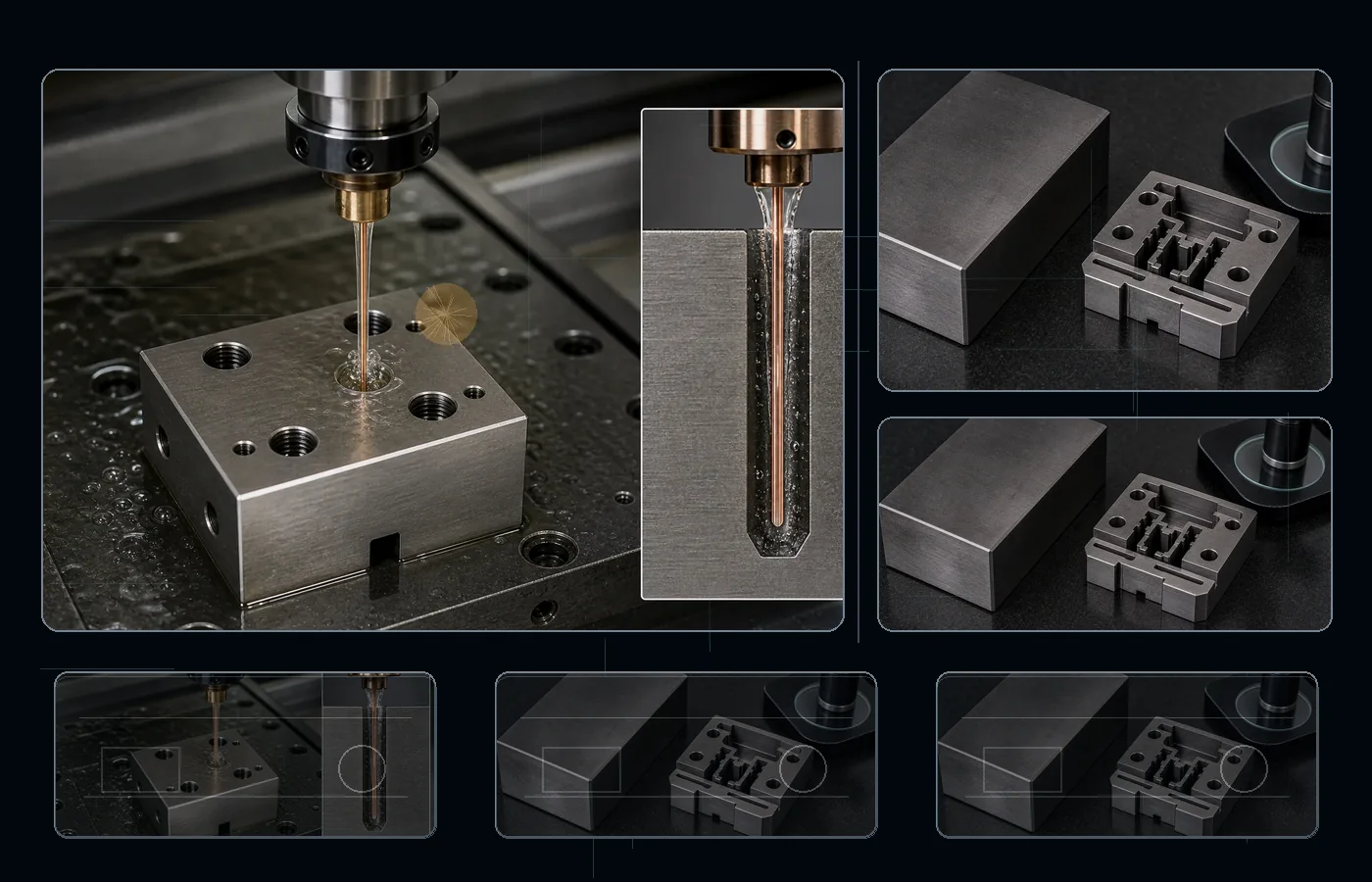

Small Hole EDM advances a rotating tubular electrode through DC53 Tool Steel while dielectric exits at the cutting tip. Electrode wear, runout, internal flushing, true hole depth and breakthrough support control entry-to-exit diameter, taper, straightness and wall condition. Hole diameter, depth and depth-to-diameter ratio—not stock thickness alone—define the process limit.
Small Hole EDM Capability Reference
| What you're asking | What you can expect |
|---|---|
| Feature types | small through holes, deep holes, angled holes, cooling holes, vent holes, and start holes in hard or heat-resistant alloys |
| Tolerance | ±0.010–0.050 mm |
| Surface finish | Hole-wall finish is feature-dependent |
| Typical diameter | About 0.3–3.0 mm for ordinary planning |
| Depth driver | Depth-to-diameter ratio, straightness, and breakthrough |
| Main limitation | Very small diameter combined with extreme depth may require specialized equipment, staged electrodes, and dedicated metrology. |
Material Condition Reference
| Condition | What to expect | Watch out for | Surface notes |
|---|---|---|---|
| annealed machining condition | Machine economically before final hardening when the route allows. | Soft stock can move after later heat treatment. | Leave allowance for the final hardened geometry. |
| prehardened or stress-relieved | Use the prehardened or stress-relieved state for stable tooling work. | Residual stress can move deep ribs or thin inserts. | Use datum-controlled finishing on working edges. |
| hardened and tempered | Use low-energy finishing on hardened and tempered tooling. | White layer and edge microcracks can shorten tool life. | Use trim passes, polishing, or recast limits on working edges. |
How This Material Behaves
DC53 is a modified cold-work tool steel designed for higher toughness than conventional D2 at high hardness. In EDM, this means it tolerates demanding geometry better, but rough EDM can still create a brittle recast layer that defeats the expected toughness. Finish with controlled low-energy passes and remove or limit recast on cutting edges and fatigue-loaded details. For Small Hole EDM, the actual hardening and tempering route still controls residual stress and edge-integrity planning. At the hole wall and exit edge, breakthrough energy can expose carbide pullout, cracking or loss of edge strength.
Surface Integrity and Post-Process
For Small Hole EDM on DC53 Tool Steel, use rough and finish settings separately, then specify polishing or recast removal only on critical molding and wear faces. Reduce discharge energy near final size and breakthrough, then evaluate entry, exit, taper and wall condition separately. For fatigue-, flow- or seal-critical holes, specify recast acceptance or post-process cleaning and finishing instead of relying on diameter alone.
DC53 Tool Steel Small Hole EDM Checkpoints
- Confirm that the feature matches small through holes, deep holes, angled holes, cooling holes, vent holes, and start holes in hard or heat-resistant alloys.
- State the supplied condition: annealed machining condition, prehardened or stress-relieved, and hardened and tempered.
- Mark the controlled dimensions, functional surfaces, datum scheme, and inspection method.
Typical Parts and Features
- mold inserts
- punches and dies
- wear blocks
- turbine-blade cooling holes
- mold and die vent holes
- injector and nozzle holes
Limits and Better Alternatives
Main Limit
Hole depth, diameter, aspect ratio, flushing, and breakthrough quality—not stock thickness alone—set the practical limit. On DC53 Tool Steel, the actual hardening and tempering route still controls residual stress and edge-integrity planning; the supplied condition still controls support, finishing, and surface-integrity review.
Consider Another Route When
Use mechanical drilling when the tool can reach economically, laser drilling for suitable thin geometry, or Micro EDM for smaller precision holes.
Practical Next Step
Send the DC53 Tool Steel drawing with condition, controlled geometry, tolerance, functional surface callouts, quantity, and inspection requirements. If the route is unclear, we will compare Small Hole EDM with the adjacent EDM or conventional process.
Practical Takeaway
DC53 Tool Steel is compatible with Small Hole EDM when the feature matches the process access. The supplied condition determines support, finishing, surface control, and inspection.
Request a Machining Feasibility Review
Send material grade, drawing files, tolerance and quantity. We confirm process fit before quoting.
- Process: Small Hole EDM
- Material: DC53 Tool Steel
- Drawing or part sketch
- Material grade
- Thickness / part size
- Quantity
- Tolerance and critical dimensions
- Surface finish or inspection requirement
STEP/STP, DXF, DWG, PDF, IGS/IGES or ZIP.
Confidential drawing review. NDA support available on request.
Frequently Asked Questions
Can DC53 Tool Steel be machined with Small Hole EDM?
Yes, when the feature is a small, deep, angled, cooling, vent, or start hole in conductive material. DC53 Tool Steel is electrically conductive and the final route follows the feature geometry and supplied condition.
What controls Small Hole EDM on DC53 Tool Steel?
The main process controls are electrode diameter, true hole depth, depth-to-diameter ratio, tubular-electrode wear, flushing pressure, breakthrough quality, and hole-wall inspection. The DC53 Tool Steel condition adds dimensional-stability and surface-integrity requirements.
What is the main risk?
For Small Hole EDM, the actual hardening and tempering route still controls residual stress and edge-integrity planning. Tubular-electrode wear and pressure loss can reduce exit diameter and shift the path between the stable entry region and the far-side exit, especially around sharp edges, carbide-rich zones and thermally affected surfaces. The practical failure in DC53 Tool Steel is an apparently acceptable diameter with a chipped exit or cracked carbide-rich wall. For DC53 Tool Steel, separate roughing from conservative finishing, support fragile sections, and verify edge integrity beyond roughness alone. Inspect entry, exit, taper, position and wall condition independently; document geometry, chipping, pullout, white layer and microcracks for DC53 Tool Steel.
What should I send for review?
Send the drawing, exact DC53 Tool Steel condition, controlled geometry, tolerance, functional surface requirements, quantity, and inspection expectations. If any item is undecided, send what you have and we will help complete the review.
