Cemented Carbide Small Hole EDM Drilling Feasibility Review
Cemented Carbide can be machined with Small Hole EDM when the geometry matches small through holes, deep holes, angled holes, cooling holes, vent holes, and start holes in hard or heat-resistant alloys. Cemented Carbide is hard-metal composite with binder-dependent EDM response; the supplied condition affects support, discharge energy, finishing, and inspection.
Quick Answer
Small Hole EDM is suitable for Cemented Carbide when the feature is a small, deep, angled, cooling, vent, or start hole in conductive material. The supplied condition must be stated before tolerance and surface requirements are confirmed.
Key Material Decisions
How This Material Behaves
Hard-metal composite with binder-dependent EDM response. In Small Hole EDM, the supplied condition changes bore stability, breakthrough quality, wall finish, and the inspection plan for straightness and position.
Choosing the Right Condition
Choose Small Hole EDM for small through holes, deep holes, angled holes, cooling holes, vent holes, and start holes in hard or heat-resistant alloys. State the exact Cemented Carbide condition, then set tolerance, finish, support, and inspection from the controlled feature rather than the whole part.
Risks to Manage
For Small Hole EDM, aggressive energy can weaken edges or expose binder-rich zones. Electrode shortening and debris transport can change taper, straightness and wall condition together between the stable entry region and the far-side exit, especially around grain boundaries, brittle rims and subsurface damage zones. The practical failure in Cemented Carbide is exit-rim chipping and hidden wall damage despite acceptable entry size. For Cemented Carbide, use conservative discharge energy, strong local support and microscopic inspection of edges and subsurface damage. Verify both ends of the hole and use sectioning or suitable wall inspection where service risk requires it; document geometry, chipping, grain pullout and subsurface cracking for Cemented Carbide.
How Small Hole EDM Works on Cemented Carbide

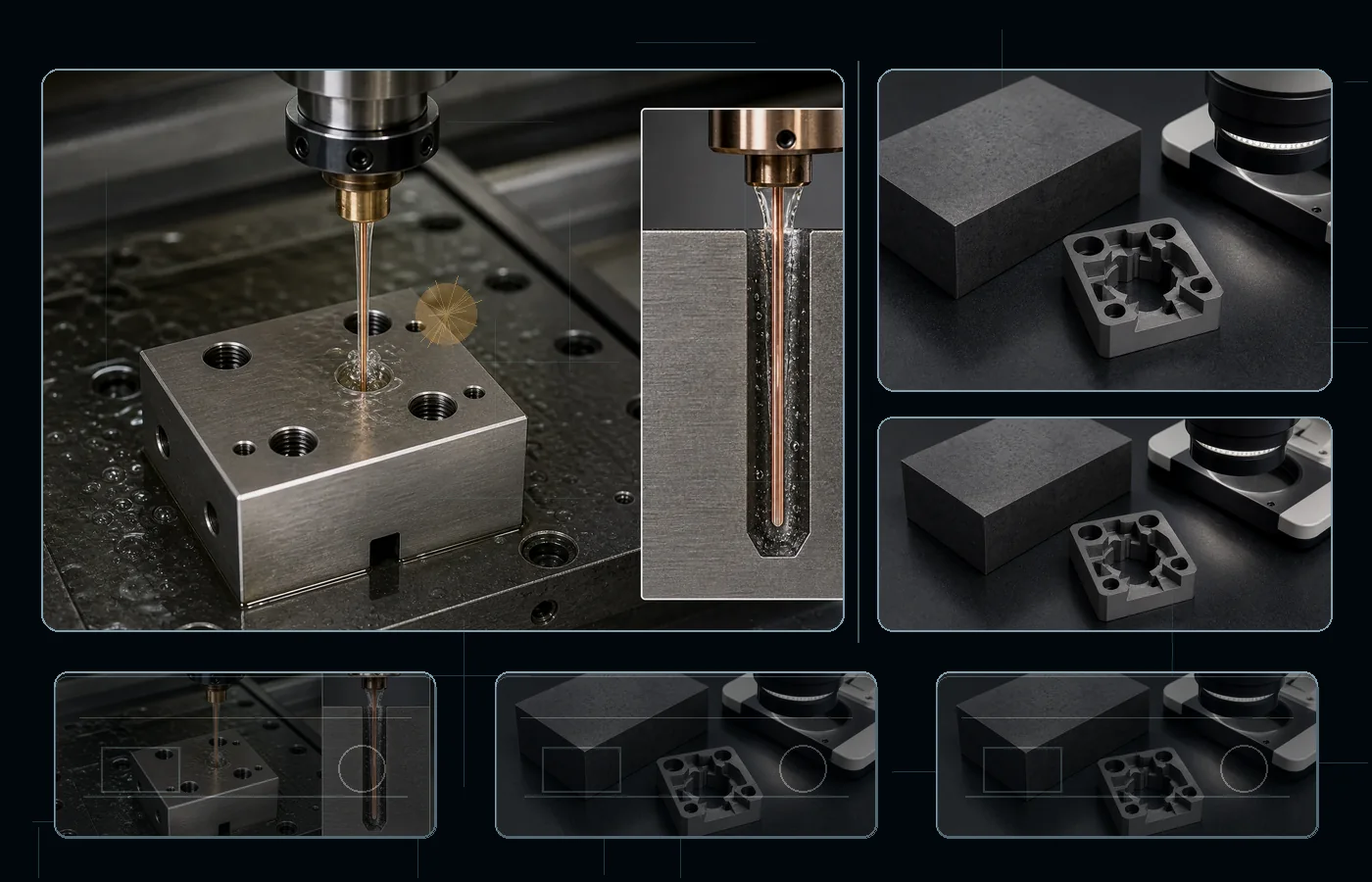

Small Hole EDM advances a rotating tubular electrode through Cemented Carbide while dielectric exits at the cutting tip. Electrode wear, runout, internal flushing, true hole depth and breakthrough support control entry-to-exit diameter, taper, straightness and wall condition. Hole diameter, depth and depth-to-diameter ratio—not stock thickness alone—define the process limit.
Small Hole EDM Capability Reference
| What you're asking | What you can expect |
|---|---|
| Feature types | small through holes, deep holes, angled holes, cooling holes, vent holes, and start holes in hard or heat-resistant alloys |
| Tolerance | ±0.010–0.050 mm |
| Surface finish | Hole-wall finish is feature-dependent |
| Typical diameter | About 0.3–3.0 mm for ordinary planning |
| Depth driver | Depth-to-diameter ratio, straightness, and breakthrough |
| Main limitation | Very small diameter combined with extreme depth may require specialized equipment, staged electrodes, and dedicated metrology. |
Material Condition Reference
| Condition | What to expect | Watch out for | Surface notes |
|---|---|---|---|
| as-sintered | Use low-force fixturing and conservative discharge energy. | Brittle edges can chip or binder-rich zones can erode unevenly. | Inspect edge breakout and surface integrity rather than Ra alone. |
| ground finish | Use stable support and reduced energy on finished stock. | Grinding stress or porosity can cause local cracking. | Apply selective polishing or lapping where practical. |
| polished or coated condition | Protect the final surface condition. | Coated, polished, or dense finished surfaces can be damaged by aggressive roughing. | Keep finishing local to the controlled feature. |
How This Material Behaves
Cemented carbide is a hard carbide skeleton held together by a metallic binder. In EDM, this means the binder can erode faster than the carbide grains, while aggressive energy can leave grain pullout, microcracks, or a weakened edge. Use low-energy finishing, strong flushing without impact on fragile corners, and verify critical surfaces by microscopy rather than roughness alone. For Small Hole EDM, aggressive energy can weaken edges or expose binder-rich zones. At breakthrough, the exit rim and hole wall are the critical locations for chipping, pullout and hidden subsurface damage.
Surface Integrity and Post-Process
For Small Hole EDM on Cemented Carbide, use conservative energy, strong support and inspection focused on edge chipping and subsurface damage. Reduce discharge energy near final size and breakthrough, then evaluate entry, exit, taper and wall condition separately. For fatigue-, flow- or seal-critical holes, specify recast acceptance or post-process cleaning and finishing instead of relying on diameter alone.
Cemented Carbide Small Hole EDM Checkpoints
- Confirm that the feature matches small through holes, deep holes, angled holes, cooling holes, vent holes, and start holes in hard or heat-resistant alloys.
- State the supplied condition: as-sintered, ground finish, and polished or coated condition.
- Mark the controlled dimensions, functional surfaces, datum scheme, and inspection method.
Typical Parts and Features
- wear inserts
- high-temperature contacts
- hard-metal nozzles
- turbine-blade cooling holes
- mold and die vent holes
- injector and nozzle holes
Limits and Better Alternatives
Main Limit
Hole depth, diameter, aspect ratio, flushing, and breakthrough quality—not stock thickness alone—set the practical limit. On Cemented Carbide, aggressive energy can weaken edges or expose binder-rich zones; the supplied condition still controls support, finishing, and surface-integrity review.
Consider Another Route When
Use mechanical drilling when the tool can reach economically, laser drilling for suitable thin geometry, or Micro EDM for smaller precision holes.
Practical Next Step
Send the Cemented Carbide drawing with condition, controlled geometry, tolerance, functional surface callouts, quantity, and inspection requirements. If the route is unclear, we will compare Small Hole EDM with the adjacent EDM or conventional process.
Practical Takeaway
Cemented Carbide is compatible with Small Hole EDM when the feature matches the process access. The supplied condition determines support, finishing, surface control, and inspection.
