Process & Material
Cemented Carbide Sinker EDM Feasibility Review
Cemented Carbide can be machined with Sinker EDM when the geometry matches blind cavities, ribs, shaped pockets, mold details, deep forms, and internal geometry that a traveling wire cannot reach. Cemented Carbide is hard-metal composite with binder-dependent EDM response; the supplied condition affects support, discharge energy, finishing, and inspection.
Quick Answer
Sinker EDM is suitable for Cemented Carbide when the feature is a blind cavity, rib, pocket, or internal form that a shaped electrode can reach from one side. The supplied condition must be stated before tolerance and surface requirements are confirmed.
Key Material Decisions
How This Material Behaves
Hard-metal composite with binder-dependent EDM response. In Sinker EDM, the supplied condition changes electrode wear, cavity-floor consistency, corner growth, and the finishing strategy—especially on deep ribs and textured surfaces.
Choosing the Right Condition
Choose Sinker EDM for blind cavities, ribs, shaped pockets, mold details, deep forms, and internal geometry that a traveling wire cannot reach. State the exact Cemented Carbide condition, then set tolerance, finish, support, and inspection from the controlled feature rather than the whole part.
Risks to Manage
For Sinker EDM, aggressive energy can weaken edges or expose binder-rich zones. Where debris collects at a cavity root or sharp internal corner, debris retention and electrode wear can change the root, wall and floor at different rates, with the highest consequence at grain boundaries, brittle rims and subsurface damage zones. The Cemented Carbide feature may therefore show floor or corner cracking, grain pullout or phase-selective erosion in the cavity. For Cemented Carbide, use conservative discharge energy, strong local support and microscopic inspection of edges and subsurface damage. Qualify the finish electrode on the actual cavity depth and flushing path; document geometry, chipping, grain pullout and subsurface cracking for Cemented Carbide.
How Sinker EDM Works on Cemented Carbide

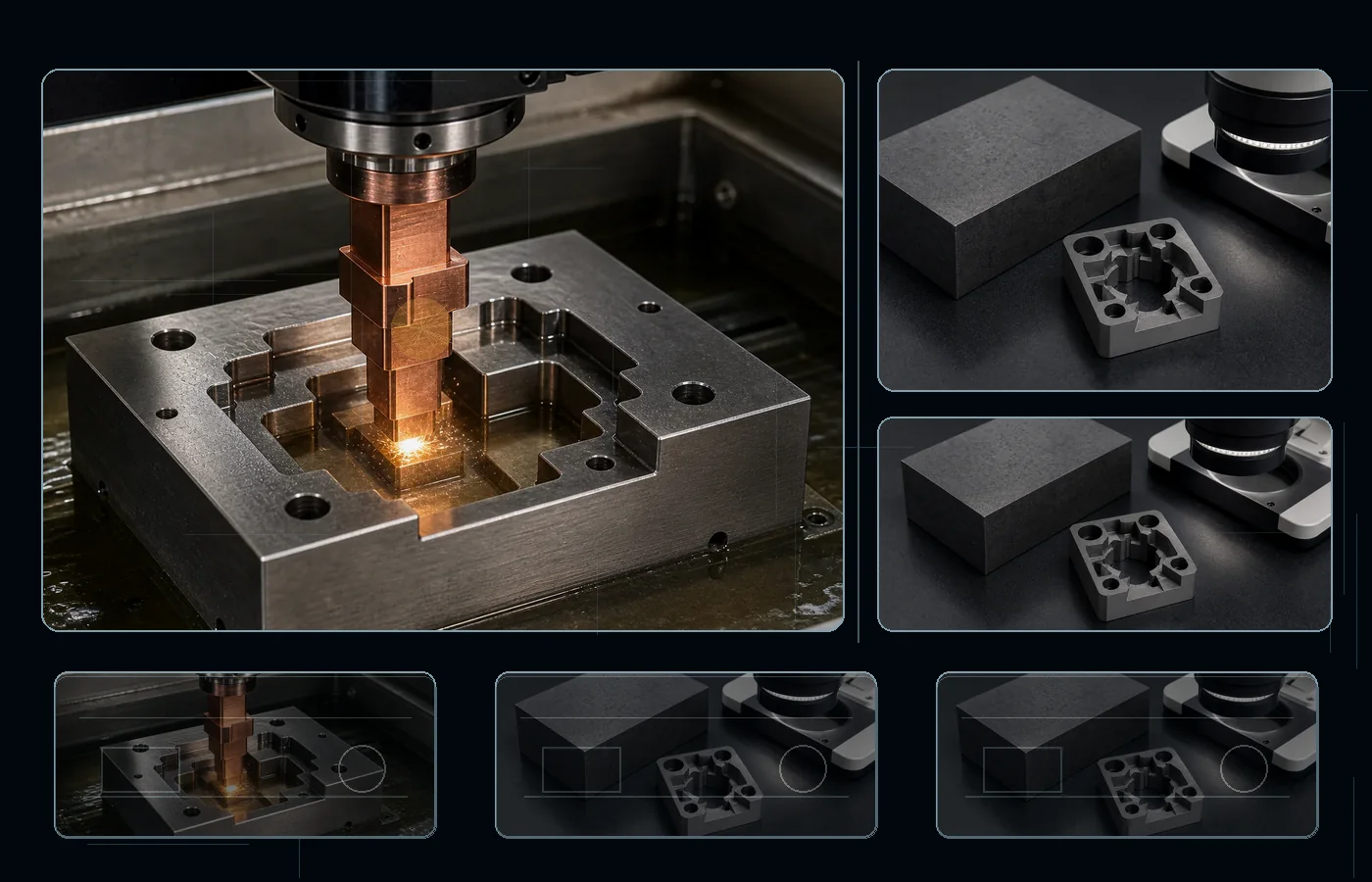

Sinker EDM reproduces a shaped electrode as a blind cavity in Cemented Carbide. Electrode material, wear, orbit, pulse energy and debris evacuation control wall size, floor depth, corner definition and surface condition. Where final size or texture is critical, roughing and finishing electrodes should be planned as separate operations.
Sinker EDM Capability Reference
| What you're asking | What you can expect |
|---|---|
| Feature types | blind cavities, ribs, shaped pockets, mold details, deep forms, and internal geometry that a traveling wire cannot reach |
| Tolerance | ±0.008–0.030 mm |
| Surface finish | Ra 0.2–6.3 μm |
| Electrode choice | Graphite or copper selected from cavity, finish, and wear needs |
| Primary cavity limit | Depth, rib width, access, and debris evacuation |
| Main limitation | Electrode access and debris evacuation limit deep, narrow blind geometry. |
Material Condition Reference
| Condition | What to expect | Watch out for | Surface notes |
|---|---|---|---|
| as-sintered | Use low-force fixturing and conservative discharge energy. | Brittle edges can chip or binder-rich zones can erode unevenly. | Inspect edge breakout and surface integrity rather than Ra alone. |
| ground finish | Use stable support and reduced energy on finished stock. | Grinding stress or porosity can cause local cracking. | Apply selective polishing or lapping where practical. |
| polished or coated condition | Protect the final surface condition. | Coated, polished, or dense finished surfaces can be damaged by aggressive roughing. | Keep finishing local to the controlled feature. |
How This Material Behaves
Cemented carbide is a hard carbide skeleton held together by a metallic binder. In EDM, this means the binder can erode faster than the carbide grains, while aggressive energy can leave grain pullout, microcracks, or a weakened edge. Use low-energy finishing, strong flushing without impact on fragile corners, and verify critical surfaces by microscopy rather than roughness alone. For Sinker EDM, aggressive energy can weaken edges or expose binder-rich zones. At cavity floors and corners, repeated thermal cycling can create local cracking, grain pullout or phase-selective erosion.
Surface Integrity and Post-Process
For Sinker EDM on Cemented Carbide, use conservative energy, strong support and inspection focused on edge chipping and subsurface damage. Use roughing and finishing electrodes separately where cavity size or texture is controlled. Apply polishing, lapping or recast removal only to named functional faces, and inspect wall, floor and corner condition after the final surface operation.
Cemented Carbide Sinker EDM Checkpoints
- Confirm that the feature matches blind cavities, ribs, shaped pockets, mold details, deep forms, and internal geometry that a traveling wire cannot reach.
- State the supplied condition: as-sintered, ground finish, and polished or coated condition.
- Mark the controlled dimensions, functional surfaces, datum scheme, and inspection method.
Typical Parts and Features
- wear inserts
- high-temperature contacts
- hard-metal nozzles
- mold cavities
- blind pockets
- deep ribs
Limits and Better Alternatives
Main Limit
Electrode access and debris evacuation limit deep, narrow blind geometry. On Cemented Carbide, aggressive energy can weaken edges or expose binder-rich zones; the supplied condition still controls support, finishing, and surface-integrity review.
Consider Another Route When
Use Wire EDM for through profiles, CNC machining for open cavities with tool access, or grinding for simple flat precision surfaces.
Practical Next Step
Send the Cemented Carbide drawing with condition, controlled geometry, tolerance, functional surface callouts, quantity, and inspection requirements. If the route is unclear, we will compare Sinker EDM with the adjacent EDM or conventional process.
Practical Takeaway
Cemented Carbide is compatible with Sinker EDM when the feature matches the process access. The supplied condition determines support, finishing, surface control, and inspection.
Additional Project Information
Include application, destination and end-use notes together with the material, quantity and drawing requirements.
Project Details for Technical Review
Include application and end-use notes when they affect material, inspection, documentation, or export review.
- Process: Sinker EDM
- Material: Cemented Carbide
- Drawing or part sketch
- Material grade
- Thickness / part size
- Quantity
- Tolerance and critical dimensions
- Surface finish or inspection requirement
STEP/STP, DXF, DWG, PDF, IGS/IGES or ZIP.
Confidential drawing review. NDA support available on request.
