A2 Tool Steel Sinker EDM Feasibility Review
A2 Tool Steel can be machined with Sinker EDM when the geometry matches blind cavities, ribs, shaped pockets, mold details, deep forms, and internal geometry that a traveling wire cannot reach. A2 Tool Steel is an air-hardening cold-work tool steel with comparatively stable heat-treatment response; the supplied condition affects support, discharge energy, finishing, and inspection.
Quick Answer
Sinker EDM is suitable for A2 Tool Steel when the feature is a blind cavity, rib, pocket, or internal form that a shaped electrode can reach from one side. The supplied condition must be stated before tolerance and surface requirements are confirmed.
Key Material Decisions
How This Material Behaves
An air-hardening cold-work tool steel with comparatively stable heat-treatment response. In Sinker EDM, the supplied condition changes electrode wear, cavity-floor consistency, corner growth, and the finishing strategy—especially on deep ribs and textured surfaces.
Choosing the Right Condition
Choose Sinker EDM for blind cavities, ribs, shaped pockets, mold details, deep forms, and internal geometry that a traveling wire cannot reach. State the exact A2 Tool Steel condition, then set tolerance, finish, support, and inspection from the controlled feature rather than the whole part.
Risks to Manage
For Sinker EDM, hardened cutting edges still need stress-aware sequencing and selective recast control. Where debris collects at a cavity root or sharp internal corner, the cavity can release local stress while the electrode progressively loses its intended geometry, with the highest consequence at sharp edges, carbide-rich zones and thermally affected surfaces. The A2 Tool Steel feature may therefore show a cavity that measures close to size but contains white layer, pullout or cracking at the floor and corners. For A2 Tool Steel, separate roughing from conservative finishing, support fragile sections, and verify edge integrity beyond roughness alone. Verify the floor, sidewalls and corner radii after the final finishing burn; document geometry, chipping, pullout, white layer and microcracks for A2 Tool Steel.
How Sinker EDM Works on A2 Tool Steel

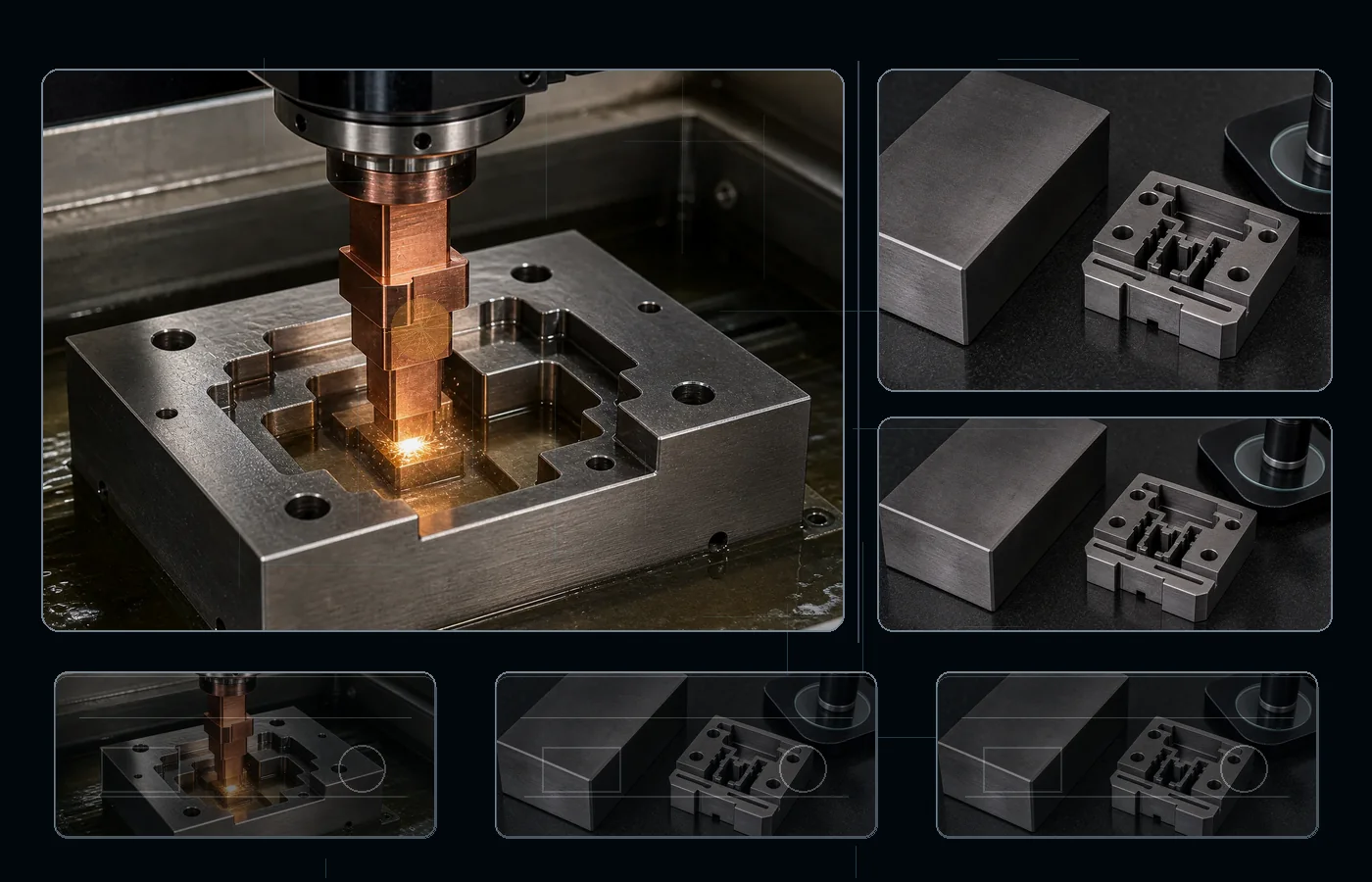

Sinker EDM reproduces a shaped electrode as a blind cavity in A2 Tool Steel. Electrode material, wear, orbit, pulse energy and debris evacuation control wall size, floor depth, corner definition and surface condition. Where final size or texture is critical, roughing and finishing electrodes should be planned as separate operations.
Sinker EDM Capability Reference
| What you're asking | What you can expect |
|---|---|
| Feature types | blind cavities, ribs, shaped pockets, mold details, deep forms, and internal geometry that a traveling wire cannot reach |
| Tolerance | ±0.008–0.030 mm |
| Surface finish | Ra 0.2–6.3 μm |
| Electrode choice | Graphite or copper selected from cavity, finish, and wear needs |
| Primary cavity limit | Depth, rib width, access, and debris evacuation |
| Main limitation | Electrode access and debris evacuation limit deep, narrow blind geometry. |
Material Condition Reference
| Condition | What to expect | Watch out for | Surface notes |
|---|---|---|---|
| annealed machining condition | Machine economically before final hardening when the route allows. | Soft stock can move after later heat treatment. | Leave allowance for the final hardened geometry. |
| prehardened or stress-relieved | Use the prehardened or stress-relieved state for stable tooling work. | Residual stress can move deep ribs or thin inserts. | Use datum-controlled finishing on working edges. |
| hardened and tempered | Use low-energy finishing on hardened and tempered tooling. | White layer and edge microcracks can shorten tool life. | Use trim passes, polishing, or recast limits on working edges. |
How This Material Behaves
A2 is an air-hardening tool steel valued for dimensional stability and wear resistance. In EDM, this means hardened sections usually cut predictably, but carbide-rich edges can retain brittle recast and residual heat-treatment stress can move thin features. EDM after final heat treatment, balance rough cuts, and use finishing passes or recast removal on wear and fatigue surfaces. For Sinker EDM, hardened cutting edges still need stress-aware sequencing and selective recast control. At cavity floors and sharp corners, repeated local heating can leave white layer, carbide pullout or microcracks that Ra alone will not reveal.
Surface Integrity and Post-Process
For Sinker EDM on A2 Tool Steel, use rough and finish settings separately, then specify polishing or recast removal only on critical molding and wear faces. Use roughing and finishing electrodes separately where cavity size or texture is controlled. Apply polishing, lapping or recast removal only to named functional faces, and inspect wall, floor and corner condition after the final surface operation.
A2 Tool Steel Sinker EDM Checkpoints
- Confirm that the feature matches blind cavities, ribs, shaped pockets, mold details, deep forms, and internal geometry that a traveling wire cannot reach.
- State the supplied condition: annealed machining condition, prehardened or stress-relieved, and hardened and tempered.
- Mark the controlled dimensions, functional surfaces, datum scheme, and inspection method.
Typical Parts and Features
- mold inserts
- punches and dies
- wear blocks
- mold cavities
- blind pockets
- deep ribs
Limits and Better Alternatives
Main Limit
Electrode access and debris evacuation limit deep, narrow blind geometry. On A2 Tool Steel, hardened cutting edges still need stress-aware sequencing and selective recast control; the supplied condition still controls support, finishing, and surface-integrity review.
Consider Another Route When
Use Wire EDM for through profiles, CNC machining for open cavities with tool access, or grinding for simple flat precision surfaces.
Practical Next Step
Send the A2 Tool Steel drawing with condition, controlled geometry, tolerance, functional surface callouts, quantity, and inspection requirements. If the route is unclear, we will compare Sinker EDM with the adjacent EDM or conventional process.
Practical Takeaway
A2 Tool Steel is compatible with Sinker EDM when the feature matches the process access. The supplied condition determines support, finishing, surface control, and inspection.
Request a Machining Feasibility Review
Send material grade, drawing files, tolerance and quantity. We confirm process fit before quoting.
- Process: Sinker EDM
- Material: A2 Tool Steel
- Drawing or part sketch
- Material grade
- Thickness / part size
- Quantity
- Tolerance and critical dimensions
- Surface finish or inspection requirement
STEP/STP, DXF, DWG, PDF, IGS/IGES or ZIP.
Confidential drawing review. NDA support available on request.
Frequently Asked Questions
Can A2 Tool Steel be machined with Sinker EDM?
Yes, when the feature is a blind cavity, rib, pocket, or internal form that a shaped electrode can reach from one side. A2 Tool Steel is electrically conductive and the final route follows the feature geometry and supplied condition.
What controls Sinker EDM on A2 Tool Steel?
The main process controls are electrode material, wear compensation, cavity depth, rib width, orbit strategy, debris evacuation, and rough-versus-finish electrodes. The A2 Tool Steel condition adds dimensional-stability and surface-integrity requirements.
What is the main risk?
For Sinker EDM, hardened cutting edges still need stress-aware sequencing and selective recast control. Where debris collects at a cavity root or sharp internal corner, the cavity can release local stress while the electrode progressively loses its intended geometry, with the highest consequence at sharp edges, carbide-rich zones and thermally affected surfaces. The A2 Tool Steel feature may therefore show a cavity that measures close to size but contains white layer, pullout or cracking at the floor and corners. For A2 Tool Steel, separate roughing from conservative finishing, support fragile sections, and verify edge integrity beyond roughness alone. Verify the floor, sidewalls and corner radii after the final finishing burn; document geometry, chipping, pullout, white layer and microcracks for A2 Tool Steel.
What should I send for review?
Send the drawing, exact A2 Tool Steel condition, controlled geometry, tolerance, functional surface requirements, quantity, and inspection expectations. If any item is undecided, send what you have and we will help complete the review.
