904L Stainless Steel Small Hole EDM Drilling Feasibility Review
904L Stainless Steel can be machined with Small Hole EDM when the geometry matches small through holes, deep holes, angled holes, cooling holes, vent holes, and start holes in hard or heat-resistant alloys. 904L Stainless Steel is a high-alloy austenitic stainless grade with elevated nickel, molybdenum and copper for severe corrosion service; the supplied condition affects support, discharge energy, finishing, and inspection.
Quick Answer
Small Hole EDM is suitable for 904L Stainless Steel when the feature is a small, deep, angled, cooling, vent, or start hole in conductive material. The supplied condition must be stated before tolerance and surface requirements are confirmed.
Key Material Decisions
How This Material Behaves
A high-alloy austenitic stainless grade with elevated nickel, molybdenum and copper for severe corrosion service. In Small Hole EDM, the supplied condition changes bore stability, breakthrough quality, wall finish, and the inspection plan for straightness and position.
Choosing the Right Condition
Choose Small Hole EDM for small through holes, deep holes, angled holes, cooling holes, vent holes, and start holes in hard or heat-resistant alloys. State the exact 904L Stainless Steel condition, then set tolerance, finish, support, and inspection from the controlled feature rather than the whole part.
Risks to Manage
For Small Hole EDM, corrosion-critical faces require contamination control and a defined cleaning or passivation route. Tubular-electrode wear and pressure loss can reduce exit diameter and shift the path between the stable entry region and the far-side exit, especially around wetted, hygienic and contamination-sensitive surfaces. The practical failure in 904L Stainless Steel is an acceptable entry diameter with an unclean or recast-affected exit and wall. For 904L Stainless Steel, use clean process conditions, low-energy finishing and a documented cleaning or passivation route for functional surfaces. Inspect entry, exit, taper, position and wall condition independently; document geometry, residue, recast and final clean or passivated condition for 904L Stainless Steel.
How Small Hole EDM Works on 904L Stainless Steel

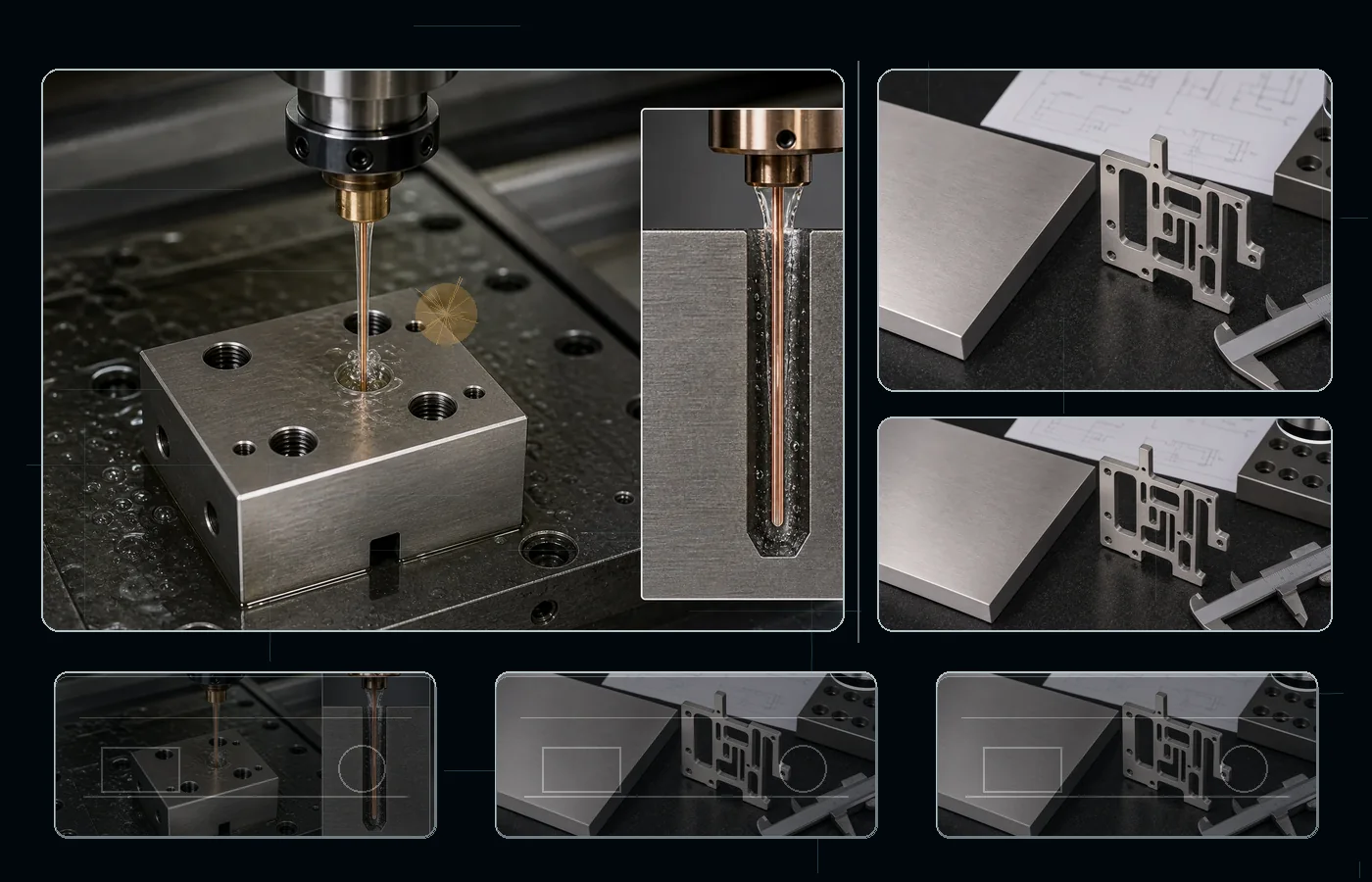

Small Hole EDM advances a rotating tubular electrode through 904L Stainless Steel while dielectric exits at the cutting tip. Electrode wear, runout, internal flushing, true hole depth and breakthrough support control entry-to-exit diameter, taper, straightness and wall condition. Hole diameter, depth and depth-to-diameter ratio—not stock thickness alone—define the process limit.
Small Hole EDM Capability Reference
| What you're asking | What you can expect |
|---|---|
| Feature types | small through holes, deep holes, angled holes, cooling holes, vent holes, and start holes in hard or heat-resistant alloys |
| Tolerance | ±0.010–0.050 mm |
| Surface finish | Hole-wall finish is feature-dependent |
| Typical diameter | About 0.3–3.0 mm for ordinary planning |
| Depth driver | Depth-to-diameter ratio, straightness, and breakthrough |
| Main limitation | Very small diameter combined with extreme depth may require specialized equipment, staged electrodes, and dedicated metrology. |
Material Condition Reference
| Condition | What to expect | Watch out for | Surface notes |
|---|---|---|---|
| solution annealed | Use stable support and identify the final heat-treatment route. | Softer condition can mark or move under clamping. | Separate cosmetic roughness from corrosion and passivation requirements. |
| cold-worked | Control cold-work stress and finish energy. | Cold-worked or welded zones can distort unevenly. | Inspect corrosion, seal, and fatigue faces separately. |
| welded and stress-relieved | Use lower-energy finishing on hardened or aged faces. | A brittle recast layer or local heat tint can reduce corrosion and fatigue performance. | Use selective recast removal and passivation where required. |
How This Material Behaves
904L is a highly alloyed austenitic stainless steel selected for severe corrosion service. In EDM, this means low thermal conductivity concentrates heat near the surface, while contamination or incomplete cleaning can undermine the corrosion performance the grade was chosen for. Use clean low-energy finishing, identify wetted faces, and specify passivation or recast removal independently from dimensional inspection. For Small Hole EDM, Corrosion-critical faces require contamination control and a defined cleaning or passivation route. At small-hole scale, entry, exit and wall recast must be checked separately from diameter, especially on wetted or fatigue-loaded parts.
Surface Integrity and Post-Process
For Small Hole EDM on 904L Stainless Steel, sealing, fatigue and corrosion surfaces should separate roughness from recast-layer or passivation requirements. Reduce discharge energy near final size and breakthrough, then evaluate entry, exit, taper and wall condition separately. For fatigue-, flow- or seal-critical holes, specify recast acceptance or post-process cleaning and finishing instead of relying on diameter alone.
904L Stainless Steel Small Hole EDM Checkpoints
- Confirm that the feature matches small through holes, deep holes, angled holes, cooling holes, vent holes, and start holes in hard or heat-resistant alloys.
- State the supplied condition: solution annealed, cold-worked, and welded and stress-relieved.
- Mark the controlled dimensions, functional surfaces, datum scheme, and inspection method.
Typical Parts and Features
- corrosion-resistant inserts
- medical and laboratory components
- connector features
- turbine-blade cooling holes
- mold and die vent holes
- injector and nozzle holes
Limits and Better Alternatives
Main Limit
Hole depth, diameter, aspect ratio, flushing, and breakthrough quality—not stock thickness alone—set the practical limit. On 904L Stainless Steel, corrosion-critical surfaces require contamination control and a post-process plan rather than a generic EDM finish; the supplied condition still controls support, finishing, and surface-integrity review.
Consider Another Route When
Use mechanical drilling when the tool can reach economically, laser drilling for suitable thin geometry, or Micro EDM for smaller precision holes.
Practical Next Step
Send the 904L Stainless Steel drawing with condition, controlled geometry, tolerance, functional surface callouts, quantity, and inspection requirements. If the route is unclear, we will compare Small Hole EDM with the adjacent EDM or conventional process.
Practical Takeaway
904L Stainless Steel is compatible with Small Hole EDM when the feature matches the process access. The supplied condition determines support, finishing, surface control, and inspection.
Request a Machining Feasibility Review
Send material grade, drawing files, tolerance and quantity. We confirm process fit before quoting.
- Process: Small Hole EDM
- Material: 904L Stainless Steel
- Drawing or part sketch
- Material grade
- Thickness / part size
- Quantity
- Tolerance and critical dimensions
- Surface finish or inspection requirement
STEP/STP, DXF, DWG, PDF, IGS/IGES or ZIP.
Confidential drawing review. NDA support available on request.
Frequently Asked Questions
Can 904L Stainless Steel be machined with Small Hole EDM?
Yes, when the feature is a small, deep, angled, cooling, vent, or start hole in conductive material. 904L Stainless Steel is electrically conductive and the final route follows the feature geometry and supplied condition.
What controls Small Hole EDM on 904L Stainless Steel?
The main process controls are electrode diameter, true hole depth, depth-to-diameter ratio, tubular-electrode wear, flushing pressure, breakthrough quality, and hole-wall inspection. The 904L Stainless Steel condition adds dimensional-stability and surface-integrity requirements.
What is the main risk?
For Small Hole EDM, corrosion-critical faces require contamination control and a defined cleaning or passivation route. Tubular-electrode wear and pressure loss can reduce exit diameter and shift the path between the stable entry region and the far-side exit, especially around wetted, hygienic and contamination-sensitive surfaces. The practical failure in 904L Stainless Steel is an acceptable entry diameter with an unclean or recast-affected exit and wall. For 904L Stainless Steel, use clean process conditions, low-energy finishing and a documented cleaning or passivation route for functional surfaces. Inspect entry, exit, taper, position and wall condition independently; document geometry, residue, recast and final clean or passivated condition for 904L Stainless Steel.
What should I send for review?
Send the drawing, exact 904L Stainless Steel condition, controlled geometry, tolerance, functional surface requirements, quantity, and inspection expectations. If any item is undecided, send what you have and we will help complete the review.
