Process & Material
904L Stainless Steel Micro EDM Feasibility Review
904L Stainless Steel can be machined with Micro EDM when the geometry matches micro holes, micro slots, miniature cavities, fine pins, and sub-millimeter precision details. 904L Stainless Steel is a high-alloy austenitic stainless grade with elevated nickel, molybdenum and copper for severe corrosion service; the supplied condition affects support, discharge energy, finishing, and inspection.
Quick Answer
Micro EDM is suitable for 904L Stainless Steel when the feature is a micro hole, micro slot, miniature cavity, fine pin, or other sub-millimeter detail. The supplied condition must be stated before tolerance and surface requirements are confirmed.
Key Material Decisions
How This Material Behaves
A high-alloy austenitic stainless grade with elevated nickel, molybdenum and copper for severe corrosion service. In Micro EDM, the supplied condition directly changes discharge stability, electrode wear, edge quality, and the finishing plan—especially at micro scale.
Choosing the Right Condition
Choose Micro EDM for micro holes, micro slots, miniature cavities, fine pins, and sub-millimeter precision details. State the exact 904L Stainless Steel condition, then set tolerance, finish, support, and inspection from the controlled feature rather than the whole part.
Risks to Manage
For Micro EDM, corrosion-critical faces require contamination control and a defined cleaning or passivation route. When the electrode, spark gap and material structure approach the feature scale, electrode wear, debris and spark-gap variation can move size and pitch together; the interaction is most important at wetted, hygienic and contamination-sensitive surfaces. For 904L Stainless Steel, this can produce feature error or contamination that cannot be separated from the functional clean-surface requirement. For 904L Stainless Steel, use clean process conditions, low-energy finishing and a documented cleaning or passivation route for functional surfaces. Verify size, pitch, edge continuity and surface condition under the same inspection plan; document geometry, residue, recast and final clean or passivated condition for 904L Stainless Steel.
How Micro EDM Works on 904L Stainless Steel

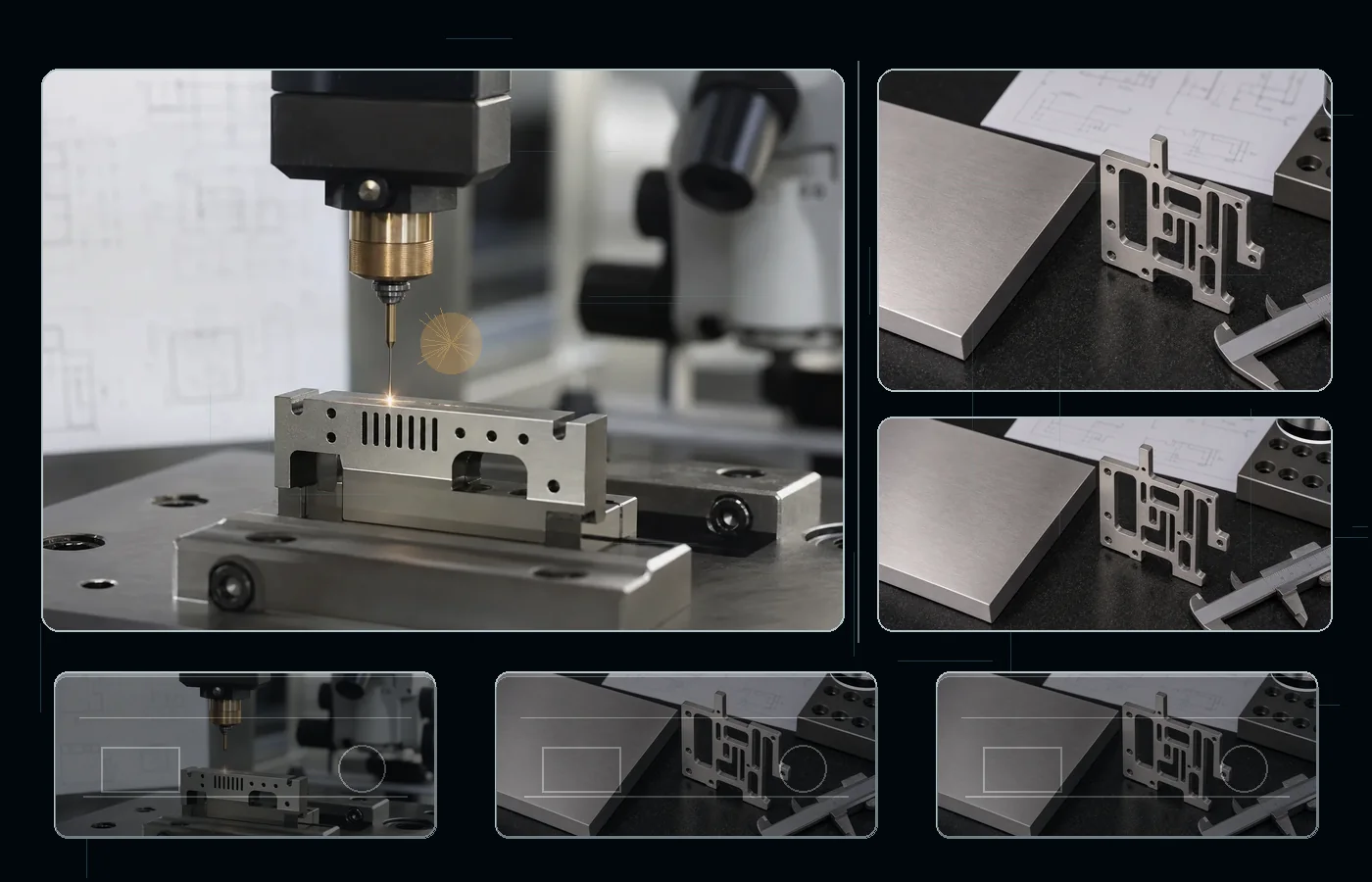

Micro EDM uses a very small electrode and low discharge energy to machine miniature features in 904L Stainless Steel. Electrode wear, spark-gap stability, micro-flushing, temperature control and measurement resolution consume a significant share of the available tolerance. The local feature size and aspect ratio—not the overall workpiece size—must define the route.
Micro EDM Capability Reference
| What you're asking | What you can expect |
|---|---|
| Feature types | micro holes, micro slots, miniature cavities, fine pins, and sub-millimeter precision details |
| Tolerance | ±0.002–0.010 mm |
| Surface finish | Ra 0.1–1.6 μm |
| Feature scale | Sub-millimeter holes, slots, and cavities |
| Primary micro limit | Electrode wear and measurement resolution |
| Main limitation | Loose-tolerance or easily accessible features are rarely economical with Micro EDM. |
Material Condition Reference
| Condition | What to expect | Watch out for | Surface notes |
|---|---|---|---|
| solution annealed | Use stable support and identify the final heat-treatment route. | Softer condition can mark or move under clamping. | Separate cosmetic roughness from corrosion and passivation requirements. |
| cold-worked | Control cold-work stress and finish energy. | Cold-worked or welded zones can distort unevenly. | Inspect corrosion, seal, and fatigue faces separately. |
| welded and stress-relieved | Use lower-energy finishing on hardened or aged faces. | A brittle recast layer or local heat tint can reduce corrosion and fatigue performance. | Use selective recast removal and passivation where required. |
How This Material Behaves
904L is a highly alloyed austenitic stainless steel selected for severe corrosion service. In EDM, this means low thermal conductivity concentrates heat near the surface, while contamination or incomplete cleaning can undermine the corrosion performance the grade was chosen for. Use clean low-energy finishing, identify wetted faces, and specify passivation or recast removal independently from dimensional inspection. For Micro EDM, Corrosion-critical faces require contamination control and a defined cleaning or passivation route. On miniature features, temper, recast and contamination can occupy the same scale as the remaining tolerance.
Surface Integrity and Post-Process
For Micro EDM on 904L Stainless Steel, sealing, fatigue and corrosion surfaces should separate roughness from recast-layer or passivation requirements. Use low-energy finishing and account for electrode replacement or calibration before final sizing. Specify edge, recast and post-process requirements only on functional microfeatures, and use metrology that can distinguish true size from edge rounding and surface residue.
904L Stainless Steel Micro EDM Checkpoints
- Confirm that the feature matches micro holes, micro slots, miniature cavities, fine pins, and sub-millimeter precision details.
- State the supplied condition: solution annealed, cold-worked, and welded and stress-relieved.
- Mark the controlled dimensions, functional surfaces, datum scheme, and inspection method.
Typical Parts and Features
- corrosion-resistant inserts
- medical and laboratory components
- connector features
- micro holes
- micro slots
- miniature cavities
Limits and Better Alternatives
Main Limit
Loose-tolerance or easily accessible features are rarely economical with Micro EDM. On 904L Stainless Steel, corrosion-critical surfaces require contamination control and a post-process plan rather than a generic EDM finish; the supplied condition still controls support, finishing, and surface-integrity review.
Consider Another Route When
Use conventional EDM for larger features, precision laser processing for suitable thin geometry, or mechanical micro-drilling where a tool can reach.
Practical Next Step
Send the 904L Stainless Steel drawing with condition, controlled geometry, tolerance, functional surface callouts, quantity, and inspection requirements. If the route is unclear, we will compare Micro EDM with the adjacent EDM or conventional process.
Practical Takeaway
904L Stainless Steel is compatible with Micro EDM when the feature matches the process access. The supplied condition determines support, finishing, surface control, and inspection.
Request a Machining Feasibility Review
Send material grade, drawing files, tolerance and quantity. We confirm process fit before quoting.
- Process: Micro EDM
- Material: 904L Stainless Steel
- Drawing or part sketch
- Material grade
- Thickness / part size
- Quantity
- Tolerance and critical dimensions
- Surface finish or inspection requirement
STEP/STP, DXF, DWG, PDF, IGS/IGES or ZIP.
Confidential drawing review. NDA support available on request.
Frequently Asked Questions
Can 904L Stainless Steel be machined with Micro EDM?
Yes, when the feature is a micro hole, micro slot, miniature cavity, fine pin, or other sub-millimeter detail. 904L Stainless Steel is electrically conductive and the final route follows the feature geometry and supplied condition.
What controls Micro EDM on 904L Stainless Steel?
The main process controls are electrode wear, feature-to-electrode ratio, micro-flushing, aspect ratio, edge radius, thermal stability, and measurement resolution. The 904L Stainless Steel condition adds dimensional-stability and surface-integrity requirements.
What is the main risk?
For Micro EDM, corrosion-critical faces require contamination control and a defined cleaning or passivation route. When the electrode, spark gap and material structure approach the feature scale, electrode wear, debris and spark-gap variation can move size and pitch together; the interaction is most important at wetted, hygienic and contamination-sensitive surfaces. For 904L Stainless Steel, this can produce feature error or contamination that cannot be separated from the functional clean-surface requirement. For 904L Stainless Steel, use clean process conditions, low-energy finishing and a documented cleaning or passivation route for functional surfaces. Verify size, pitch, edge continuity and surface condition under the same inspection plan; document geometry, residue, recast and final clean or passivated condition for 904L Stainless Steel.
What should I send for review?
Send the drawing, exact 904L Stainless Steel condition, controlled geometry, tolerance, functional surface requirements, quantity, and inspection expectations. If any item is undecided, send what you have and we will help complete the review.
