7075 Aluminum Wire EDM Feasibility Review
7075 Aluminum can be machined with Wire EDM when the geometry matches through profiles, precision slots, punches, inserts, cutouts, narrow webs, and tapered walls. 7075 Aluminum is high-strength aluminum whose hardened temper can retain machining stress; the supplied condition affects support, discharge energy, finishing, and inspection.
Quick Answer
Wire EDM is suitable for 7075 Aluminum when the wire can pass completely through the workpiece from an edge or a start hole. The supplied condition must be stated before tolerance and surface requirements are confirmed.
Key Material Decisions
How This Material Behaves
High-strength aluminum whose hardened temper can retain machining stress. In Wire EDM, the supplied condition changes stress release during the through cut, edge response to trim passes, and the final corrosion or surface-protection route.
Choosing the Right Condition
Choose Wire EDM for through profiles, precision slots, punches, inserts, cutouts, narrow webs, and tapered walls. State the exact 7075 Aluminum condition, then set tolerance, finish, support, and inspection from the controlled feature rather than the whole part.
Risks to Manage
For Wire EDM, thin or asymmetric features can move after material removal. As the contour opens and the cut section loses restraint, guide alignment, flushing and residual restraint can produce a top-to-bottom mismatch; the interaction is most important at soft edges, unsupported webs and handling-sensitive faces. For 7075 Aluminum, this can produce bow, offset or handling marks on the released soft-edged profile. For 7075 Aluminum, support broad datums, limit handling pressure, and reserve the final low-energy pass for the functional geometry. Inspect both cut edges and confirm the final profile after support tabs are removed; document profile or cavity size, handling marks and soft-edge deformation for 7075 Aluminum.
How Wire EDM Works on 7075 Aluminum

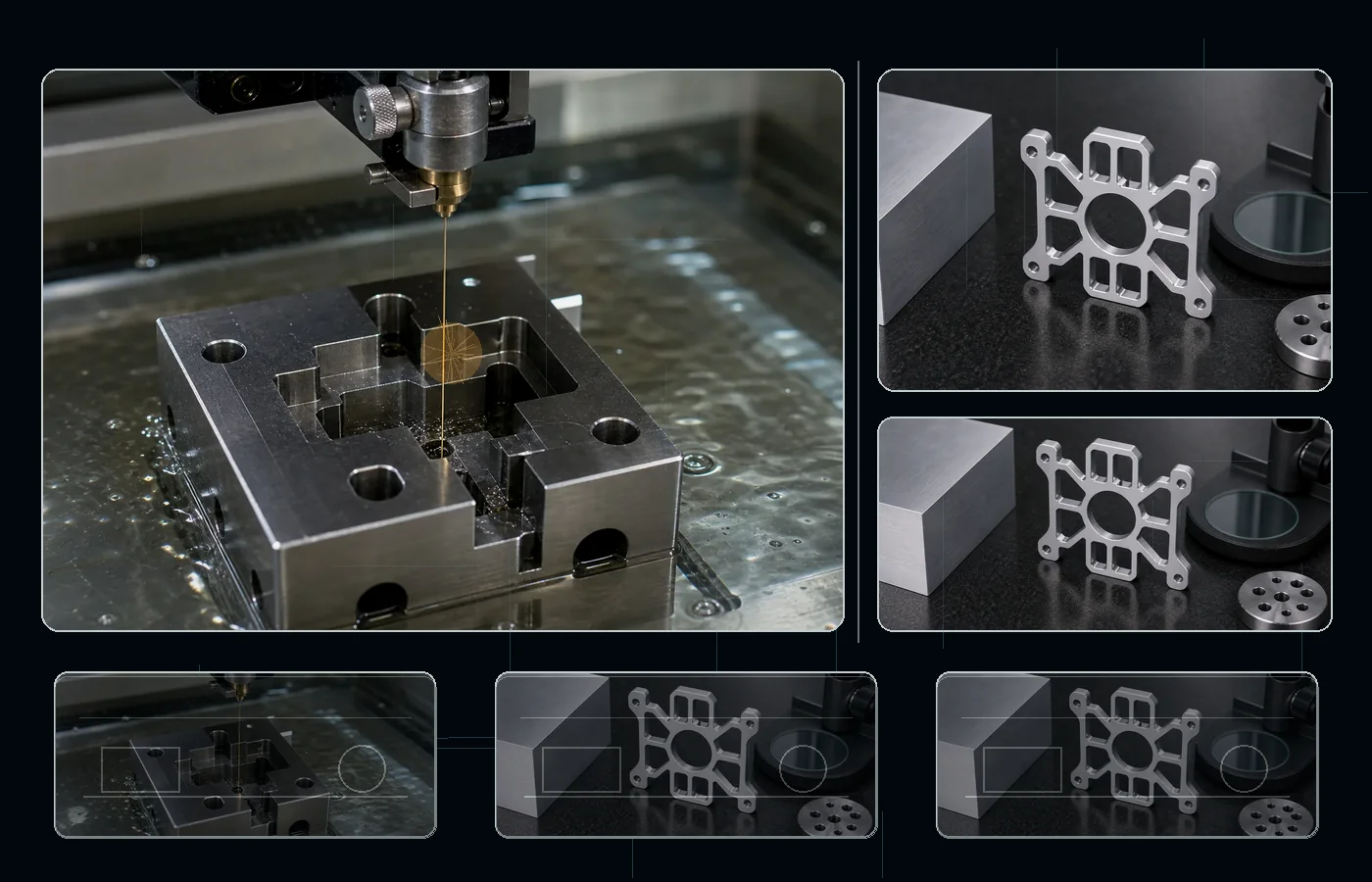

Wire EDM removes 7075 Aluminum along a continuous through-cut with a moving wire electrode. Wire tension, guide alignment, flushing and trim-pass offset control kerf, taper, verticality and internal corner radius as the profile opens. The route requires a complete wire path from an edge or start hole and does not produce blind cavities.
Wire EDM Capability Reference
| What you're asking | What you can expect |
|---|---|
| Feature types | through profiles, precision slots, punches, inserts, cutouts, narrow webs, and tapered walls |
| Tolerance | ±0.005–0.025 mm |
| Surface finish | Ra 0.2–3.2 μm |
| Wire diameter | 0.10–0.30 mm planning range |
| Minimum internal corner | Approximately wire radius plus spark gap |
| Main limitation | Blind cavities and closed pockets are not wire-cut features. |
Material Condition Reference
| Condition | What to expect | Watch out for | Surface notes |
|---|---|---|---|
| O annealed | Use light clamping and stable support. | Soft aluminum can mark, bow, or erode at fragile edges. | Protect fresh cut faces and avoid unnecessary fine passes. |
| T6 temper | Plan around cold-work or temper stress. | Thin sections can move as material is removed. | Use finish passes only on fit and sealing faces. |
| T73 overaged condition | Use conservative energy on heat-treated stock. | Local thermal effects can soften edges or expose corrosion-sensitive surfaces. | Inspect edge quality and apply corrosion protection where needed. |
How This Material Behaves
7075 aluminum combines high strength with pronounced temper and residual-stress sensitivity. In EDM, this means thin or heavily pocketed parts can distort as material is removed, and exposed cut faces need protection where stress-corrosion resistance is important. Start from stress-relieved stock when flatness is critical, balance the cut sequence, and keep the final finish and corrosion-protection steps tied to the functional surface. For Wire EDM, thin or asymmetric features can move after material removal. On thin profiles, residual stress and soft-edge handling can move or mark the contour after it opens.
Surface Integrity and Post-Process
For Wire EDM on 7075 Aluminum, use stable support and moderate discharge energy where edge definition or cosmetic texture matters. Separate the rough cut from skim cuts and apply the fine finish only to functional edges. Inspect roughness, edge rounding, recast and corrosion or fatigue requirements after the final pass; include polishing, coating or protection allowance wherever it changes final size.
7075 Aluminum Wire EDM Checkpoints
- Confirm that the feature matches through profiles, precision slots, punches, inserts, cutouts, narrow webs, and tapered walls.
- State the supplied condition: O annealed, T6 temper, and T73 overaged condition.
- Mark the controlled dimensions, functional surfaces, datum scheme, and inspection method.
Typical Parts and Features
- lightweight tooling
- fixture plates
- electrical housings
- punches and die inserts
- precision profile gauges
- gear and spline outlines
Limits and Better Alternatives
Main Limit
Blind cavities and closed pockets are not wire-cut features because the wire needs a continuous through path. On 7075 Aluminum, thin or asymmetric features can move after material removal; the supplied condition still controls support, finishing, and surface-integrity review.
Consider Another Route When
Use Sinker EDM for blind cavities, CNC machining for accessible open geometry, or laser cutting when thin-sheet speed matters more than EDM edge quality.
Practical Next Step
Send the 7075 Aluminum drawing with condition, controlled geometry, tolerance, functional surface callouts, quantity, and inspection requirements. If the route is unclear, we will compare Wire EDM with the adjacent EDM or conventional process.
Practical Takeaway
7075 Aluminum is compatible with Wire EDM when the feature matches the process access. The supplied condition determines support, finishing, surface control, and inspection.
Request a Machining Feasibility Review
Send material grade, drawing files, tolerance and quantity. We confirm process fit before quoting.
- Process: Wire EDM
- Material: 7075 Aluminum
- Drawing or part sketch
- Material grade
- Thickness / part size
- Quantity
- Tolerance and critical dimensions
- Surface finish or inspection requirement
STEP/STP, DXF, DWG, PDF, IGS/IGES or ZIP.
Confidential drawing review. NDA support available on request.
Frequently Asked Questions
Can 7075 Aluminum be machined with Wire EDM?
Yes, when the wire can pass completely through the workpiece from an edge or a start hole. 7075 Aluminum is electrically conductive and the final route follows the feature geometry and supplied condition.
What controls Wire EDM on 7075 Aluminum?
The main process controls are wire diameter, kerf compensation, flushing, wire tension, guide alignment, taper control, and trim-pass stability. The 7075 Aluminum condition adds dimensional-stability and surface-integrity requirements.
What is the main risk?
For Wire EDM, thin or asymmetric features can move after material removal. As the contour opens and the cut section loses restraint, guide alignment, flushing and residual restraint can produce a top-to-bottom mismatch; the interaction is most important at soft edges, unsupported webs and handling-sensitive faces. For 7075 Aluminum, this can produce bow, offset or handling marks on the released soft-edged profile. For 7075 Aluminum, support broad datums, limit handling pressure, and reserve the final low-energy pass for the functional geometry. Inspect both cut edges and confirm the final profile after support tabs are removed; document profile or cavity size, handling marks and soft-edge deformation for 7075 Aluminum.
What should I send for review?
Send the drawing, exact 7075 Aluminum condition, controlled geometry, tolerance, functional surface requirements, quantity, and inspection expectations. If any item is undecided, send what you have and we will help complete the review.
