7075 Aluminum Sinker EDM Feasibility Review
7075 Aluminum can be machined with Sinker EDM when the geometry matches blind cavities, ribs, shaped pockets, mold details, deep forms, and internal geometry that a traveling wire cannot reach. 7075 Aluminum is high-strength aluminum whose hardened temper can retain machining stress; the supplied condition affects support, discharge energy, finishing, and inspection.
Quick Answer
Sinker EDM is suitable for 7075 Aluminum when the feature is a blind cavity, rib, pocket, or internal form that a shaped electrode can reach from one side. The supplied condition must be stated before tolerance and surface requirements are confirmed.
Key Material Decisions
How This Material Behaves
High-strength aluminum whose hardened temper can retain machining stress. In Sinker EDM, the supplied condition changes electrode wear, cavity-floor consistency, corner growth, and the finishing strategy—especially on deep ribs and textured surfaces.
Choosing the Right Condition
Choose Sinker EDM for blind cavities, ribs, shaped pockets, mold details, deep forms, and internal geometry that a traveling wire cannot reach. State the exact 7075 Aluminum condition, then set tolerance, finish, support, and inspection from the controlled feature rather than the whole part.
Risks to Manage
For Sinker EDM, thin or asymmetric features can move after material removal. Orbit, local heating and electrode wear can shift wall size while dishing the floor during repeated burns on the same wall, floor and corner system; acceptance must focus on soft edges, unsupported webs and handling-sensitive faces. On 7075 Aluminum, the resulting defect can be rounded corners, floor-size error or fixture marking on a soft cavity. For 7075 Aluminum, support broad datums, limit handling pressure, and reserve the final low-energy pass for the functional geometry. Verify the floor, sidewalls and corner radii after the final finishing burn; document profile or cavity size, handling marks and soft-edge deformation for 7075 Aluminum.
How Sinker EDM Works on 7075 Aluminum

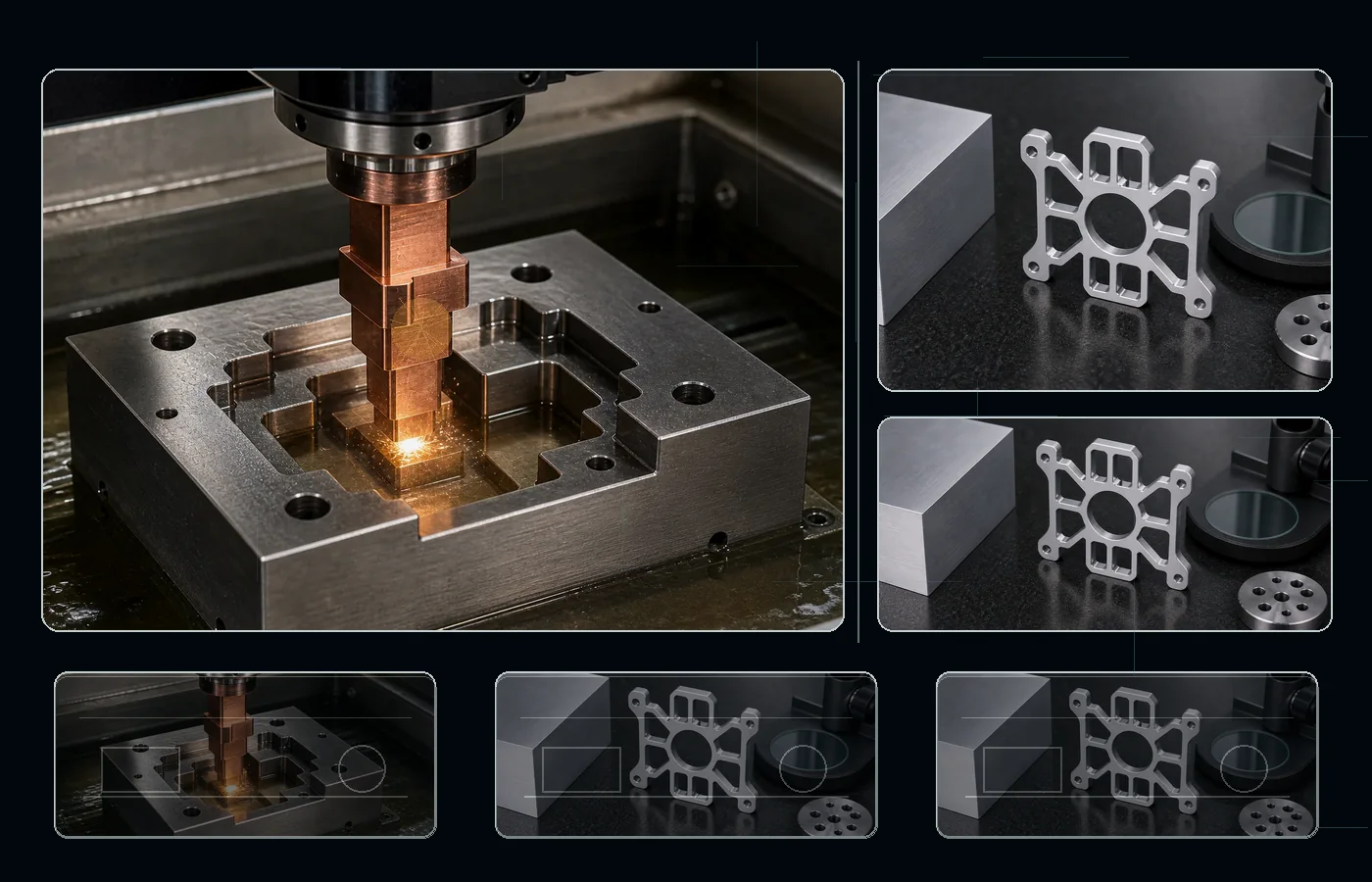

Sinker EDM reproduces a shaped electrode as a blind cavity in 7075 Aluminum. Electrode material, wear, orbit, pulse energy and debris evacuation control wall size, floor depth, corner definition and surface condition. Where final size or texture is critical, roughing and finishing electrodes should be planned as separate operations.
Sinker EDM Capability Reference
| What you're asking | What you can expect |
|---|---|
| Feature types | blind cavities, ribs, shaped pockets, mold details, deep forms, and internal geometry that a traveling wire cannot reach |
| Tolerance | ±0.008–0.030 mm |
| Surface finish | Ra 0.2–6.3 μm |
| Electrode choice | Graphite or copper selected from cavity, finish, and wear needs |
| Primary cavity limit | Depth, rib width, access, and debris evacuation |
| Main limitation | Electrode access and debris evacuation limit deep, narrow blind geometry. |
Material Condition Reference
| Condition | What to expect | Watch out for | Surface notes |
|---|---|---|---|
| O annealed | Use light clamping and stable support. | Soft aluminum can mark, bow, or erode at fragile edges. | Protect fresh cut faces and avoid unnecessary fine passes. |
| T6 temper | Plan around cold-work or temper stress. | Thin sections can move as material is removed. | Use finish passes only on fit and sealing faces. |
| T73 overaged condition | Use conservative energy on heat-treated stock. | Local thermal effects can soften edges or expose corrosion-sensitive surfaces. | Inspect edge quality and apply corrosion protection where needed. |
How This Material Behaves
7075 aluminum combines high strength with pronounced temper and residual-stress sensitivity. In EDM, this means thin or heavily pocketed parts can distort as material is removed, and exposed cut faces need protection where stress-corrosion resistance is important. Start from stress-relieved stock when flatness is critical, balance the cut sequence, and keep the final finish and corrosion-protection steps tied to the functional surface. For Sinker EDM, thin or asymmetric features can move after material removal. In cavities, soft walls and high thermal conductivity can round corners or vary floor texture unless orbit and finish energy are controlled.
Surface Integrity and Post-Process
For Sinker EDM on 7075 Aluminum, use stable support and moderate discharge energy where edge definition or cosmetic texture matters. Use roughing and finishing electrodes separately where cavity size or texture is controlled. Apply polishing, lapping or recast removal only to named functional faces, and inspect wall, floor and corner condition after the final surface operation.
7075 Aluminum Sinker EDM Checkpoints
- Confirm that the feature matches blind cavities, ribs, shaped pockets, mold details, deep forms, and internal geometry that a traveling wire cannot reach.
- State the supplied condition: O annealed, T6 temper, and T73 overaged condition.
- Mark the controlled dimensions, functional surfaces, datum scheme, and inspection method.
Typical Parts and Features
- lightweight tooling
- fixture plates
- electrical housings
- mold cavities
- blind pockets
- deep ribs
Limits and Better Alternatives
Main Limit
Electrode access and debris evacuation limit deep, narrow blind geometry. On 7075 Aluminum, thin or asymmetric features can move after material removal; the supplied condition still controls support, finishing, and surface-integrity review.
Consider Another Route When
Use Wire EDM for through profiles, CNC machining for open cavities with tool access, or grinding for simple flat precision surfaces.
Practical Next Step
Send the 7075 Aluminum drawing with condition, controlled geometry, tolerance, functional surface callouts, quantity, and inspection requirements. If the route is unclear, we will compare Sinker EDM with the adjacent EDM or conventional process.
Practical Takeaway
7075 Aluminum is compatible with Sinker EDM when the feature matches the process access. The supplied condition determines support, finishing, surface control, and inspection.
Request a Machining Feasibility Review
Send material grade, drawing files, tolerance and quantity. We confirm process fit before quoting.
- Process: Sinker EDM
- Material: 7075 Aluminum
- Drawing or part sketch
- Material grade
- Thickness / part size
- Quantity
- Tolerance and critical dimensions
- Surface finish or inspection requirement
STEP/STP, DXF, DWG, PDF, IGS/IGES or ZIP.
Confidential drawing review. NDA support available on request.
Frequently Asked Questions
Can 7075 Aluminum be machined with Sinker EDM?
Yes, when the feature is a blind cavity, rib, pocket, or internal form that a shaped electrode can reach from one side. 7075 Aluminum is electrically conductive and the final route follows the feature geometry and supplied condition.
What controls Sinker EDM on 7075 Aluminum?
The main process controls are electrode material, wear compensation, cavity depth, rib width, orbit strategy, debris evacuation, and rough-versus-finish electrodes. The 7075 Aluminum condition adds dimensional-stability and surface-integrity requirements.
What is the main risk?
For Sinker EDM, thin or asymmetric features can move after material removal. Orbit, local heating and electrode wear can shift wall size while dishing the floor during repeated burns on the same wall, floor and corner system; acceptance must focus on soft edges, unsupported webs and handling-sensitive faces. On 7075 Aluminum, the resulting defect can be rounded corners, floor-size error or fixture marking on a soft cavity. For 7075 Aluminum, support broad datums, limit handling pressure, and reserve the final low-energy pass for the functional geometry. Verify the floor, sidewalls and corner radii after the final finishing burn; document profile or cavity size, handling marks and soft-edge deformation for 7075 Aluminum.
What should I send for review?
Send the drawing, exact 7075 Aluminum condition, controlled geometry, tolerance, functional surface requirements, quantity, and inspection expectations. If any item is undecided, send what you have and we will help complete the review.
