4340 Alloy Steel Micro EDM Feasibility Review
4340 Alloy Steel can be machined with Micro EDM when the geometry matches micro holes, micro slots, miniature cavities, fine pins, and sub-millimeter precision details. 4340 Alloy Steel is a nickel-chromium-molybdenum steel used at high strength after quench-and-temper treatment; the supplied condition affects support, discharge energy, finishing, and inspection.
Quick Answer
Micro EDM is suitable for 4340 Alloy Steel when the feature is a micro hole, micro slot, miniature cavity, fine pin, or other sub-millimeter detail. The supplied condition must be stated before tolerance and surface requirements are confirmed.
Key Material Decisions
How This Material Behaves
A nickel-chromium-molybdenum steel used at high strength after quench-and-temper treatment. In Micro EDM, the supplied condition directly changes discharge stability, electrode wear, edge quality, and the finishing plan—especially at micro scale.
Choosing the Right Condition
Choose Micro EDM for micro holes, micro slots, miniature cavities, fine pins, and sub-millimeter precision details. State the exact 4340 Alloy Steel condition, then set tolerance, finish, support, and inspection from the controlled feature rather than the whole part.
Risks to Manage
For Micro EDM, highly stressed parts need explicit control of residual stress, recast and inspection datums. When the electrode, spark gap and material structure approach the feature scale, electrode wear, debris and spark-gap variation can move size and pitch together; the interaction is most important at fatigue-loaded edges and free-state datums. For 4340 Alloy Steel, this can produce feature drift accompanied by a surface layer that is unacceptable for cyclic loading. For 4340 Alloy Steel, balance material removal, use lower-energy finishing, and state the allowable recast or microcrack condition on service edges. Separate true geometry from edge rounding, residue and measurement uncertainty; document free-state geometry, recast and the fatigue-critical edge condition for 4340 Alloy Steel.
How Micro EDM Works on 4340 Alloy Steel

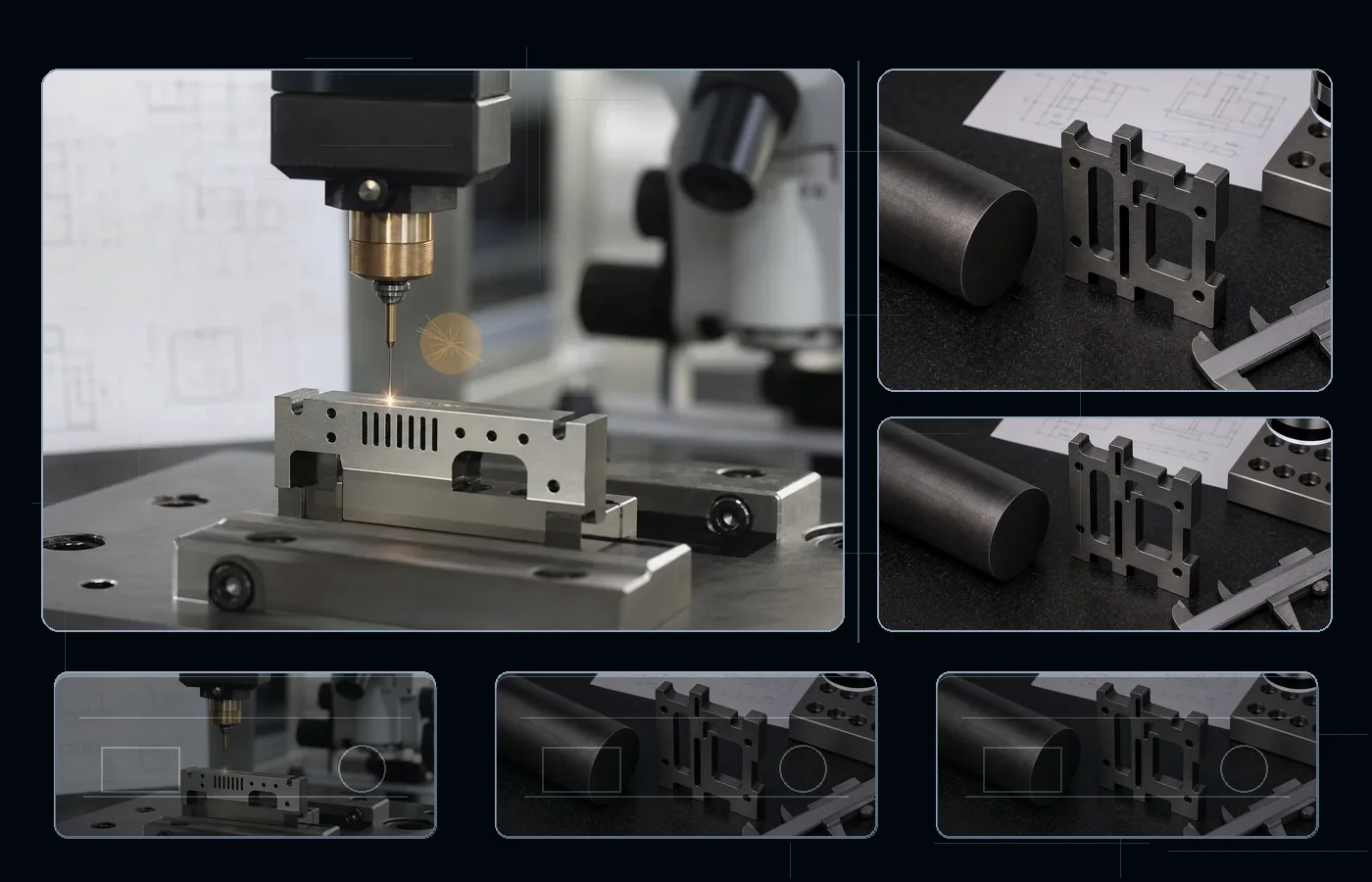

Micro EDM uses a very small electrode and low discharge energy to machine miniature features in 4340 Alloy Steel. Electrode wear, spark-gap stability, micro-flushing, temperature control and measurement resolution consume a significant share of the available tolerance. The local feature size and aspect ratio—not the overall workpiece size—must define the route.
Micro EDM Capability Reference
| What you're asking | What you can expect |
|---|---|
| Feature types | micro holes, micro slots, miniature cavities, fine pins, and sub-millimeter precision details |
| Tolerance | ±0.002–0.010 mm |
| Surface finish | Ra 0.1–1.6 μm |
| Feature scale | Sub-millimeter holes, slots, and cavities |
| Primary micro limit | Electrode wear and measurement resolution |
| Main limitation | Loose-tolerance or easily accessible features are rarely economical with Micro EDM. |
Material Condition Reference
| Condition | What to expect | Watch out for | Surface notes |
|---|---|---|---|
| annealed or normalized | Use economical roughing with stable support. | Soft sections can mark, bow, or release machining stress. | Protect exposed EDM faces from corrosion and reserve fine finishing for functional areas. |
| quenched and tempered | Sequence rough and finish cuts around the datum scheme. | Residual stress can move thin walls or narrow webs. | Use lower-energy finishing on fatigue and wear faces. |
| case-hardened or stress-relieved | Use conservative energy and stress-aware fixturing. | Hard edges can microcrack and retain a deeper white layer. | Apply trim passes or recast removal where fatigue or wear matters. |
How This Material Behaves
4340 is a nickel-chromium-molybdenum steel used at high strength and toughness. In EDM, this means hardened or highly stressed stock can move when asymmetric sections are released, while fatigue faces are sensitive to recast and microcracks. Plan stress relief before final finishing, support slender geometry, and specify surface-layer acceptance on load-bearing areas. For Micro EDM, highly stressed parts need explicit control of residual stress, recast and inspection datums. At micro scale, hardened condition, recast and measurement uncertainty all consume the same limited tolerance budget.
Surface Integrity and Post-Process
For Micro EDM on 4340 Alloy Steel, critical fatigue surfaces benefit from lower-energy finishing and a clear recast-layer requirement. Use low-energy finishing and account for electrode replacement or calibration before final sizing. Specify edge, recast and post-process requirements only on functional microfeatures, and use metrology that can distinguish true size from edge rounding and surface residue.
4340 Alloy Steel Micro EDM Checkpoints
- Confirm that the feature matches micro holes, micro slots, miniature cavities, fine pins, and sub-millimeter precision details.
- State the supplied condition: annealed or normalized, quenched and tempered, and case-hardened or stress-relieved.
- Mark the controlled dimensions, functional surfaces, datum scheme, and inspection method.
Typical Parts and Features
- high-strength inserts
- shafts and profiles
- fixtures
- micro holes
- micro slots
- miniature cavities
Limits and Better Alternatives
Main Limit
Loose-tolerance or easily accessible features are rarely economical with Micro EDM. On 4340 Alloy Steel, highly stressed parts need explicit control of residual stress, recast and inspection datums; the supplied condition still controls support, finishing, and surface-integrity review.
Consider Another Route When
Use conventional EDM for larger features, precision laser processing for suitable thin geometry, or mechanical micro-drilling where a tool can reach.
Practical Next Step
Send the 4340 Alloy Steel drawing with condition, controlled geometry, tolerance, functional surface callouts, quantity, and inspection requirements. If the route is unclear, we will compare Micro EDM with the adjacent EDM or conventional process.
Practical Takeaway
4340 Alloy Steel is compatible with Micro EDM when the feature matches the process access. The supplied condition determines support, finishing, surface control, and inspection.
Request a Machining Feasibility Review
Send material grade, drawing files, tolerance and quantity. We confirm process fit before quoting.
- Process: Micro EDM
- Material: 4340 Alloy Steel
- Drawing or part sketch
- Material grade
- Thickness / part size
- Quantity
- Tolerance and critical dimensions
- Surface finish or inspection requirement
STEP/STP, DXF, DWG, PDF, IGS/IGES or ZIP.
Confidential drawing review. NDA support available on request.
Frequently Asked Questions
Can 4340 Alloy Steel be machined with Micro EDM?
Yes, when the feature is a micro hole, micro slot, miniature cavity, fine pin, or other sub-millimeter detail. 4340 Alloy Steel is electrically conductive and the final route follows the feature geometry and supplied condition.
What controls Micro EDM on 4340 Alloy Steel?
The main process controls are electrode wear, feature-to-electrode ratio, micro-flushing, aspect ratio, edge radius, thermal stability, and measurement resolution. The 4340 Alloy Steel condition adds dimensional-stability and surface-integrity requirements.
What is the main risk?
For Micro EDM, highly stressed parts need explicit control of residual stress, recast and inspection datums. When the electrode, spark gap and material structure approach the feature scale, electrode wear, debris and spark-gap variation can move size and pitch together; the interaction is most important at fatigue-loaded edges and free-state datums. For 4340 Alloy Steel, this can produce feature drift accompanied by a surface layer that is unacceptable for cyclic loading. For 4340 Alloy Steel, balance material removal, use lower-energy finishing, and state the allowable recast or microcrack condition on service edges. Separate true geometry from edge rounding, residue and measurement uncertainty; document free-state geometry, recast and the fatigue-critical edge condition for 4340 Alloy Steel.
What should I send for review?
Send the drawing, exact 4340 Alloy Steel condition, controlled geometry, tolerance, functional surface requirements, quantity, and inspection expectations. If any item is undecided, send what you have and we will help complete the review.
