304 Stainless Steel Wire EDM Feasibility Review
304 Stainless Steel can be machined with Wire EDM when the geometry matches through profiles, precision slots, punches, inserts, cutouts, narrow webs, and tapered walls. 304 Stainless Steel is an austenitic stainless grade with good corrosion resistance and no hardening response from conventional heat treatment; the supplied condition affects support, discharge energy, finishing, and inspection.
Quick Answer
Wire EDM is suitable for 304 Stainless Steel when the wire can pass completely through the workpiece from an edge or a start hole. The supplied condition must be stated before tolerance and surface requirements are confirmed.
Key Material Decisions
How This Material Behaves
An austenitic stainless grade with good corrosion resistance and no hardening response from conventional heat treatment. In Wire EDM, the supplied condition changes stress release during the through cut, edge response to trim passes, and the final corrosion or surface-protection route.
Choosing the Right Condition
Choose Wire EDM for through profiles, precision slots, punches, inserts, cutouts, narrow webs, and tapered walls. State the exact 304 Stainless Steel condition, then set tolerance, finish, support, and inspection from the controlled feature rather than the whole part.
Risks to Manage
For Wire EDM, cold-worked areas and thin features can retain stress, while critical corrosion surfaces need a defined finish route. As the contour opens and the cut section loses restraint, the changing support condition can alter taper and datum position while the wire follows the programmed path; the interaction is most important at wetted, hygienic and contamination-sensitive surfaces. For 304 Stainless Steel, this can produce an accurate contour with contamination, heat tint or recast that remains unacceptable on a corrosion-critical face. For 304 Stainless Steel, use clean process conditions, low-energy finishing and a documented cleaning or passivation route for functional surfaces. Separate roughing acceptance from the final skim and free-state inspection; document geometry, residue, recast and final clean or passivated condition for 304 Stainless Steel.

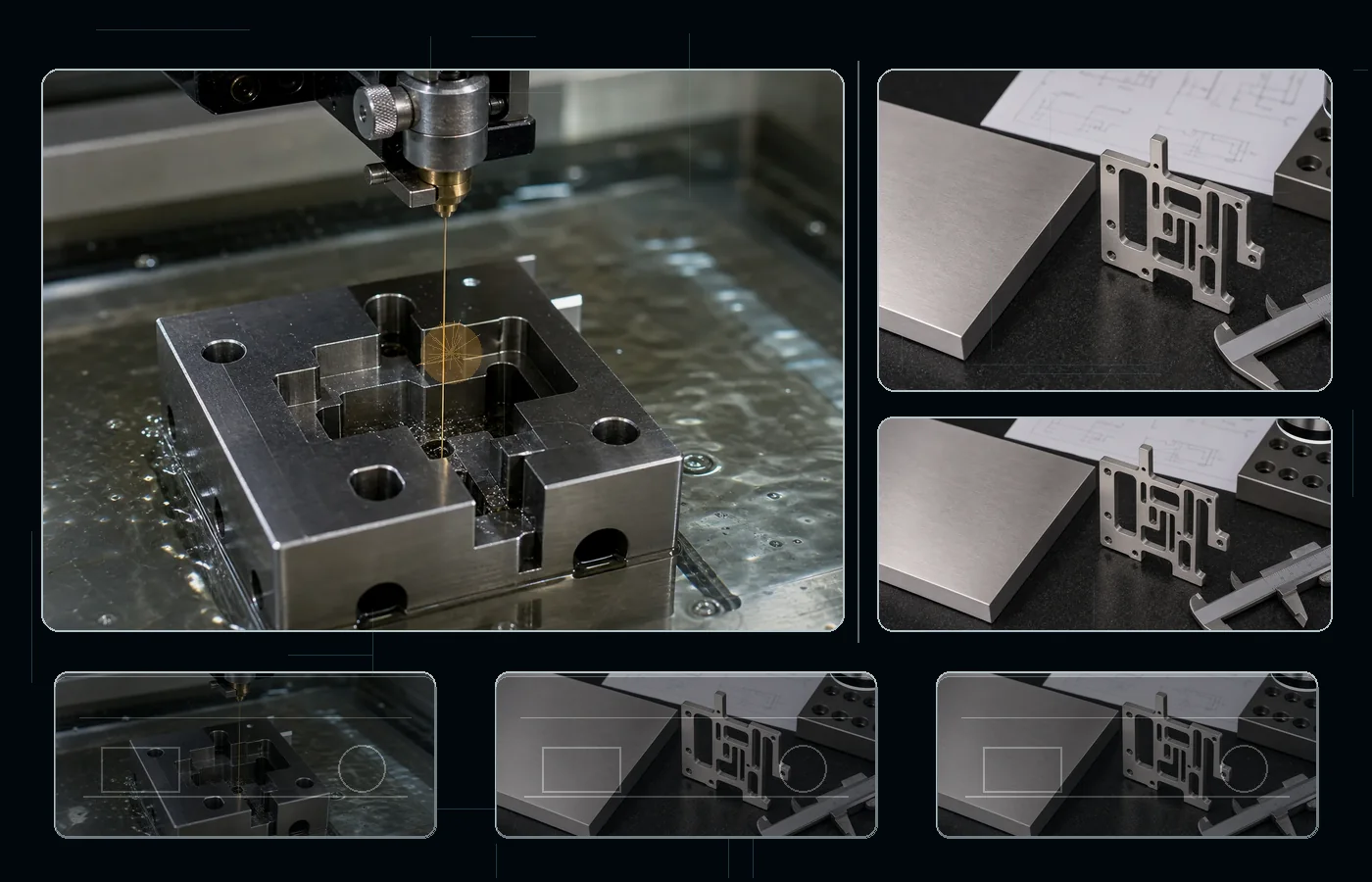

How Wire EDM Works on 304 Stainless Steel
Wire EDM removes 304 Stainless Steel along a continuous through-cut with a moving wire electrode. Wire tension, guide alignment, flushing and trim-pass offset control kerf, taper, verticality and internal corner radius as the profile opens. The route requires a complete wire path from an edge or start hole and does not produce blind cavities.
Wire EDM Capability Reference
| What you're asking | What you can expect |
|---|---|
| Feature types | through profiles, precision slots, punches, inserts, cutouts, narrow webs, and tapered walls |
| Tolerance | ±0.005–0.025 mm |
| Surface finish | Ra 0.2–3.2 μm |
| Wire diameter | 0.10–0.30 mm planning range |
| Minimum internal corner | Approximately wire radius plus spark gap |
| Main limitation | Blind cavities and closed pockets are not wire-cut features. |
Material Condition Reference
| Condition | What to expect | Watch out for | Surface notes |
|---|---|---|---|
| solution annealed | Use stable support and identify the final heat-treatment route. | Softer condition can mark or move under clamping. | Separate cosmetic roughness from corrosion and passivation requirements. |
| cold-worked | Control cold-work stress and finish energy. | Cold-worked or welded zones can distort unevenly. | Inspect corrosion, seal, and fatigue faces separately. |
| welded and stress-relieved | Use lower-energy finishing on hardened or aged faces. | A brittle recast layer or local heat tint can reduce corrosion and fatigue performance. | Use selective recast removal and passivation where required. |
How This Material Behaves
304 stainless steel is an austenitic, non-heat-treatable grade that can retain cold-work and welding stress. In EDM, this means thin sections may move as profiles open, and corrosion performance can be reduced by contaminated or poorly cleaned cut surfaces. Support cold-worked parts from stable datums, finish only functional faces, and specify post-EDM cleaning or passivation where required. For Wire EDM, cold-worked areas and thin features can retain stress, while critical corrosion surfaces need a defined finish route. On open profiles, heat-treatment or cold-work stress can shift straightness, while corrosion-critical cut faces still need controlled cleaning or passivation.
Surface Integrity and Post-Process
For Wire EDM on 304 Stainless Steel, sealing, fatigue and corrosion surfaces should separate roughness from recast-layer or passivation requirements. Separate the rough cut from skim cuts and apply the fine finish only to functional edges. Inspect roughness, edge rounding, recast and corrosion or fatigue requirements after the final pass; include polishing, coating or protection allowance wherever it changes final size.
304 Stainless Steel Wire EDM Checkpoints
- Confirm that the feature matches through profiles, precision slots, punches, inserts, cutouts, narrow webs, and tapered walls.
- State the supplied condition: solution annealed, cold-worked, and welded and stress-relieved.
- Mark the controlled dimensions, functional surfaces, datum scheme, and inspection method.
Typical Parts and Features
- corrosion-resistant inserts
- medical and laboratory components
- connector features
- punches and die inserts
- precision profile gauges
- gear and spline outlines
Limits and Better Alternatives
Main Limit
Blind cavities and closed pockets are not wire-cut features because the wire needs a continuous through path. On 304 Stainless Steel, cold-worked areas and thin features can retain stress, while critical corrosion surfaces need a defined finish route; the supplied condition still controls support, finishing, and surface-integrity review.
Consider Another Route When
Use Sinker EDM for blind cavities, CNC machining for accessible open geometry, or laser cutting when thin-sheet speed matters more than EDM edge quality.
Practical Next Step
Send the 304 Stainless Steel drawing with condition, controlled geometry, tolerance, functional surface callouts, quantity, and inspection requirements. If the route is unclear, we will compare Wire EDM with the adjacent EDM or conventional process.
Practical Takeaway
304 Stainless Steel is compatible with Wire EDM when the feature matches the process access. The supplied condition determines support, finishing, surface control, and inspection.
Request a Machining Feasibility Review
Send material grade, drawing files, tolerance and quantity. We confirm process fit before quoting.
- Process: Wire EDM
- Material: 304 Stainless Steel
- Drawing or part sketch
- Material grade
- Thickness / part size
- Quantity
- Tolerance and critical dimensions
- Surface finish or inspection requirement
STEP/STP, DXF, DWG, PDF, IGS/IGES or ZIP.
Confidential drawing review. NDA support available on request.
Frequently Asked Questions
Can 304 Stainless Steel be machined with Wire EDM?
Yes, when the wire can pass completely through the workpiece from an edge or a start hole. 304 Stainless Steel is electrically conductive and the final route follows the feature geometry and supplied condition.
What controls Wire EDM on 304 Stainless Steel?
The main process controls are wire diameter, kerf compensation, flushing, wire tension, guide alignment, taper control, and trim-pass stability. The 304 Stainless Steel condition adds dimensional-stability and surface-integrity requirements.
What is the main risk?
For Wire EDM, cold-worked areas and thin features can retain stress, while critical corrosion surfaces need a defined finish route. As the contour opens and the cut section loses restraint, the changing support condition can alter taper and datum position while the wire follows the programmed path; the interaction is most important at wetted, hygienic and contamination-sensitive surfaces. For 304 Stainless Steel, this can produce an accurate contour with contamination, heat tint or recast that remains unacceptable on a corrosion-critical face. For 304 Stainless Steel, use clean process conditions, low-energy finishing and a documented cleaning or passivation route for functional surfaces. Separate roughing acceptance from the final skim and free-state inspection; document geometry, residue, recast and final clean or passivated condition for 304 Stainless Steel.
What should I send for review?
Send the drawing, exact 304 Stainless Steel condition, controlled geometry, tolerance, functional surface requirements, quantity, and inspection expectations. If any item is undecided, send what you have and we will help complete the review.
