300M Alloy Steel Wire EDM Feasibility Review
300M Alloy Steel can be machined with Wire EDM when the geometry matches through profiles, precision slots, punches, inserts, cutouts, narrow webs, and tapered walls. 300M Alloy Steel is an ultra-high-strength modified 4340-type steel normally used in a carefully controlled heat-treated condition; the supplied condition affects support, discharge energy, finishing, and inspection.
Quick Answer
Wire EDM is suitable for 300M Alloy Steel when the wire can pass completely through the workpiece from an edge or a start hole. The supplied condition must be stated before tolerance and surface requirements are confirmed.
Key Material Decisions
How This Material Behaves
An ultra-high-strength modified 4340-type steel normally used in a carefully controlled heat-treated condition. In Wire EDM, the supplied condition changes stress release during the through cut, edge response to trim passes, and the final corrosion or surface-protection route.
Choosing the Right Condition
Choose Wire EDM for through profiles, precision slots, punches, inserts, cutouts, narrow webs, and tapered walls. State the exact 300M Alloy Steel condition, then set tolerance, finish, support, and inspection from the controlled feature rather than the whole part.
Risks to Manage
For Wire EDM, residual stress, fatigue-critical surfaces and recast control dominate over nominal conductivity. Offset compensation may remain correct at the top while the released section moves or the lower edge trails during a long profile or narrow-web release, especially around fatigue-loaded edges and free-state datums. The practical failure in 300M Alloy Steel is free-state profile movement plus a recast-sensitive fatigue edge. For 300M Alloy Steel, balance material removal, use lower-energy finishing, and state the allowable recast or microcrack condition on service edges. Verify the top and bottom contour after the part is fully released; document free-state geometry, recast and the fatigue-critical edge condition for 300M Alloy Steel.

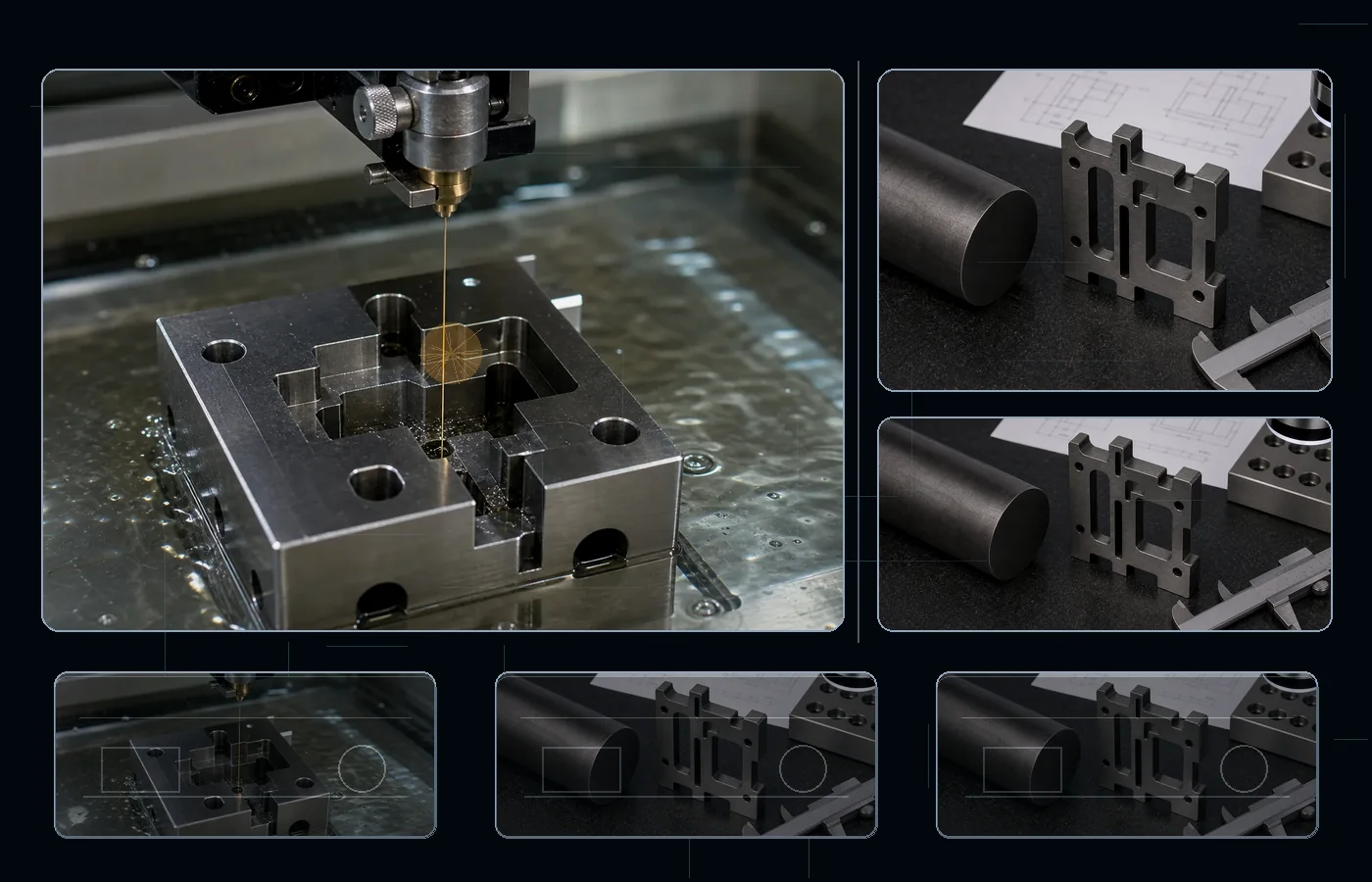

How Wire EDM Works on 300M Alloy Steel
Wire EDM removes 300M Alloy Steel along a continuous through-cut with a moving wire electrode. Wire tension, guide alignment, flushing and trim-pass offset control kerf, taper, verticality and internal corner radius as the profile opens. The route requires a complete wire path from an edge or start hole and does not produce blind cavities.
Wire EDM Capability Reference
| What you're asking | What you can expect |
|---|---|
| Feature types | through profiles, precision slots, punches, inserts, cutouts, narrow webs, and tapered walls |
| Tolerance | ±0.005–0.025 mm |
| Surface finish | Ra 0.2–3.2 μm |
| Wire diameter | 0.10–0.30 mm planning range |
| Minimum internal corner | Approximately wire radius plus spark gap |
| Main limitation | Blind cavities and closed pockets are not wire-cut features. |
Material Condition Reference
| Condition | What to expect | Watch out for | Surface notes |
|---|---|---|---|
| annealed or normalized | Soft stock can move if a large cavity is removed without balanced support. | Leave finishing allowance when later heat treatment will change the surface. | |
| quenched and tempered | Use conservative finishing and stress-aware sequencing. | Recast and tensile residual stress can reduce fatigue performance. | Fatigue-critical faces need explicit white-layer control and post-EDM finishing. |
| stress-relieved after machining | Preserve the stress-relieved condition with low-energy finishing. | Local reheating, edge microcracks, or uneven recast can become stress concentrators. | Inspect and remove the affected layer where the drawing identifies fatigue-critical surfaces. |
How This Material Behaves
300M is an ultra-high-strength alloy steel used where fatigue performance is critical. In EDM, this means residual stress release and a brittle recast layer can compromise thin sections or load-bearing edges even when the profile is accurate. Use a stress-aware cut sequence, low-energy finishing, and require recast removal or metallographic verification on fatigue-critical faces. For Wire EDM, residual stress, fatigue-critical surfaces and recast control dominate over nominal conductivity. On long or asymmetric profiles, heat-treatment stress can release during the cut and move the final datum relationship.
Surface Integrity and Post-Process
For Wire EDM on 300M Alloy Steel, critical fatigue surfaces benefit from lower-energy finishing and a clear recast-layer requirement. Separate the rough cut from skim cuts and apply the fine finish only to functional edges. Inspect roughness, edge rounding, recast and corrosion or fatigue requirements after the final pass; include polishing, coating or protection allowance wherever it changes final size.
300M Alloy Steel Wire EDM Checkpoints
- Confirm that the feature matches through profiles, precision slots, punches, inserts, cutouts, narrow webs, and tapered walls.
- State the supplied condition: annealed or normalized, quenched and tempered, and stress-relieved after machining.
- Mark the controlled dimensions, functional surfaces, datum scheme, and inspection method.
Typical Parts and Features
- high-strength inserts
- shafts and profiles
- fixtures
- punches and die inserts
- precision profile gauges
- gear and spline outlines
Limits and Better Alternatives
Main Limit
Blind cavities and closed pockets are not wire-cut features because the wire needs a continuous through path. On 300M Alloy Steel, residual stress, fatigue-critical surfaces and recast control dominate over nominal conductivity; the supplied condition still controls support, finishing, and surface-integrity review.
Consider Another Route When
Use Sinker EDM for blind cavities, CNC machining for accessible open geometry, or laser cutting when thin-sheet speed matters more than EDM edge quality.
Practical Next Step
Send the 300M Alloy Steel drawing with condition, controlled geometry, tolerance, functional surface callouts, quantity, and inspection requirements. If the route is unclear, we will compare Wire EDM with the adjacent EDM or conventional process.
Practical Takeaway
300M Alloy Steel is compatible with Wire EDM when the feature matches the process access. The supplied condition determines support, finishing, surface control, and inspection.
Additional Project Information
Include application, destination and end-use notes together with the material, quantity and drawing requirements.
Project Details for Technical Review
Include application and end-use notes when they affect material, inspection, documentation, or export review.
- Process: Wire EDM
- Material: 300M Alloy Steel
- Drawing or part sketch
- Material grade
- Thickness / part size
- Quantity
- Tolerance and critical dimensions
- Surface finish or inspection requirement
STEP/STP, DXF, DWG, PDF, IGS/IGES or ZIP.
Confidential drawing review. NDA support available on request.
Frequently Asked Questions
Can 300M Alloy Steel be machined with Wire EDM?
Yes, when the wire can pass completely through the workpiece from an edge or a start hole. 300M Alloy Steel is electrically conductive and the final route follows the feature geometry and supplied condition.
What controls Wire EDM on 300M Alloy Steel?
The main process controls are wire diameter, kerf compensation, flushing, wire tension, guide alignment, taper control, and trim-pass stability. The 300M Alloy Steel condition adds dimensional-stability and surface-integrity requirements.
What is the main risk?
For Wire EDM, residual stress, fatigue-critical surfaces and recast control dominate over nominal conductivity. Offset compensation may remain correct at the top while the released section moves or the lower edge trails during a long profile or narrow-web release, especially around fatigue-loaded edges and free-state datums. The practical failure in 300M Alloy Steel is free-state profile movement plus a recast-sensitive fatigue edge. For 300M Alloy Steel, balance material removal, use lower-energy finishing, and state the allowable recast or microcrack condition on service edges. Verify the top and bottom contour after the part is fully released; document free-state geometry, recast and the fatigue-critical edge condition for 300M Alloy Steel.
What should I send for review?
Send the drawing, exact 300M Alloy Steel condition, controlled geometry, tolerance, functional surface requirements, quantity, and inspection expectations. If any item is undecided, send what you have and we will help complete the review.
