1018 Carbon Steel Sinker EDM Feasibility Review
1018 Carbon Steel can be machined with Sinker EDM when the geometry matches blind cavities, ribs, shaped pockets, mold details, deep forms, and internal geometry that a traveling wire cannot reach. 1018 Carbon Steel is low-carbon steel with good conductivity and low hardenability; the supplied condition affects support, discharge energy, finishing, and inspection.
Quick Answer
Sinker EDM is suitable for 1018 Carbon Steel when the feature is a blind cavity, rib, pocket, or internal form that a shaped electrode can reach from one side. The supplied condition must be stated before tolerance and surface requirements are confirmed.
Key Material Decisions
How This Material Behaves
Low-carbon steel with good conductivity and low hardenability. In Sinker EDM, the supplied condition changes electrode wear, cavity-floor consistency, corner growth, and the finishing strategy—especially on deep ribs and textured surfaces.
Choosing the Right Condition
Choose Sinker EDM for blind cavities, ribs, shaped pockets, mold details, deep forms, and internal geometry that a traveling wire cannot reach. State the exact 1018 Carbon Steel condition, then set tolerance, finish, support, and inspection from the controlled feature rather than the whole part.
Risks to Manage
For Sinker EDM, soft cavity walls and floors are more vulnerable to support marks, edge rounding and flash rust, so the finish electrode and post-cut protection should be planned together. Debris retention and electrode wear can change the root, wall and floor at different rates during repeated burns on the same wall, floor and corner system; acceptance must focus on released geometry and freshly cut surfaces. On 1018 Carbon Steel, the resulting defect can be a shifted wall or rounded floor followed by flash rust before final inspection. For 1018 Carbon Steel, stabilize the part without excessive clamp pressure, finish from a released datum, and protect newly exposed surfaces immediately. Verify the floor, sidewalls and corner radii after the final finishing burn; document free-state geometry and early corrosion on the fresh cut surface for 1018 Carbon Steel.
How Sinker EDM Works on 1018 Carbon Steel

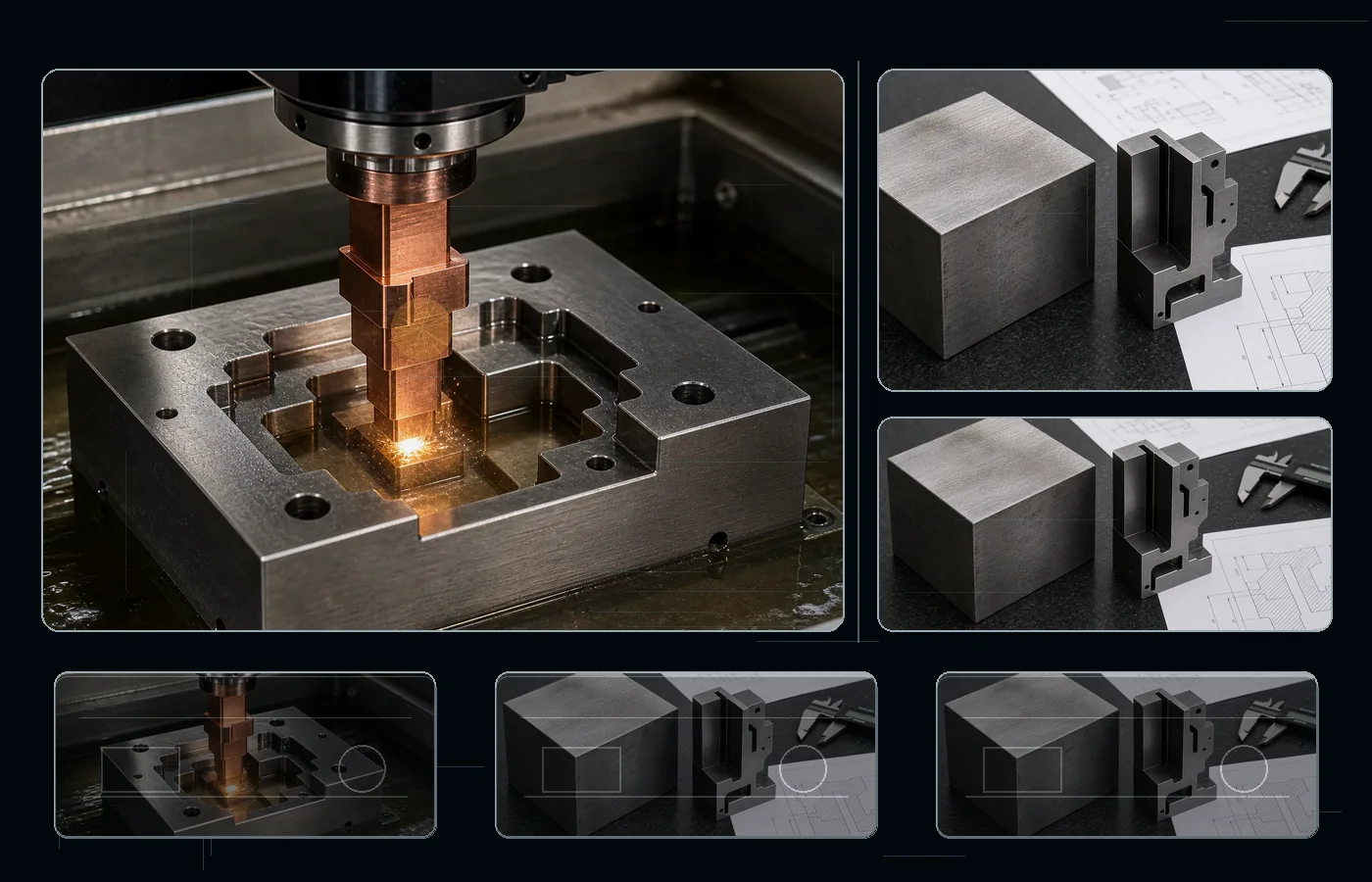

Sinker EDM reproduces a shaped electrode as a blind cavity in 1018 Carbon Steel. Electrode material, wear, orbit, pulse energy and debris evacuation control wall size, floor depth, corner definition and surface condition. Where final size or texture is critical, roughing and finishing electrodes should be planned as separate operations.
Sinker EDM Capability Reference
| What you're asking | What you can expect |
|---|---|
| Feature types | blind cavities, ribs, shaped pockets, mold details, deep forms, and internal geometry that a traveling wire cannot reach |
| Tolerance | ±0.008–0.030 mm |
| Surface finish | Ra 0.2–6.3 μm |
| Electrode choice | Graphite or copper selected from cavity, finish, and wear needs |
| Primary cavity limit | Depth, rib width, access, and debris evacuation |
| Main limitation | Electrode access and debris evacuation limit deep, narrow blind geometry. |
Material Condition Reference
| Condition | What to expect | Watch out for | Surface notes |
|---|---|---|---|
| cold-finished | Use economical roughing with stable support. | Soft sections can mark, bow, or release machining stress. | Protect exposed EDM faces from corrosion and reserve fine finishing for functional areas. |
| annealed | Sequence rough and finish cuts around the datum scheme. | Residual stress can move thin walls or narrow webs. | Use lower-energy finishing on fatigue and wear faces. |
| stress-relieved after rough machining | Use conservative energy and stress-aware fixturing. | Hard edges can microcrack and retain a deeper white layer. | Apply trim passes or recast removal where fatigue or wear matters. |
How This Material Behaves
1018 is a soft low-carbon steel with good conductivity and low hardenability. In EDM, this means clamp marks, thin-wall movement, and rapid rusting of fresh cut faces often matter more than spark stability. Support the part from broad datums, balance cuts on slender sections, and apply corrosion protection immediately after final inspection. For Sinker EDM, soft cavity walls and floors are more vulnerable to support marks, edge rounding and flash rust, so the finish electrode and post-cut protection should be planned together.
Surface Integrity and Post-Process
For Sinker EDM on 1018 Carbon Steel, use low-energy finish burns for functional edges and protect finished surfaces from corrosion during storage. Use roughing and finishing electrodes separately where cavity size or texture is controlled. Apply polishing, lapping or recast removal only to named functional faces, and inspect wall, floor and corner condition after the final surface operation.
1018 Carbon Steel Sinker EDM Checkpoints
- Confirm that the feature matches blind cavities, ribs, shaped pockets, mold details, deep forms, and internal geometry that a traveling wire cannot reach.
- State the supplied condition: cold-finished, annealed, and stress-relieved after rough machining.
- Mark the controlled dimensions, functional surfaces, datum scheme, and inspection method.
Typical Parts and Features
- fixture plates
- tooling supports
- wear components
- mold cavities
- blind pockets
- deep ribs
Limits and Better Alternatives
Main Limit
Electrode access and debris evacuation limit deep, narrow blind geometry. On 1018 Carbon Steel, soft sections can move under poor clamping and exposed cut faces rust readily; the supplied condition still controls support, finishing, and surface-integrity review.
Consider Another Route When
Use Wire EDM for through profiles, CNC machining for open cavities with tool access, or grinding for simple flat precision surfaces.
Practical Next Step
Send the 1018 Carbon Steel drawing with condition, controlled geometry, tolerance, functional surface callouts, quantity, and inspection requirements. If the route is unclear, we will compare Sinker EDM with the adjacent EDM or conventional process.
Practical Takeaway
1018 Carbon Steel is compatible with Sinker EDM when the feature matches the process access. The supplied condition determines support, finishing, surface control, and inspection.
Request a Machining Feasibility Review
Send material grade, drawing files, tolerance and quantity. We confirm process fit before quoting.
- Process: Sinker EDM
- Material: 1018 Carbon Steel
- Drawing or part sketch
- Material grade
- Thickness / part size
- Quantity
- Tolerance and critical dimensions
- Surface finish or inspection requirement
STEP/STP, DXF, DWG, PDF, IGS/IGES or ZIP.
Confidential drawing review. NDA support available on request.
Frequently Asked Questions
Can 1018 Carbon Steel be machined with Sinker EDM?
Yes, when the feature is a blind cavity, rib, pocket, or internal form that a shaped electrode can reach from one side. 1018 Carbon Steel is electrically conductive and the final route follows the feature geometry and supplied condition.
What controls Sinker EDM on 1018 Carbon Steel?
The main process controls are electrode material, wear compensation, cavity depth, rib width, orbit strategy, debris evacuation, and rough-versus-finish electrodes. The 1018 Carbon Steel condition adds dimensional-stability and surface-integrity requirements.
What is the main risk?
For Sinker EDM, soft cavity walls and floors are more vulnerable to support marks, edge rounding and flash rust, so the finish electrode and post-cut protection should be planned together. Debris retention and electrode wear can change the root, wall and floor at different rates during repeated burns on the same wall, floor and corner system; acceptance must focus on released geometry and freshly cut surfaces. On 1018 Carbon Steel, the resulting defect can be a shifted wall or rounded floor followed by flash rust before final inspection. For 1018 Carbon Steel, stabilize the part without excessive clamp pressure, finish from a released datum, and protect newly exposed surfaces immediately. Verify the floor, sidewalls and corner radii after the final finishing burn; document free-state geometry and early corrosion on the fresh cut surface for 1018 Carbon Steel.
What should I send for review?
Send the drawing, exact 1018 Carbon Steel condition, controlled geometry, tolerance, functional surface requirements, quantity, and inspection expectations. If any item is undecided, send what you have and we will help complete the review.
