Application Review
Micro EDM for Watch & Jewelry Components
Micro EDM is useful in Watch & Jewelry Components when the named feature matches micro hole, micro slot, miniature cavity, or fine pin. The decision depends on micro profiles, fine surface quality, controlled kerf and careful handling of valuable material, the material condition, and the inspection method—not on the application name alone.
Quick Answer
Choose Micro EDM for Watch & Jewelry Components when the feature is a micro hole, micro slot, miniature cavity, fine pin, or other sub-millimeter detail. Plan the route around finish, kerf, scrap handling, security, because the main production risk is surface marking, excess kerf loss or uncontrolled handling of valuable cut-off material.
Key Application Decisions
What's at Stake
In Watch & Jewelry Components, the feature must support micro profiles, fine surface quality, controlled kerf and careful handling of valuable material. Micro EDM removes the feature without cutting force, but the main service risk remains surface marking, excess kerf loss or uncontrolled handling of valuable cut-off material. The process is justified only when its access and surface behavior solve that specific problem.
How to Get It Right
Use Micro EDM for micro hole, micro slot, miniature cavity, or fine pin. On the drawing, state material and condition, the controlled feature, datum, functional surfaces, and finish, kerf, scrap handling, security. Select the material from the industry priorities below rather than from a generic conductive-material list.
What Can Go Wrong
If the feature can be made more simply by another process, Micro EDM adds cost without improving function. If it is selected correctly but electrode wear, feature-to-electrode ratio, micro-flushing, aspect ratio, edge radius, thermal stability, and measurement resolution are not planned, the feature can round, drift, or become impossible to verify when electrode wear and measurement resolution consume the tolerance. In Watch & Jewelry Components, the result may be a rejected datum, damaged functional edge, unstable fit, or failed application-specific inspection.
How EDM Fits the Application
Micro EDM combines a very small electrode with low discharge energy and no cutting force. For Watch & Jewelry Components, that connects directly to micro profiles, fine surface quality, controlled kerf and careful handling of valuable material: miniature slots, holes, corners, or datum features can be made without a cutter bending the part or consuming the geometry with its own radius. The slower process is justified when electrode wear, edge quality, and metrology are controlled tightly enough to prevent surface marking, excess kerf loss or uncontrolled handling of valuable cut-off material.
Micro EDM Capability Reference
| What you're asking | What you can expect |
|---|---|
| Feature types | micro holes, micro slots, miniature cavities, fine pins, and sub-millimeter precision details |
| Tolerance | ±0.002–0.010 mm |
| Surface finish | Ra 0.1–1.6 μm |
| Feature scale | Sub-millimeter holes, slots, and cavities |
| Primary micro limit | Electrode wear and measurement resolution |
| Main limitation | Loose-tolerance or easily accessible features are rarely economical with Micro EDM. |
Watch & Jewelry Components Application Planning
| What matters | What to expect |
|---|---|

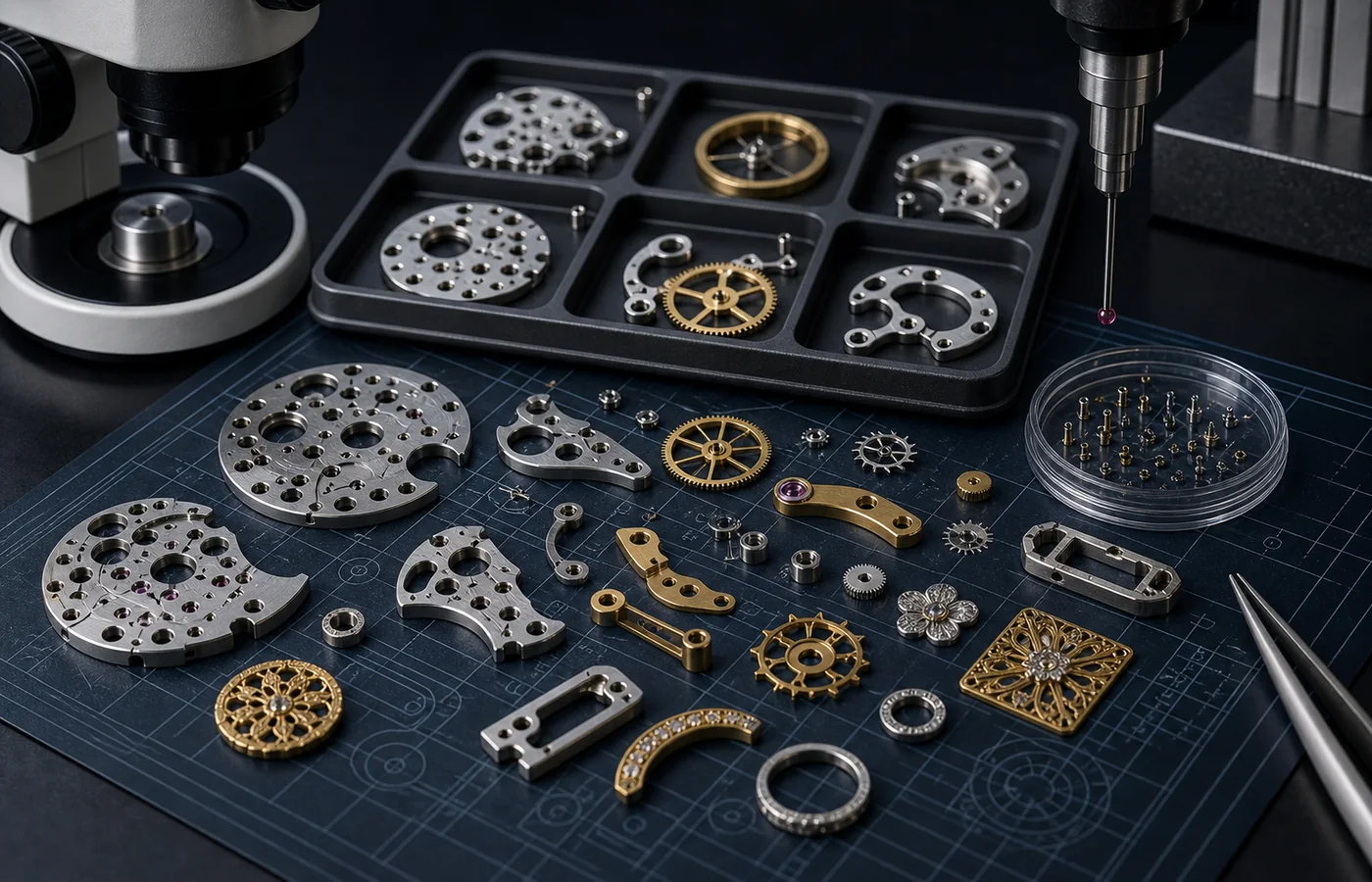

| Typical parts | watch movement details, precious-metal profiles, micro decorative features, and small functional inserts |
| Functional requirement | micro profiles, fine surface quality, controlled kerf and careful handling of valuable material |
| Main failure risk | surface marking, excess kerf loss or uncontrolled handling of valuable cut-off material |
| Inspection focus | finish, kerf, scrap handling, security |
| Planning context | Micro profiles are commonly planned in the ±0.005–0.020 mm range, with kerf, finish and material recovery treated as separate requirements. |
Application Context
Material choice for Watch & Jewelry Components should follow fine detail, cosmetic finish, corrosion, color, and delicate edge control, not a generic list of conductive alloys. 316L / 904L stainless: use it for corrosion-resistant cases and fine details; cosmetic surfaces need post-EDM finishing. Titanium Grade 2 / Grade 5: use it for lightweight premium components; surface contamination and finishing route matter. Gold / platinum alloys: use it for precious-metal microfeatures; material cost and scrap recovery dominate planning. Brass / copper alloys: use it for prototypes, decorative parts, and conductive details; soft edges and tarnish need handling control. The selected grade must also suit the Micro EDM access and inspection plan. If the material is undecided, send the drawing and service conditions so the alternatives can be compared before quotation.
Functional Surface and Edge Control
For Micro EDM in Watch & Jewelry Components, inspect the named functional feature rather than the whole part. Separate geometry from edge or surface acceptance, and focus on finish, kerf, scrap handling, security. The release route should address surface marking, excess kerf loss or uncontrolled handling of valuable cut-off material.
Watch & Jewelry Components Buyer Checkpoints
- Identify which Micro EDM feature controls micro profiles, fine surface quality, controlled kerf and careful handling of valuable material.
- Define the datum and inspection method for finish, kerf, scrap handling, security.
- State material condition, functional surfaces, quantity, drawing revision, and documentation needs before quotation.
Common Applications
- watch movement details
- precious-metal profiles
- micro decorative features
- small functional inserts
Limits and Better Alternatives
Main Limit
Micro EDM is not the right route when the Watch & Jewelry Components feature does not match micro holes, micro slots, miniature cavities, fine pins, and sub-millimeter precision details.
Consider Another Route When
Use conventional EDM for larger features, precision laser processing for suitable thin geometry, or mechanical micro-drilling where a tool can reach.
Practical Next Step
For an EDM review of Watch & Jewelry Components, send the drawing, material and condition, the Micro EDM feature, tolerance, functional surfaces, quantity, and the inspection or documentation requirements.
Practical Takeaway
For Watch & Jewelry Components, use Micro EDM only where its access and surface behavior solve the actual feature problem. Release the material, functional surfaces, and finish, kerf, scrap handling, security together.
Check If This Applies to Your Project
Send application notes and a drawing for a project-specific feasibility check.
- Process: Micro EDM
- Application: Watch & Jewelry Components
- Drawing or part sketch
- Material grade
- Thickness / part size
- Quantity
- Tolerance and critical dimensions
- Surface finish or inspection requirement
